Product Information

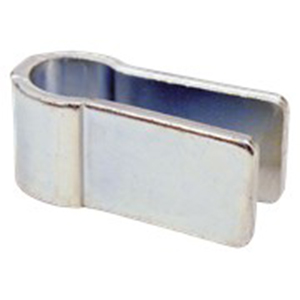

Use for mounting spindles on solid-arm clamps. Weld-on bolt retainer at desired arm length and spindle angle. Available to fit spindle sizes from 1/4-20 to 5/8-11 (M6 to M16 in metric).
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1008, 1010, or 1018 steel | - | Zinc Plated Clear Chromate | ✔ | ✔ |
Parts Specification

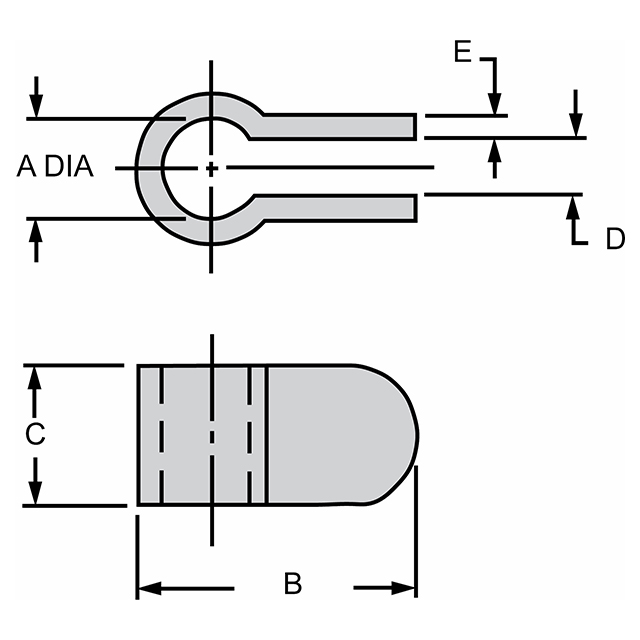

| Part Number | SPINDLE SIZE | A DIA | B | C | D | E |
| CL-316000-BR-PACKOF2 | 3/8-16 or M10 | 17/32 | 1-1/2 | 3/4 | 5/16 | 1/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
M10
Diameter (Inch):
17/32"
Diameter (Decimal Inch):
0.5300"
Diameter (mm):
13.49mm
