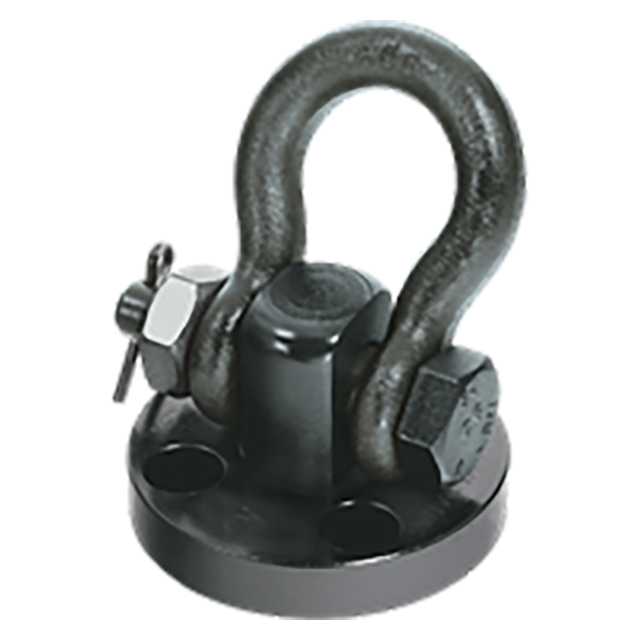

Shackle Hoist Rings
These swivel hoist rings are designed for permanent mounting on tooling and equipment. Forged alloy-steel shackle pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Can be bolted or welded in place. Made in USA.
Installation
Fasten with four grade-8 socket-head cap screws. Alternatively, install by welding around the entire perimeter of the base (certified welding). Always install so that the hoist ring can pivot and swivel freely.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH |
| Shackle Hoist Rings | Alloy Steel | Heat Treated | Black Oxide finish |
Parts Specification
| Load Rating (lbs) | Nominal Shackle Size (inch) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G (inch) | H Dia (inch) | J (inch) | K Dia (inch) | L Thread X Length (inch) |
| 2000 lbs | 3/8" | 1.03" | 2.96" | 1.78" | .38" | 1.43" | .40" | .91" | 1.56" | 2.17" | 2.10" | 1/4-20 x 1/2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
