Ball Detent
Press-in receptacle that provides a perfect mating hole for a Ball Plunger. The 90° point provides smooth detent action and reliable retention. These hardened receptacles resist side loads to prevent wear to the parent Material. Made in USA.

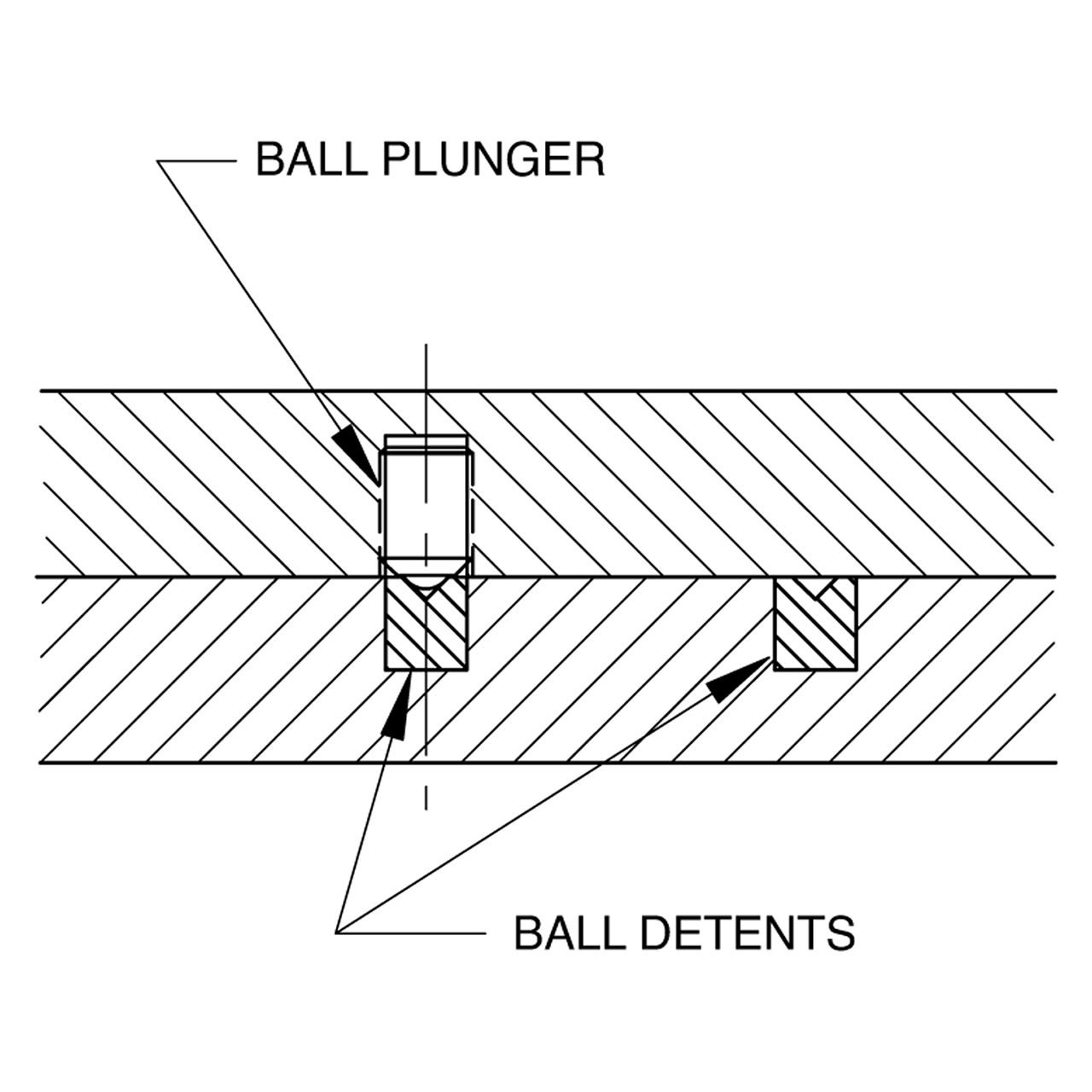

Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 440 Stainless Steel | Yes | Heat Treated | Yes | Yes |

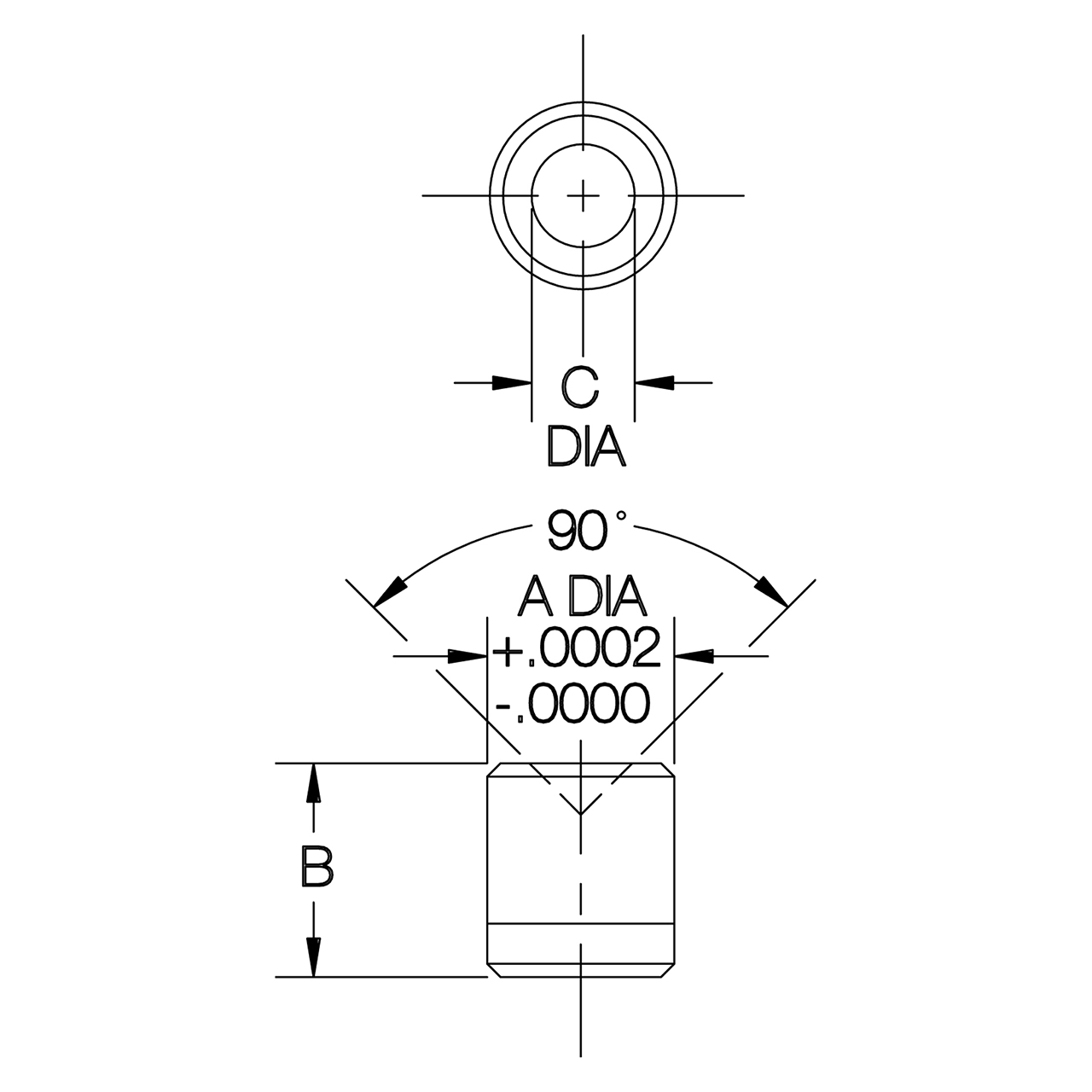

Parts Specification
| A Diameter (Inch) | B (Inch) | C Diameter (Inch) |
| 0.2659" | 5/16" | 0.139" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Decimal Inch):
0.2659"
Thread Size:
M8
Diameter (Inch):
1/4"
Diameter (mm):
6.75mm
