Carr Lane CL-500500600-TTBB | 500mm Size Two-Sided Tooling Block

$4,316.91
Brand:
Carr Lane
Size:
500.00mm
SKU:
50013969
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Two-Sided Tooling Blocks-Blank

Precision blank tooling blocks for horizontal-machining-center pallets. One-piece cast iron construction provides superior accuracy, dimensional stability, and vibration dampening. Both tooling faces are Finish machined to tight tolerances and qualified to the base. Dual mounting capability allows both JIS mounting (locating from two reference edges) and DIN mounting (locating from center and radial holes) with excellent accuracy. Universal mounting holes fit almost any inch or metric slot spacing.

Application Information

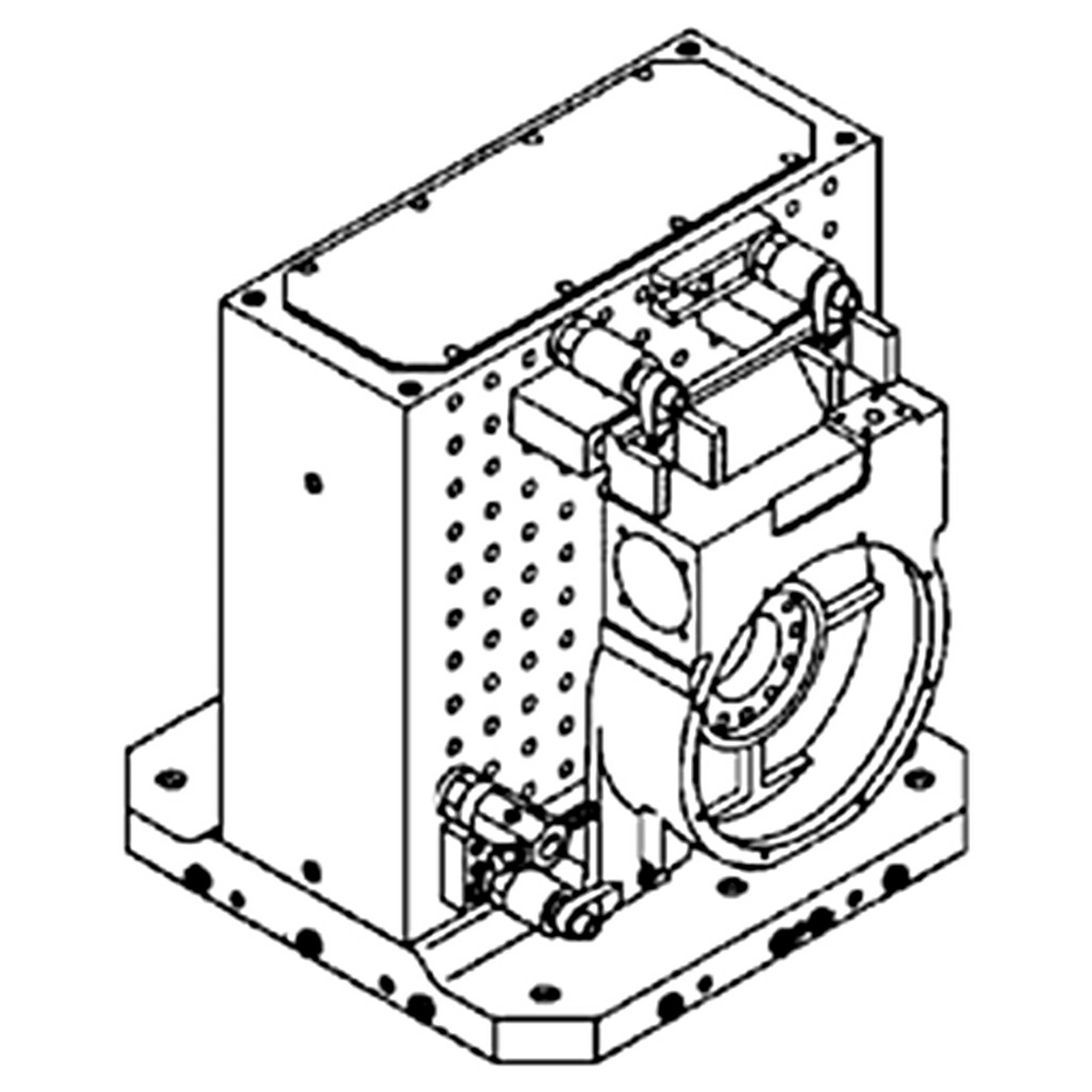

These tooling blocks have four identical faces, ideal for loading a large number of medium-size parts on a pallet.

Dual Mounting Capability

JIS Mounting

DIN Mounting

Dual mounting capability allows both JIS mounting (locating from two reference edges) and DIN mounting (locating from center and radial holes) with excellent accuracy.

Material

Material Heat Treat Finish DFARS RoHS
Gray Cast Iron - ASTM Class 45 Yes Yes

Parts Specification

B Pallet Size NominalB Pallet Size ActualA Height NominalA Height ActualC NominalC ActualD1D2EFGHNo. Of Mounting HolesWeight (lbs)
500mm19.6850600mm23.62200mm7.8740400mm169.842575mm1.9719.695584 lbs

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
