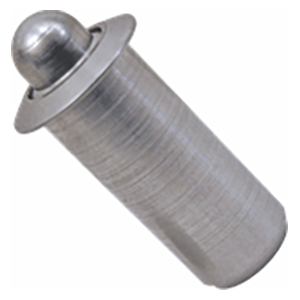

Product Information
Simple, economical spring-loaded plunger ideal for installation in softer materials, such as aluminium, wood, or plastic. Use when a threaded hole would be impractical or when adjustment is not required. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess the shoulder. The version shown here has a stainless steel body and plunger nose for extra corrosion resistance. Available in six body diameters from 1/8" to 1/2", each with a choice of light or heavy spring force. Made in USA.

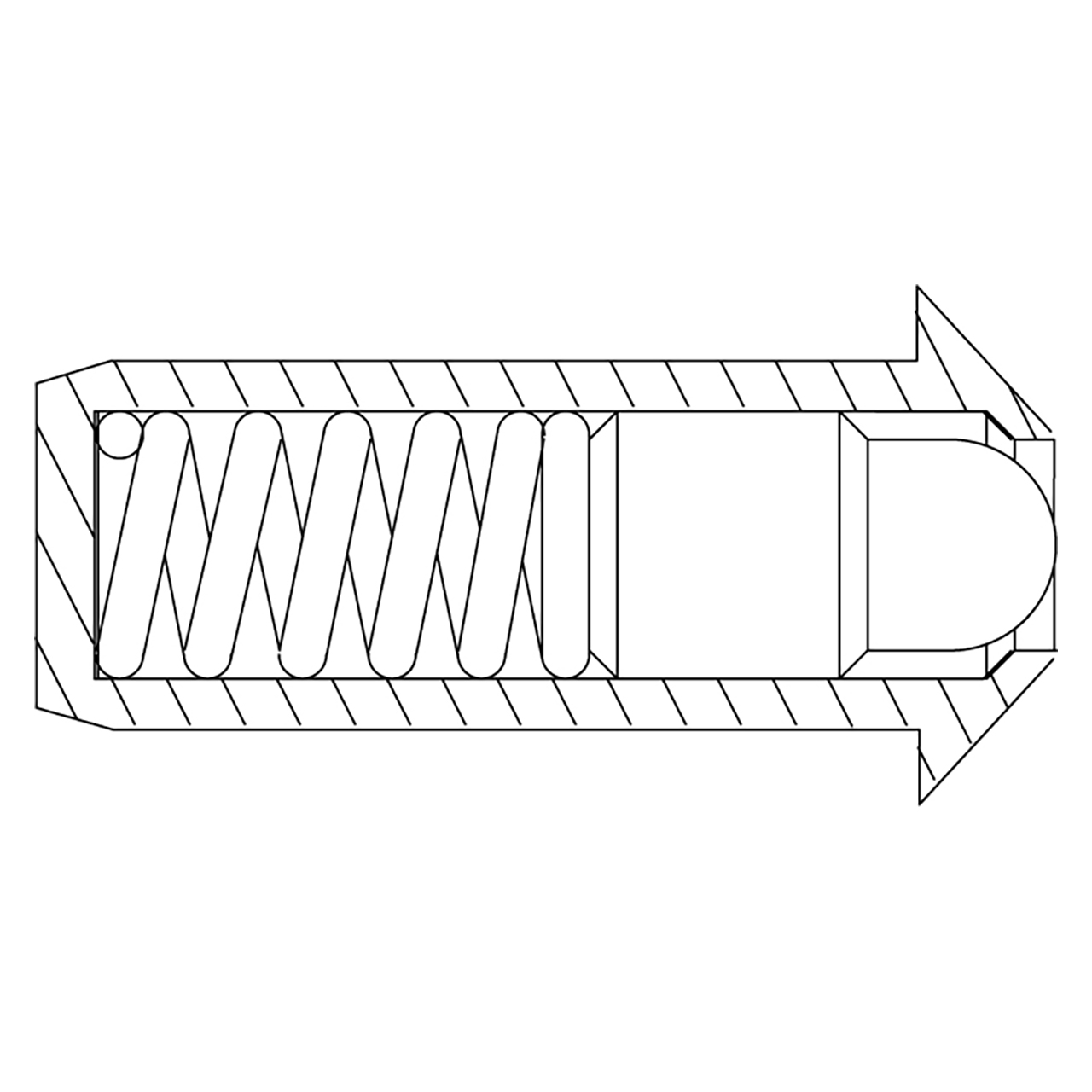

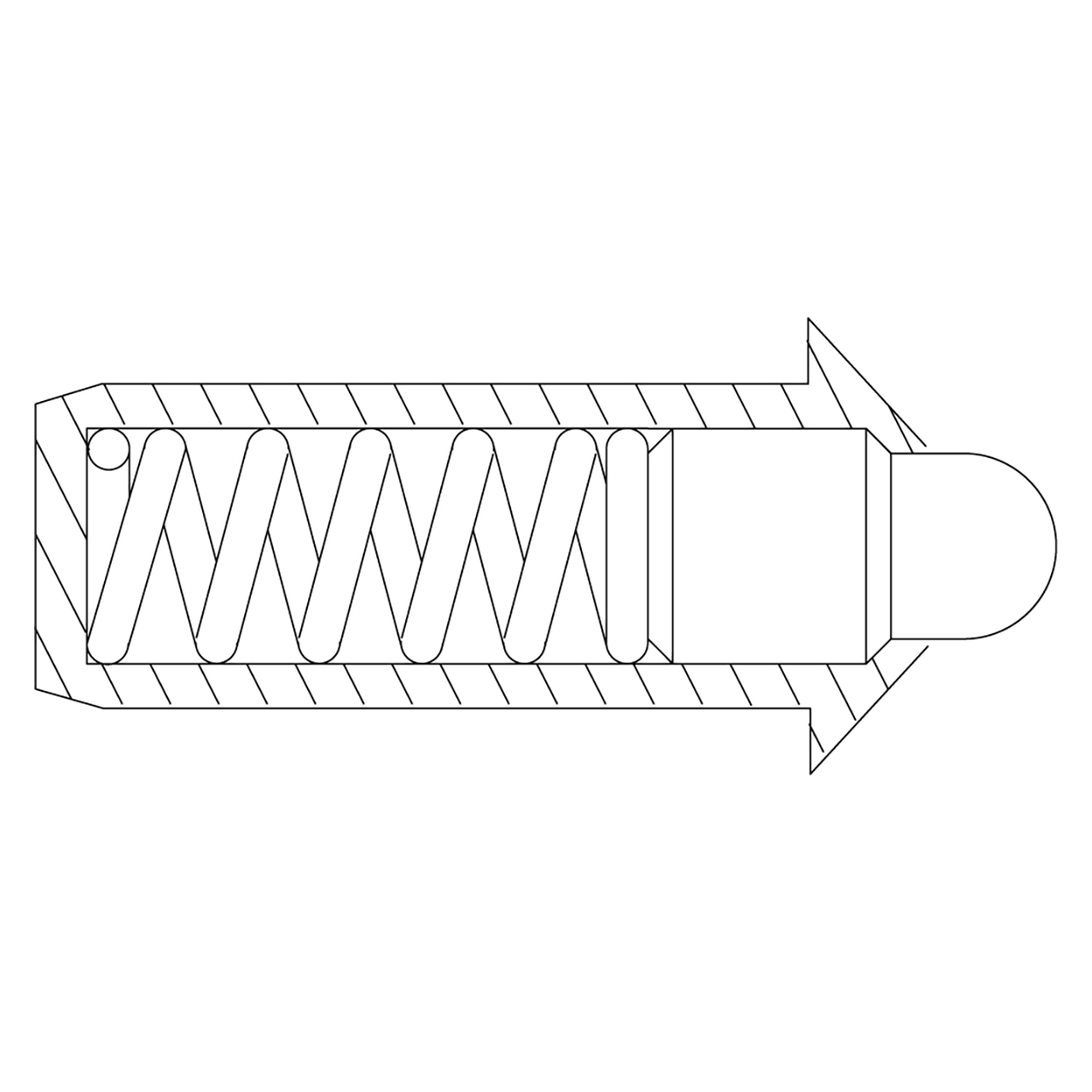

Internal View
Nose Extended Nose Retracted
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Body and Plunger Nose | 300-Series Stainless Steel | - | - | ✔ | ✔ |
| Spring | 302 Stainless | - | - | ✔ | ✔ |
Parts Specification
| Part Number | A DIA | INITIAL END FORCE (lbs) | FINAL END FORCE (lbs) | B | C+/-.010 | D +.001 / -.002 | E DIA | F |
| CL-8-PSPS-2 | .500 | 8 | 18 | 1.130 | .250 | .332 | .688 | .088 |
