Product Information

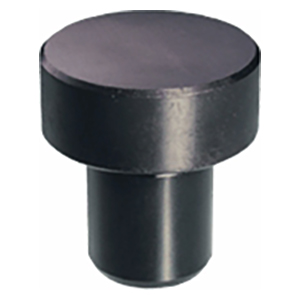

Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Available in head diameters from 3/8 to 1-1/4" (10 to 20mm in metric), each in a choice of heights. Available in steel or stainless steel. Made in USA.

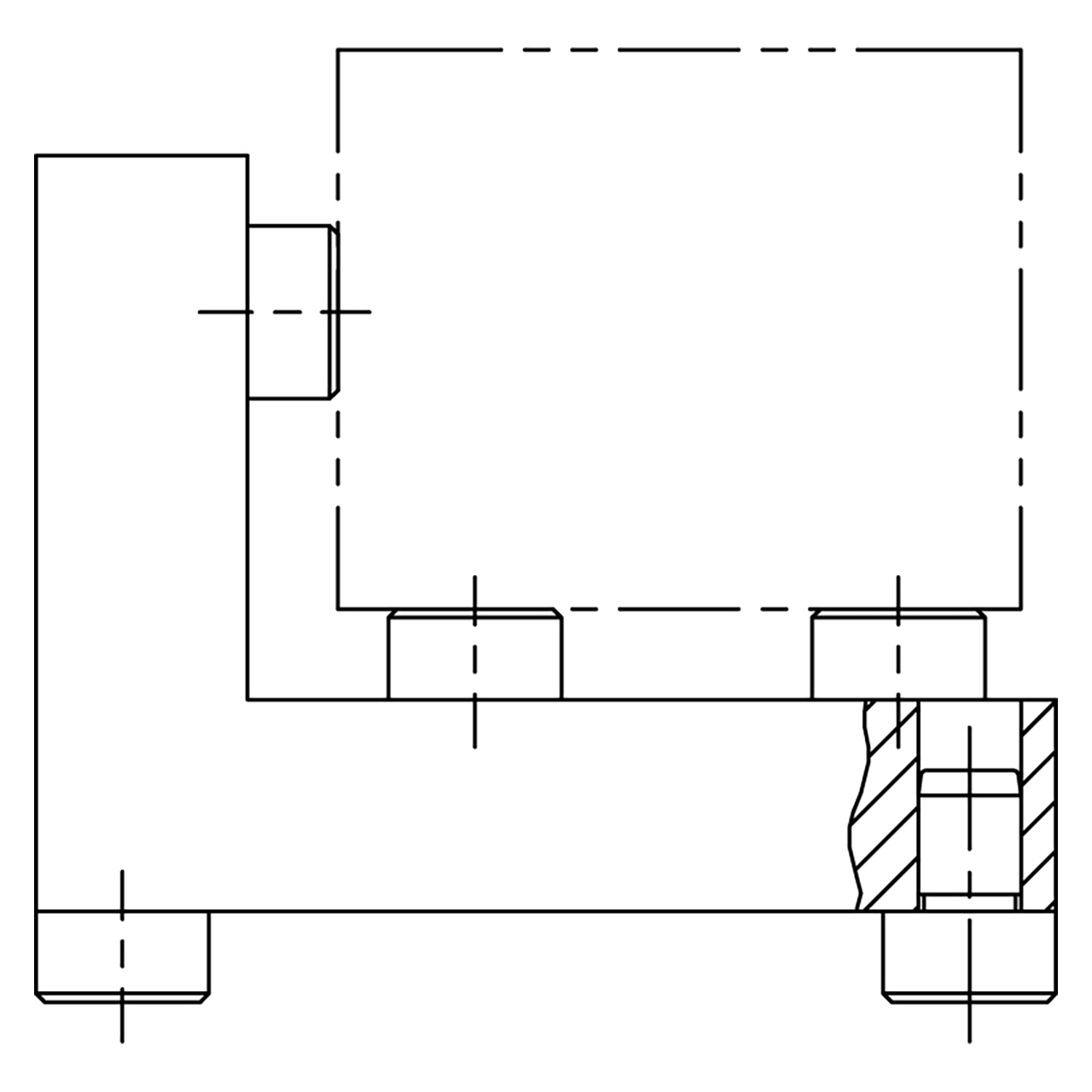

Application Information
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 1144 Steel | Heat Treated Rc 40-45 | Black Oxide | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | - | ✔ | ✔ | |

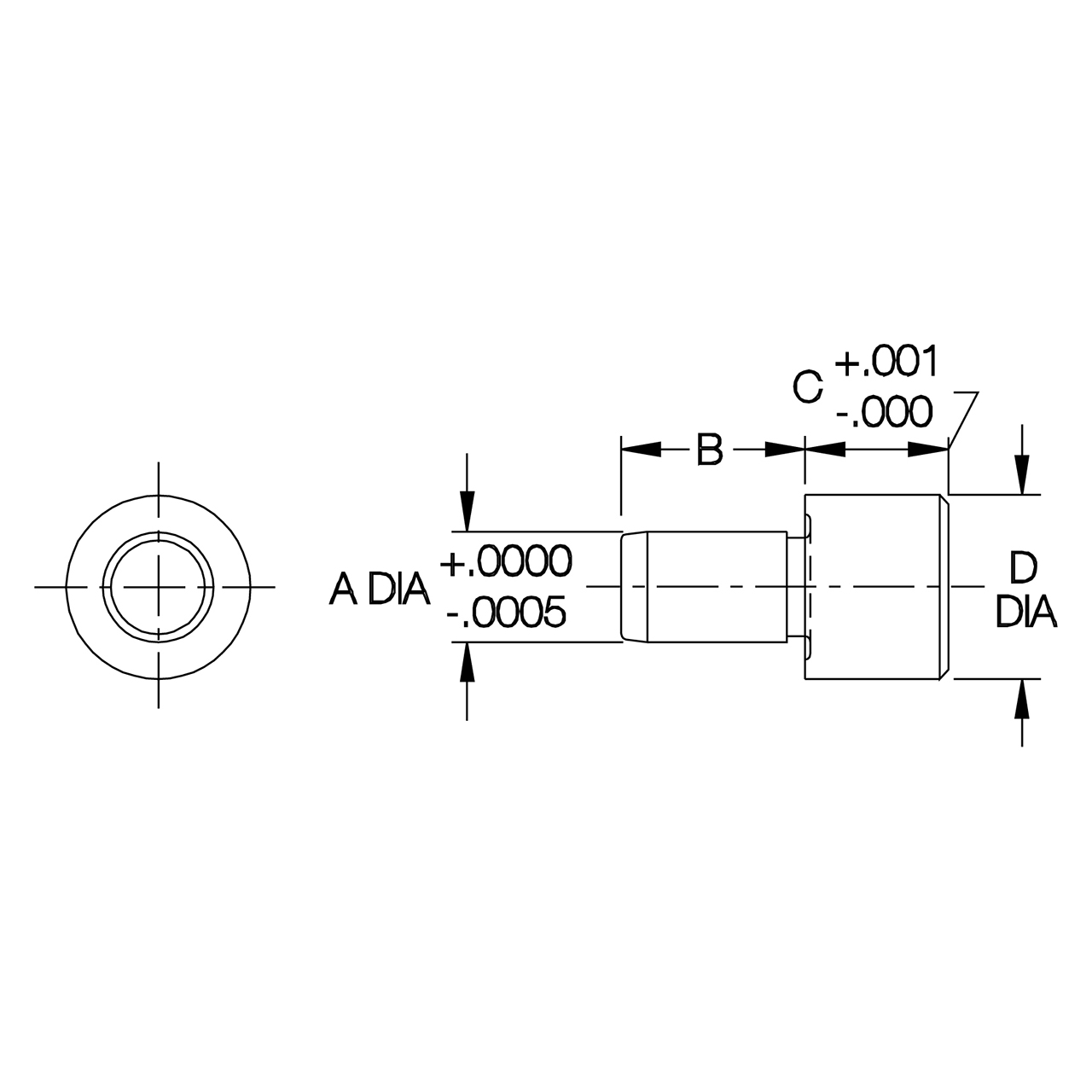

Parts Specification
| Part Number | A DIA NOMINAL | A DIA ACTUAL | B | C NOMINAL | C ACTUAL | D DIA |
| CL-8-RB | 3/8 | .3760 | 5/8 | 3/4 | .7500 | 5/8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
5/8"
Diameter (Decimal Inch):
0.6300"
Diameter (mm):
15.88mm
