Carr Lane CL-8-RGT | #10-32 Thread x 1/2" Diameter Carbide Tipped Round Gripper

Product Information

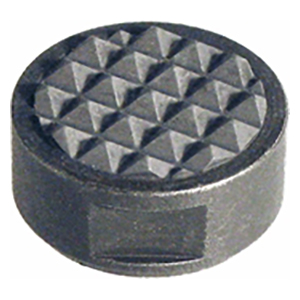

Serrated Round Grippers are hard, replaceable inserts that provide additional holding force and/or wear resistance when installed in a fixture. These grippers are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. The carbide-tipped grippers shown here are economical and impact resistant while providing extra durability. Available in diameters from 3/8 to 1" (10 to 25mm in metric). Made in USA.

Application Information

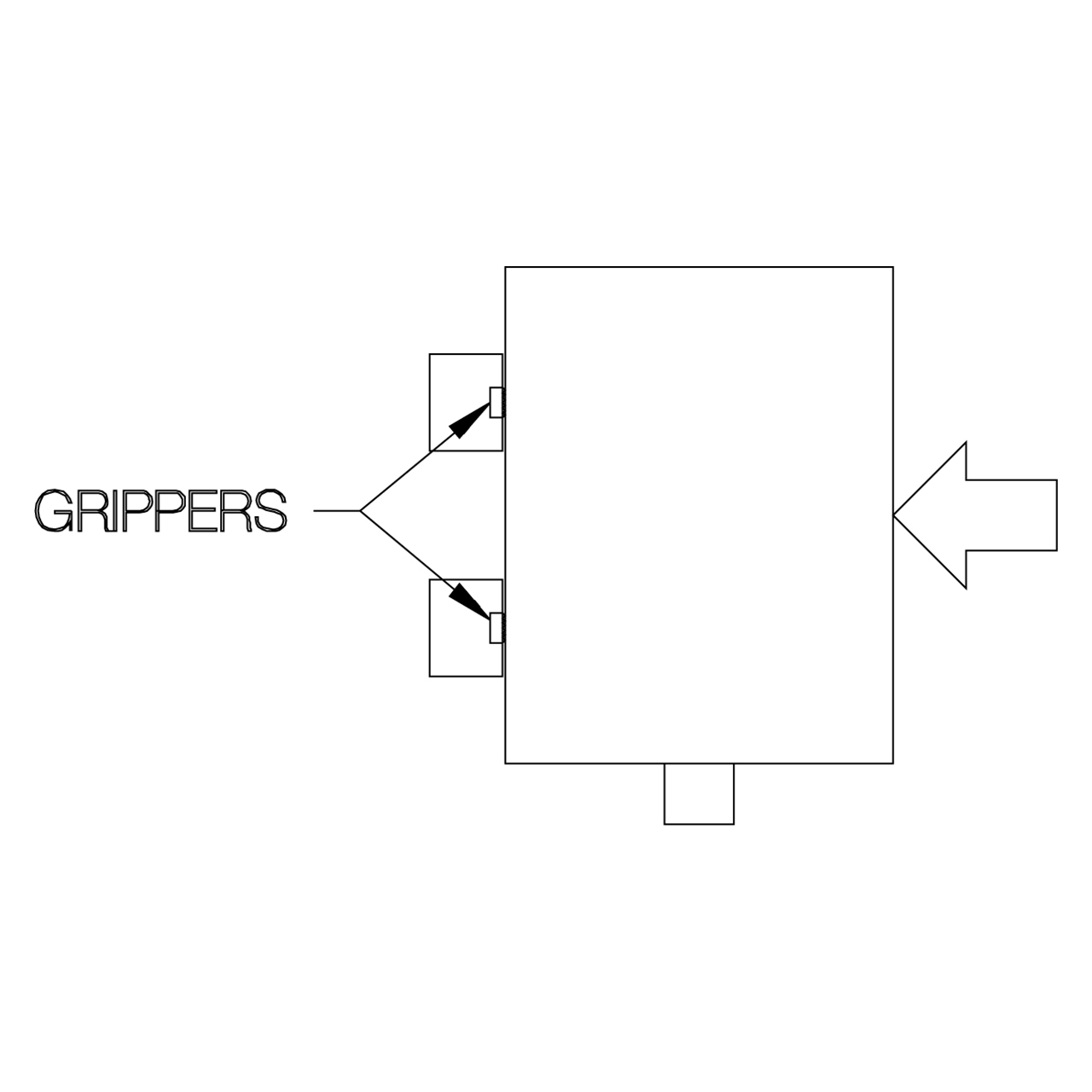

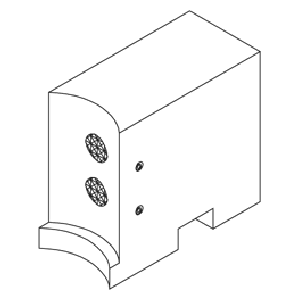

Simple customized blank chuck jaws with serrated grippers installed can provide holding force comparable to fully serrated hard jaws. Serrated grippers installed in a fixture's locating surfaces dramatically increase resistance to movement by embedding themselves in the workpiece.

Installation

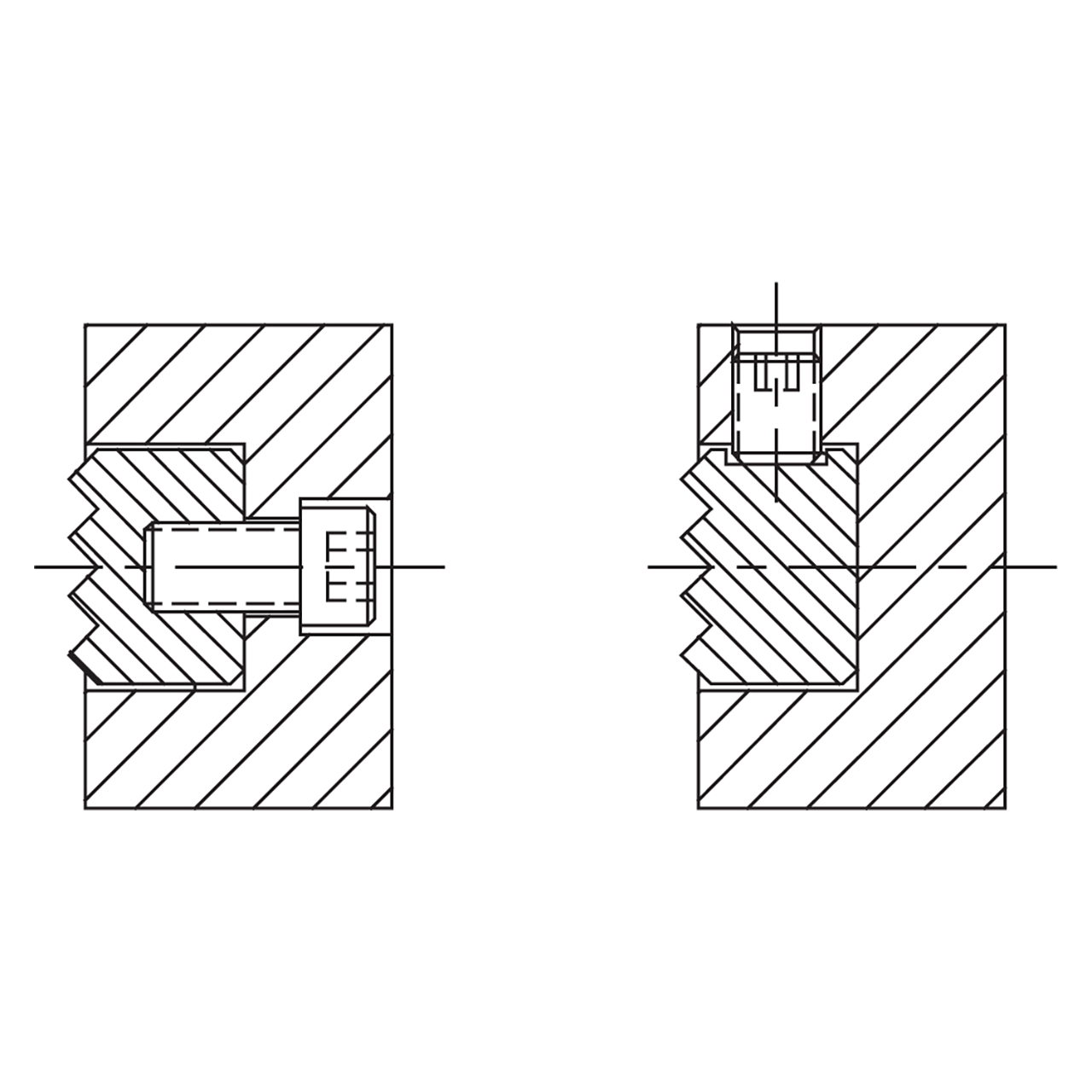

These tapped Round Grippers can be fastened from behind with a socket-head cap screw, or clamped with a setscrew on the O.D. locking flat. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. When grippers are installed in a hole, they should project 50 to 100% of serration height for maximum effectiveness (serration height is .047" on grippers with .094" x 90 Degree serrations, .062" on grippers with .125" x 90 Degree serrations). Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

Material

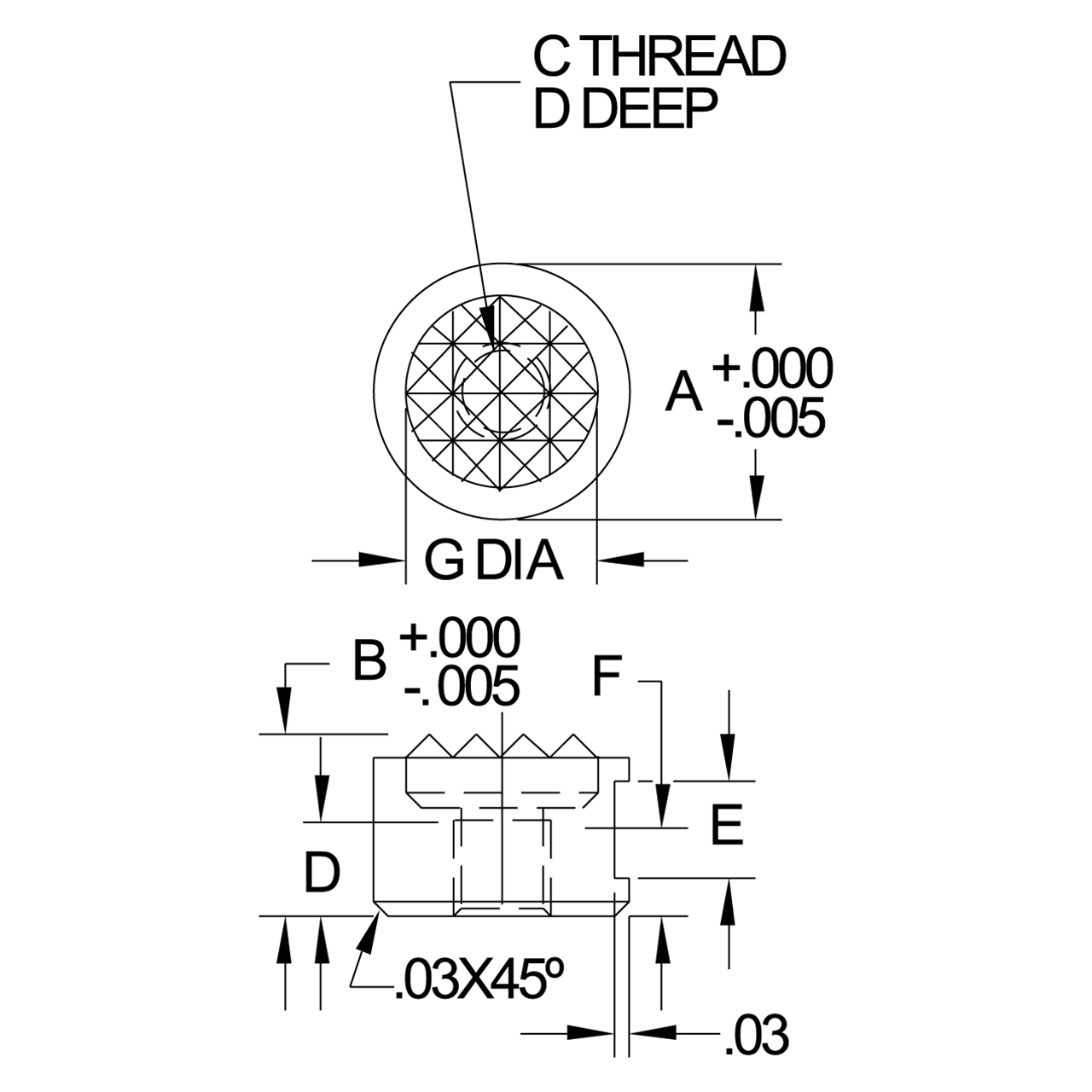

Parts Specification
