Product Information

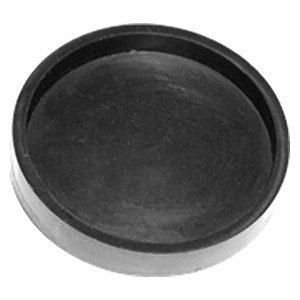

Pad Covers fit over the bottom of our Levelling Feet and Stud Levelling Feet. These PVC covers provide increased grip to prevent sliding on sloped or uneven surfaces. They also provide cushioning to reduce transmitted machine vibrations and walking. Please note, rated levelling-foot load capacity is reduced to prevent damage to the cover. Available to fit Levelling Feet and Stud Levelling Feet with thread sizes from 3/8-16 to 3/4-10 (M10 to M20 in metric).
Application Information

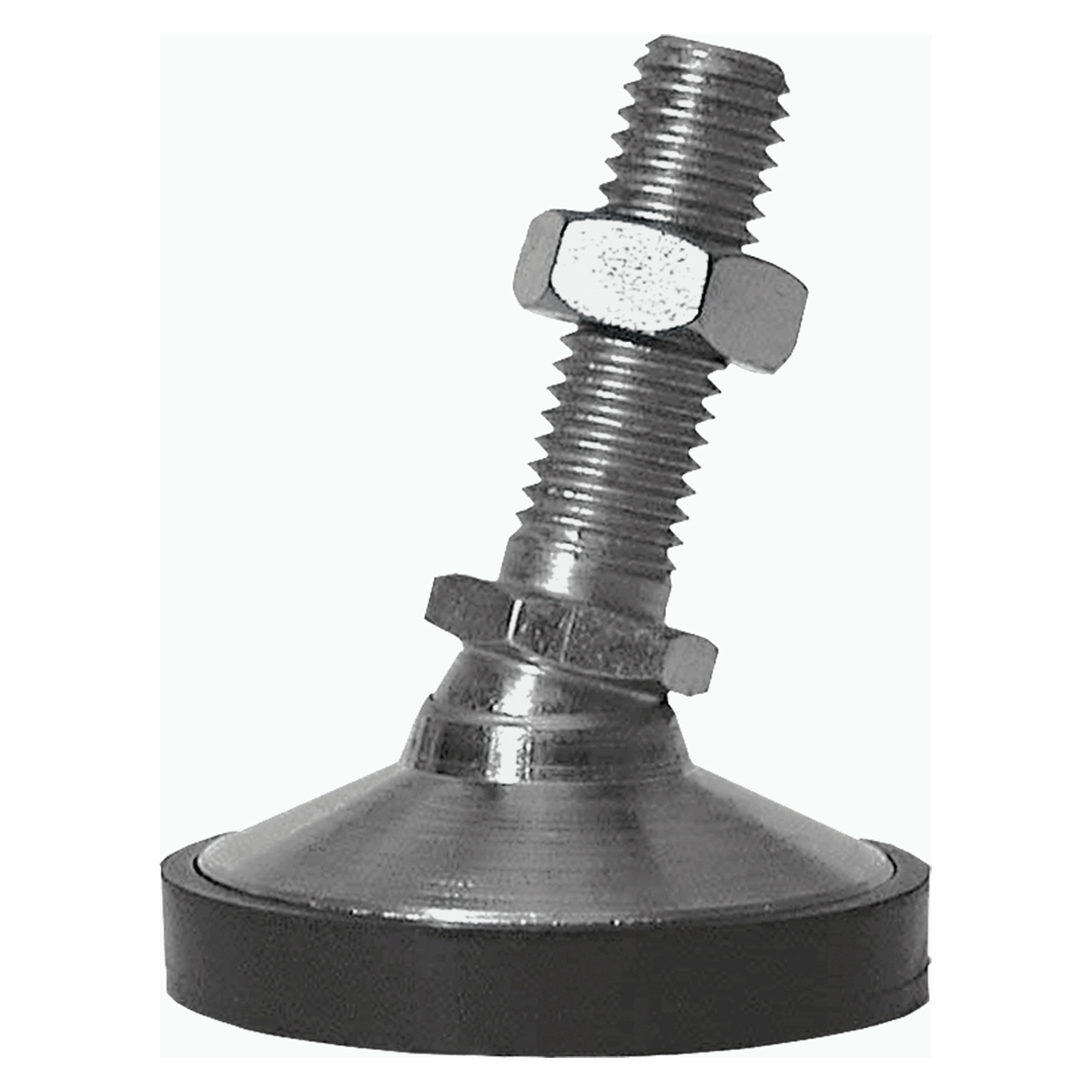

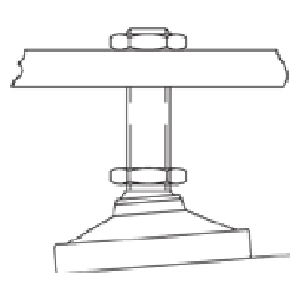

Pad Cover installed on a Stud Levelling Foot Pad Covers help prevent sliding on sloped or uneven surfaces.
Material
MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
Polyvinyl chloride thermoplastic | - | - | ✔ | ✔ |
Parts Specification

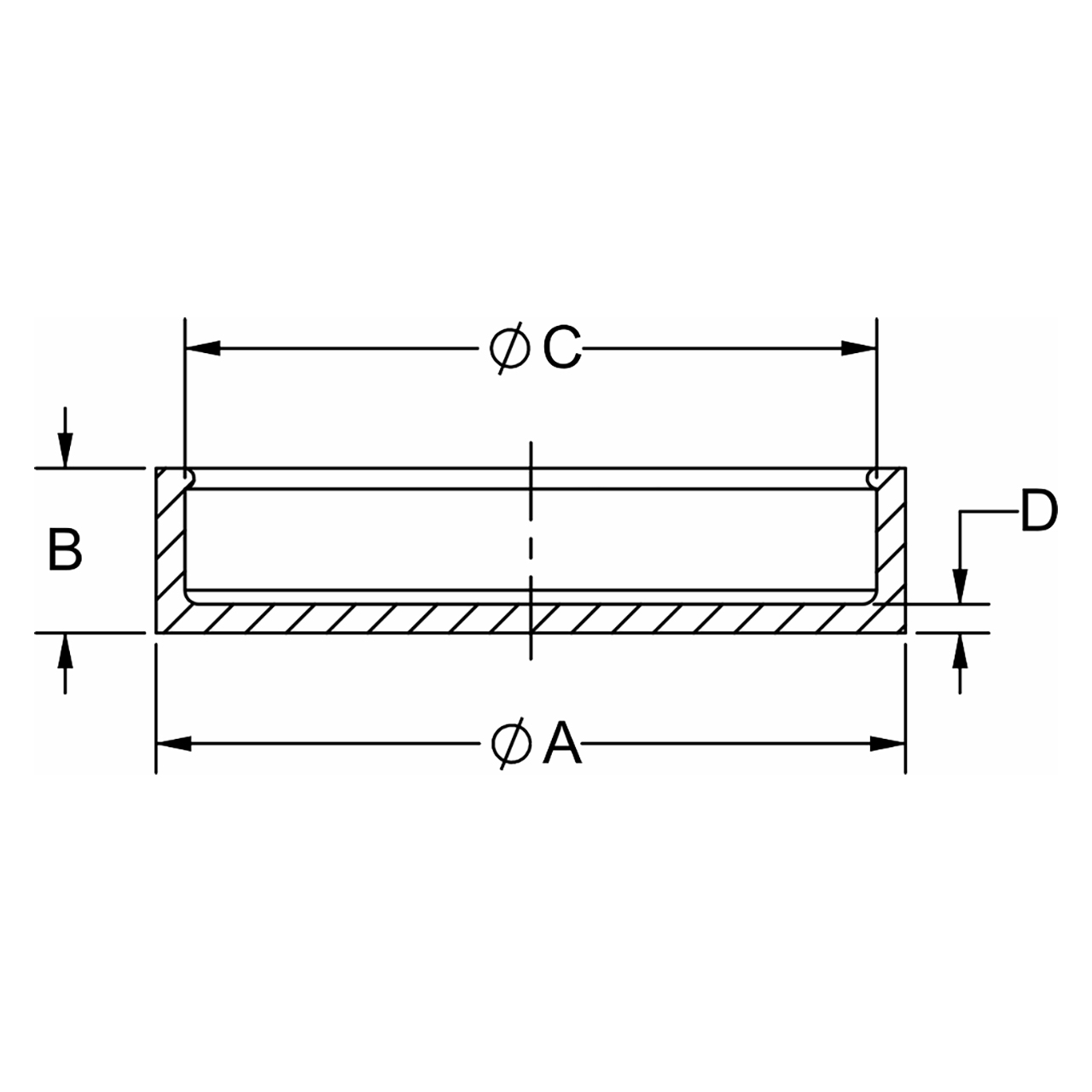

Part Number | FITS LEVELING FEET | A DIA | B | C DIA | D | LOAD RATING (lbs) |
CL-8-RPC | 1/2-13 and M12 | 2-1/8 | .46 | 1.85 | 1/8 | 700 |
