Vertical V Blocks

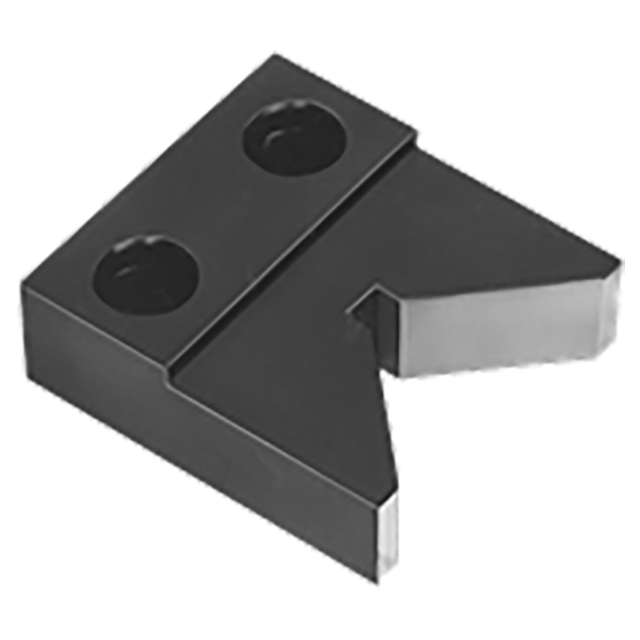

Ideal for holding a cylindrical workpiece in an exact location with its axis perpendicular to the tooling surface. Locating surfaces are precision ground and accurately qualified in relation to the mounting holes.
Mounting
Fasten with two Locating Screws.
Material
| Item | Material | Heat Treat | Finish |
| Body | 1045 Steel | Heat Treated | Black Oxide |
| Bushing | High-Carbond Steel | Heat Treated | - |
Parts Specification

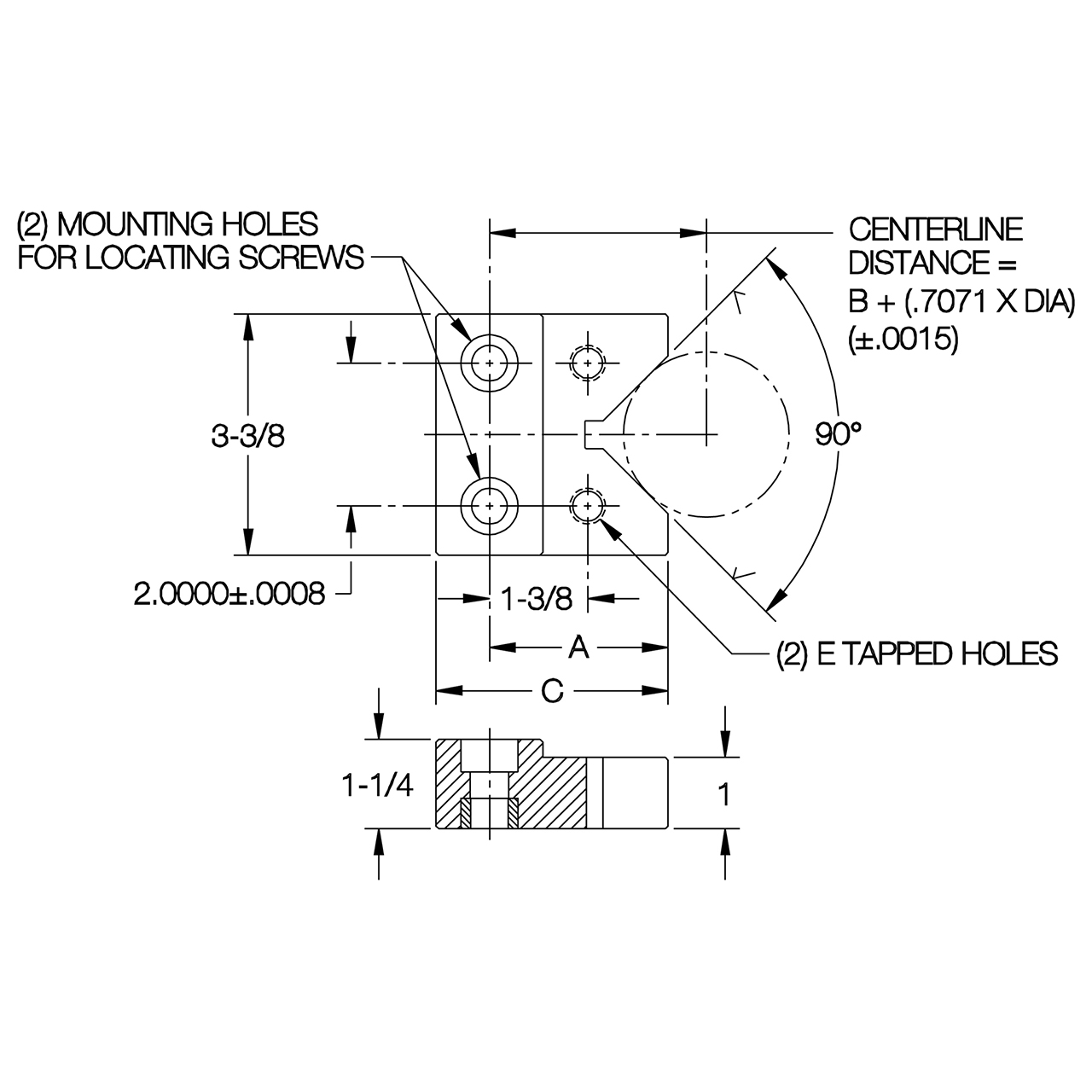

| Workpiece Diameter Range | A | B | C | E | Mounting Screw Size |
| 9/16 to 3-1/8 | 2-1/2 | 1.3951 | 3-1/4 | 5/8-11 | 5/8-11 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
