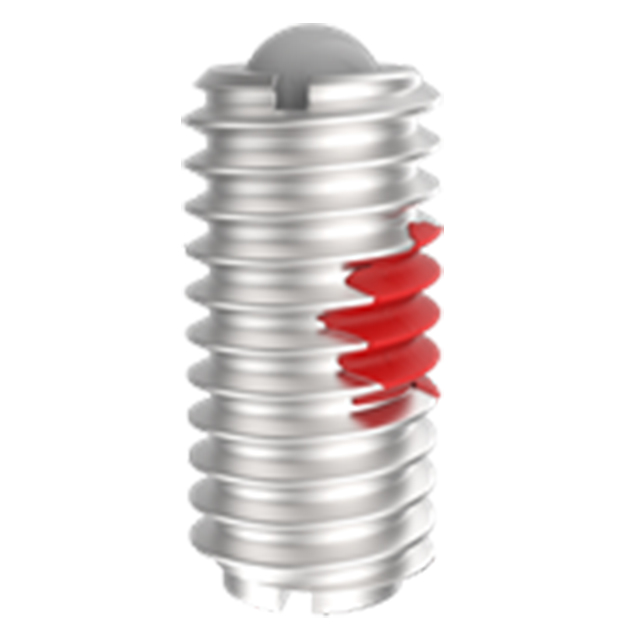

Ball Plungers-Stainless Steel with Delrin Ball
Self-contained ball-and-spring device available in many sizes and forces. The version has a stainless steel body for extra corrosion resistance, and a Delrin ball to prevent marring. Made in USA.
Application Information
Internal View
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Ball | White Delrin 500 | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | End Force | Initial End Force (n) | Final End Force (n) | B (mm) | C (mm) | D Diameter (mm) |
| M10 | 1.5mm | Medium | 22 N | 44 N | 16mm | 1.2mm | 4.8mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
1/16"
Pitch (Decimal Inch):
0.0591"
Pitch (mm):
1.50mm
Thread:
M10
