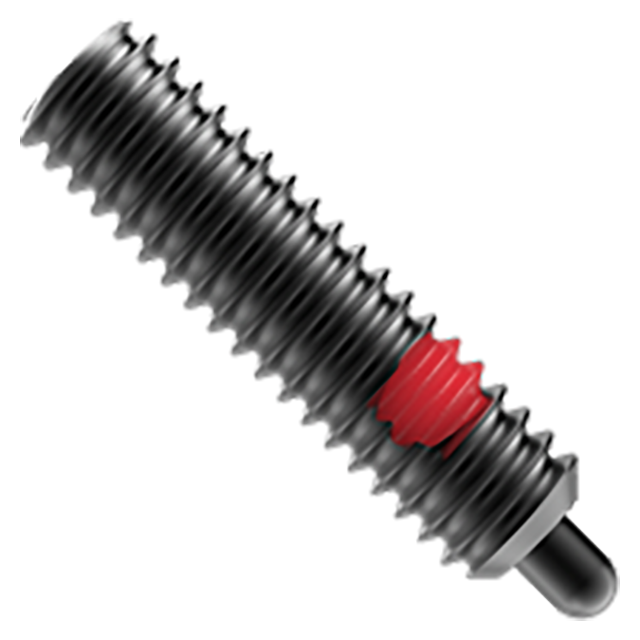

This standard-length, threaded type has a long stroke and long plunger bearing length for smooth operation. The version has a Steel body and a hardened Steel plunger nose. Made in USA.
Spring plungers can be used to lift parts slightly after machining, for easier unloading.
Nose Extended
Nose Retracted
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel, Black Oxide Finish (Metric sizes Zinc Plated clear chromate) | - | - | Yes | Yes |
| Plunger Nose | 1215 Steel | Carburized-Hardened | black oxide Finish (heavy force) or Zinc Plated clear chromate (light force) | Yes | Yes |
| Spring | Music Wire | - | - | Yes | Yes |
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B (mm) | C (mm) | D Diameter (mm) |
| M10 | 1.5mm | 12 N | 32 N | 28.5mm | 4.8mm | 4.72mm |
