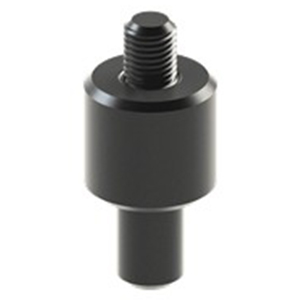

Center Locating Keys are used to precisely center a fixture on a rotary table. They are used for mounting Quintus Quick-Change Risers. Riser Blocks, and Round Tooling Plates, which all have a standard 25mm center hole. To accomplish this, all Center Locating Keys have a 25mm upper diameter, but have one of four different designs so that the bottom diameter fits the rotary table's center hole. The Type 1 keys shown here have a 1/2" bottom diameter. Made in USA.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | ✔ | ✔ |
Parts Specification
| Part Number | A DIA NOMINAL | A DIA ACTUAL | B DIA NOMINAL | B DIA ACTUAL | C | D | E | H |
| CLM-25-CLK-.5000 | 1/2 | .5000 | 25mm | .9843 | .90 | .75 | M10 | .47 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
