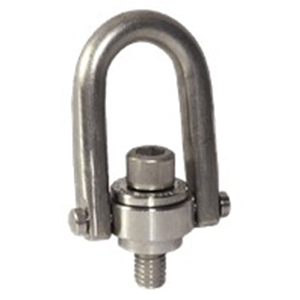

Carr Lane CLM-29820-SHR-S | M20 Thread x 2.50mm Pitch Swivel Hoist Ring

Product Information

Stainless steel version of our original safety-engineered hoist ring, with a load rating equal to 50% of the steel version. Useful for corrosive, cryogenic, or elevated-temperature environments. Swivel Hoist Rings pivot 180 Degree and swivel 360 Degree simultaneously to allow lifting from any direction. Safety factor = 5:1. Available with inch threads in load capacities up to 50,000 lbs, or metric threads up in load capacities up to 24,000 lbs, many with a choice of bolt length. Stainless steel swivel hoist rings conform to ASME B30.26.  Patent no. 3,297,293, and 4,705,422. Made in USA.

Technical Information

Hoist Ring Technical Information Hoist Ring Safety Precautions Types of Hoist Rings Please note that stainless steel hoist rings have a load rating equal to 50% of the alloy steel version.

Application Information

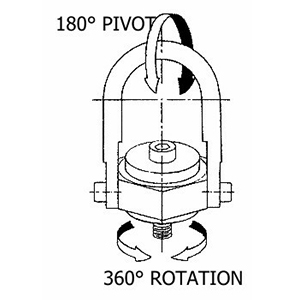

The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.

Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Some hoist rings are available with a choice of bolt lengths. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

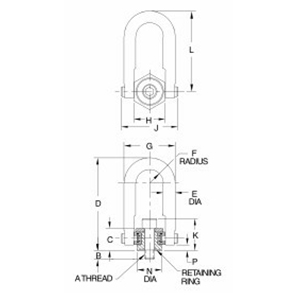

Material

Parts Specification
