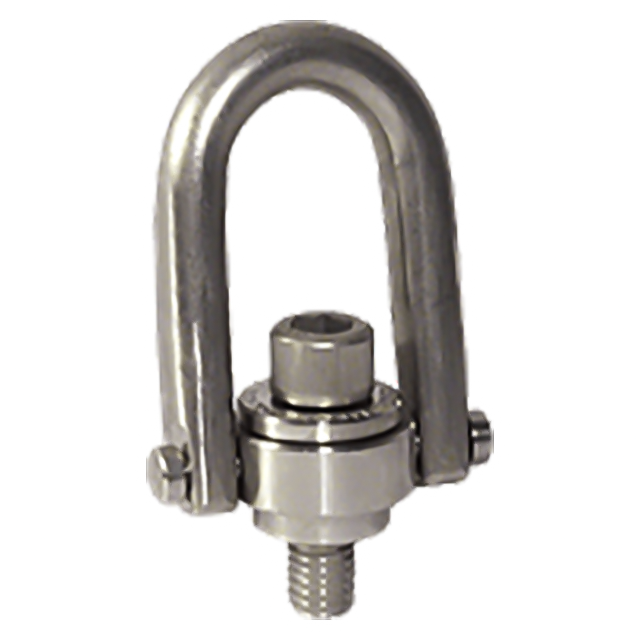

Swivel Hoist RingsSwivel Hoist Rings
Stainless steel version of the original safety-engineered hoist ring, with a load rating equal to 50% of the steel version. Useful for corrosive, cryogenic, or elevated-temperature environments. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Installation
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.
Material
| Item | Material | Heat Treat | FINISH |
| Swivel Hoist Rings - Stainless Steel (Standard Ring) | 300-Series Stainless Steel | - | Passivated |
Parts Specification
| Load Rating (kg) | A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D (mm) | E Diameter (Mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | N Diameter (Mm) | P (mm) | Installation Torque (nm) |
| 1500 | M20 | 2.5mm | 29mm | 43mm | 166mm | 25.5mm | 36mm | 121mm | 76mm | 131mm | 64mm | 147mm | 59mm | 6mm | 68 |
