Carr Lane CLM-34714-SHR | M20 Thread x 2.5mm Thread Pitch Swivel Hoist Ring

$85.08
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
93006458
Weight:
2.57 LBS
Shipping:
Free Shipping

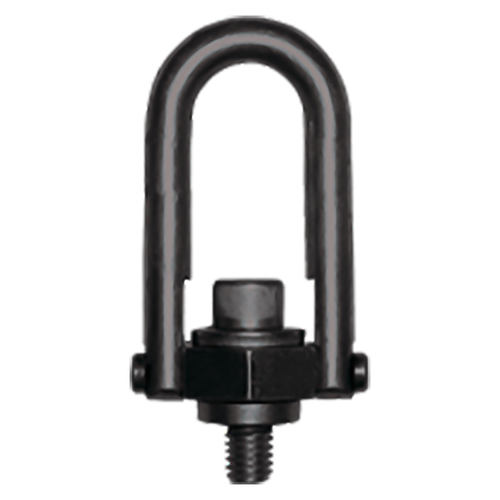

Heavy-Duty Swivel Hoist Rings

Feature a forged lifting ring and simpler construction for easy disassembly. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction.

Application Information

Heavy-Duty Swivel Hoist Rings can be easily disassembled. One benefit of this is easier cleaning. Disassembly also allows adding a lifting hook, as shown in this example, for use when lifting with a sling.


Internal View


Installation

Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely. Use the shortest bolt length only for steel plates, the other lengths for weaker materials and for through-hole mounting with a washer and nut.

Material

Item Material Heat Treat FINISH
Heavy-Duty Swivel Hoist Rings (Standard Ring) 4140 Steel Heat Treated Black Oxide finish (Cadmium Plating available as a special)


Parts Specification

Load Rating (kg) A Thread Thread Pitch (mm) B (mm) C (mm) D (mm) E Diameter (mm) F (mm) G (mm) K (mm) L (mm) N Diameter (mm) P (mm) Installation Torque (nm)
2200M202.5mm25mm38mm135mm19mm25.5mm89mm57mm121mm48mm4.4mm135
