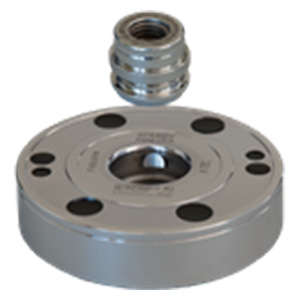

Carr Lane CLR-S7000-119 | Modular Zero-Point System

Product Information

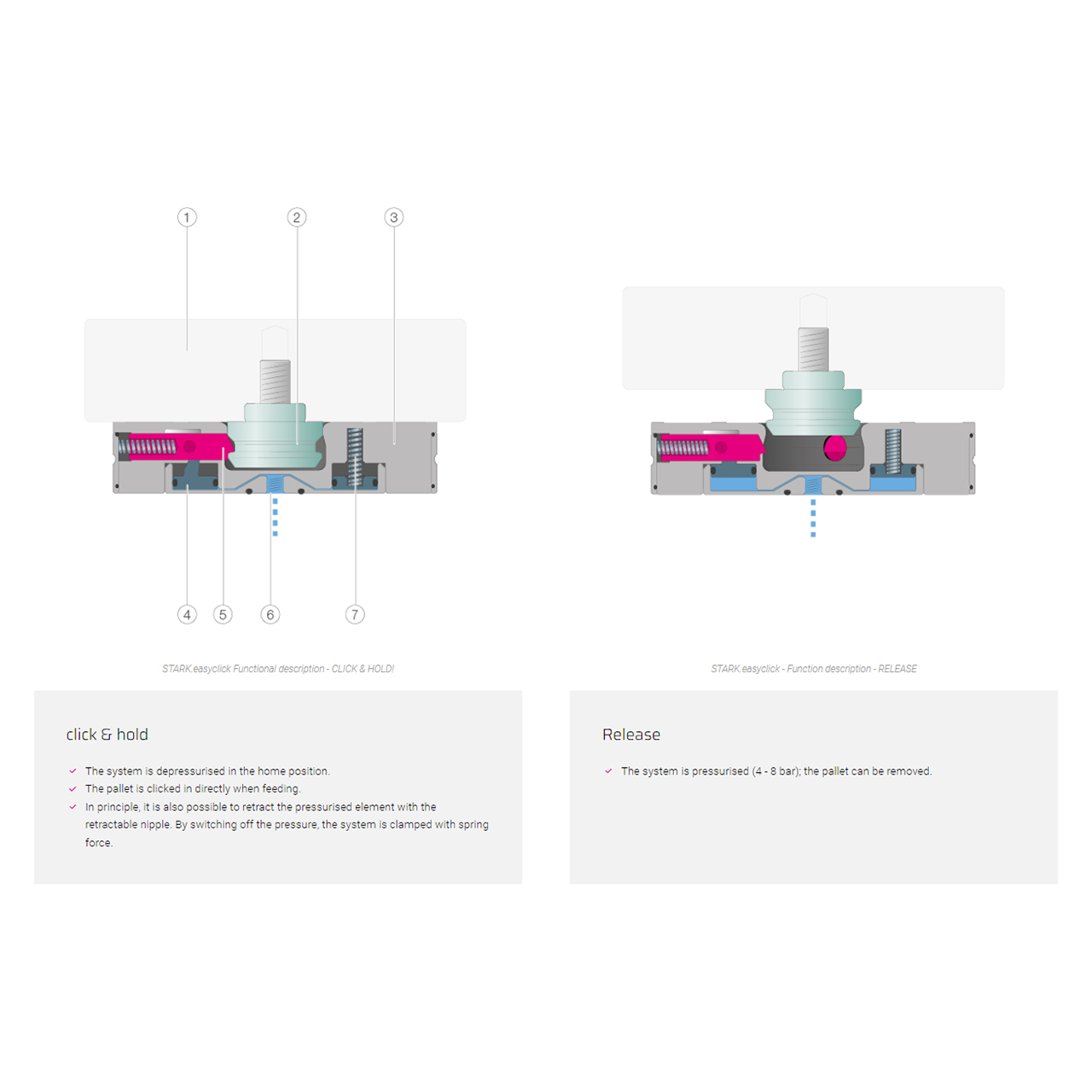

Reduce fixturing setup time up to 90 percent with ROEMHELD Stark’s Zero Point Mounting Systems. Existing fixtures can be easily adapted to the system, which allows for fast payback, longer fixture life, and highly accurate positioning and repeatability. This comprehensive zero-point mounting system utilizes clamping components and insertion nipples, which provide an immediate zero-point orientation, allowing faster and more accurate fixture setup and changes to increase machine capacity. Change-over can be accomplished in 20 sec. The STARK.easyclick is a mechanical fast closing clamp that clicks and holds instantly without energy input. For release, it only needs an air connection with 4 - 8 bar pressure. Special features of the STARK.easyclick product family: Click: Clamping process by pushing in Compact: Diameter 85 mm and only 19 mm high Powerful: 5 kN clamping force - 10 kN retention force Economical: released at 4 bar Fast: Release time 0.1 sec For a Downloadable Product Data Sheet see the "Documents" tab on this page.

Application Information

Videos

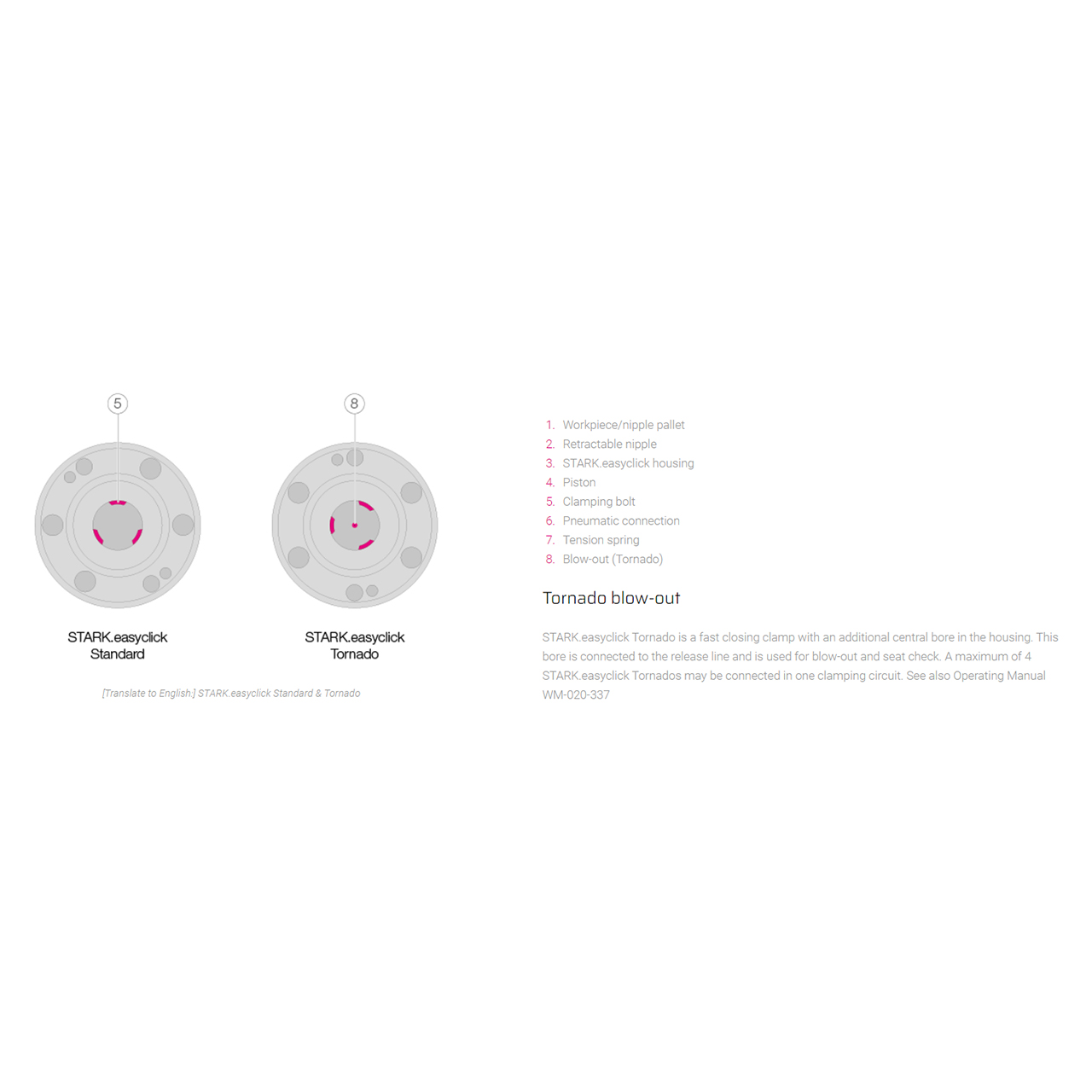

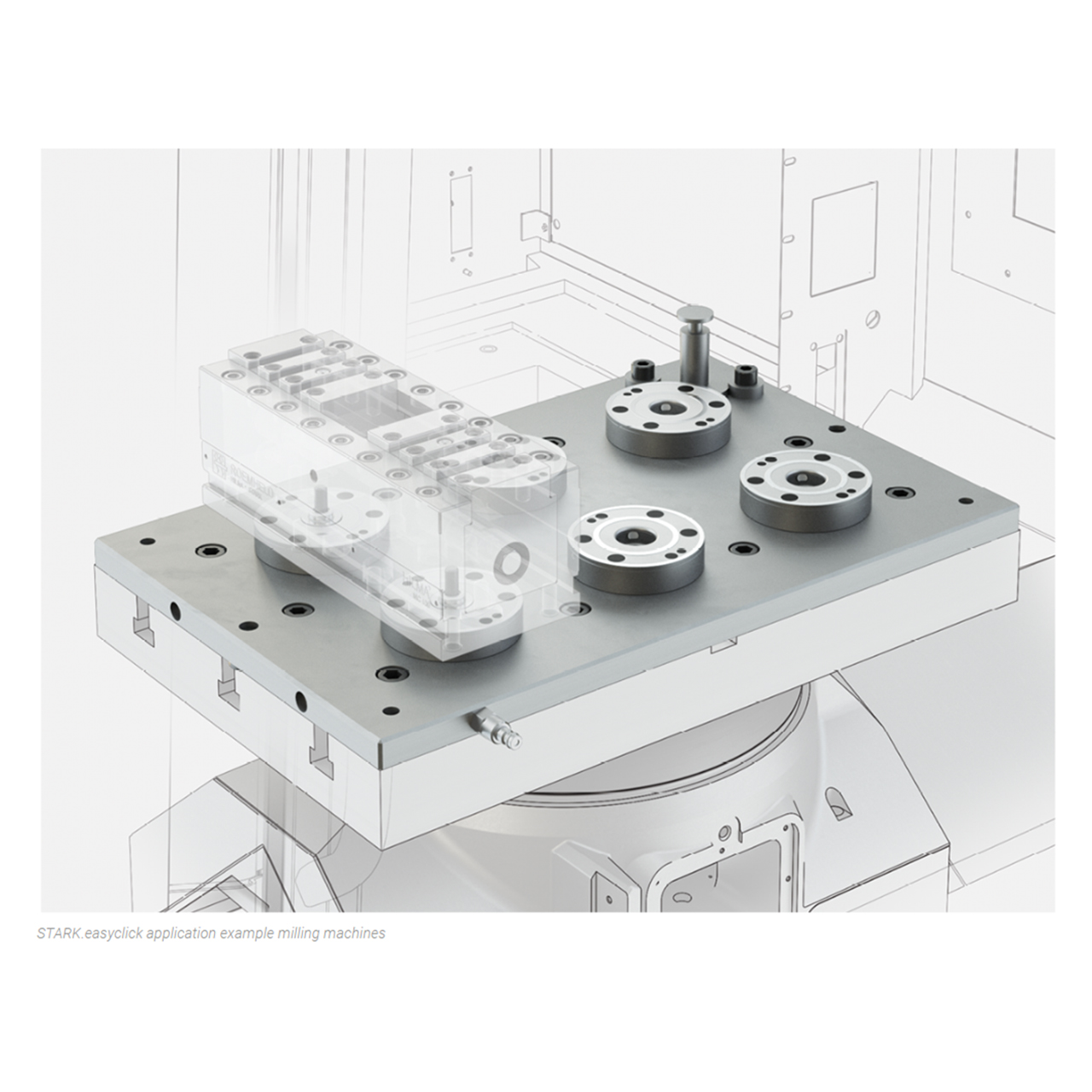

Stark Easy Click for Speedy Zero Point Manual Clamping Zero point CNC mounting, Stark Speedy Easy Click, snaps in without any energy. Release with air pressure. The mechanical clicking system makes SPEEDY easy click ideal as a robot gripper in automation engineering. The quick clamping time (click) enables it to be used as a design element in production lines. The particularly compact design permits tight spacing, short retractable nipples 15 mm long ensure short extraction distances. Integrated query options and oil-free operation extend the range of applications. The SPEEDY easy click is also available with system control, polling and blowing out.

Material Chart

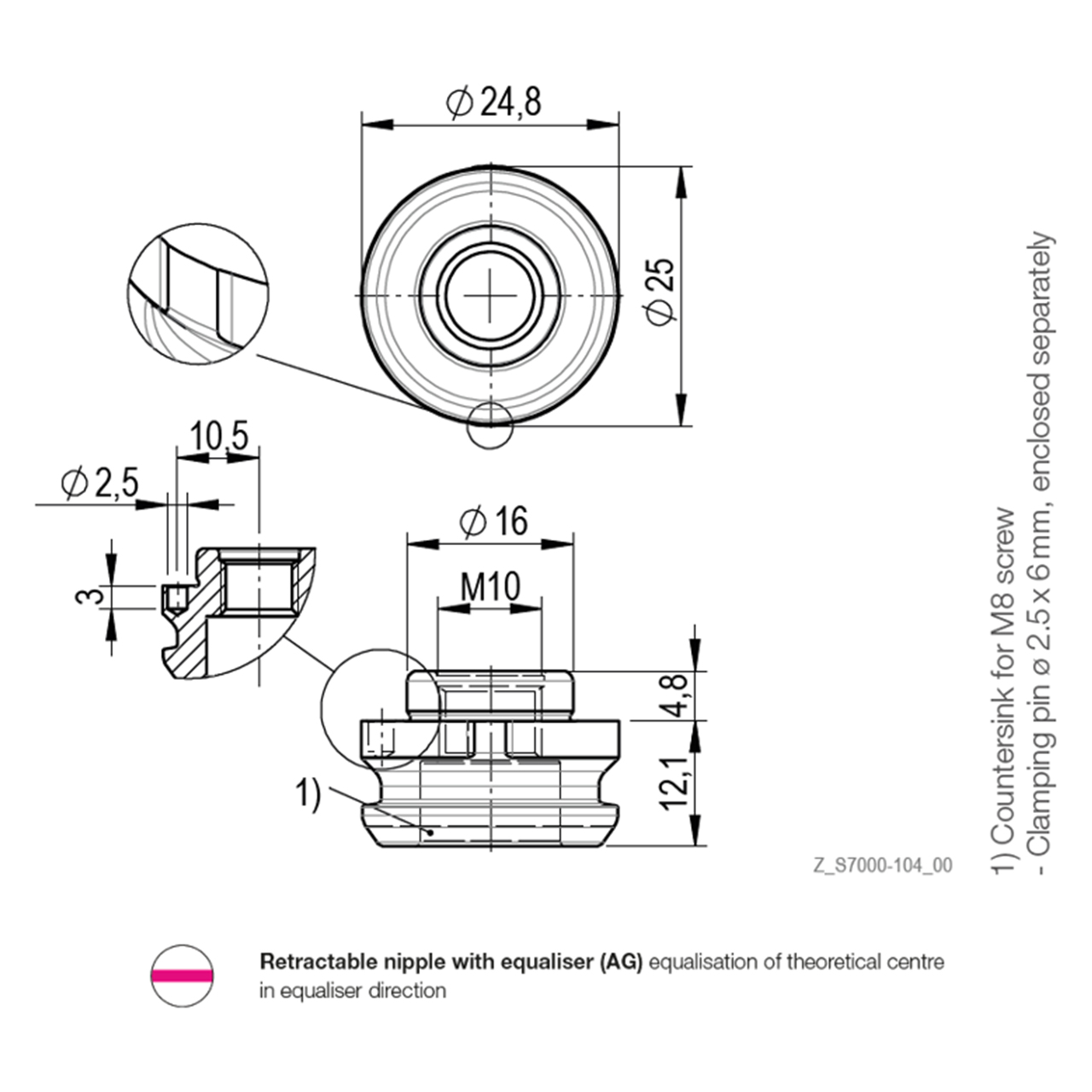

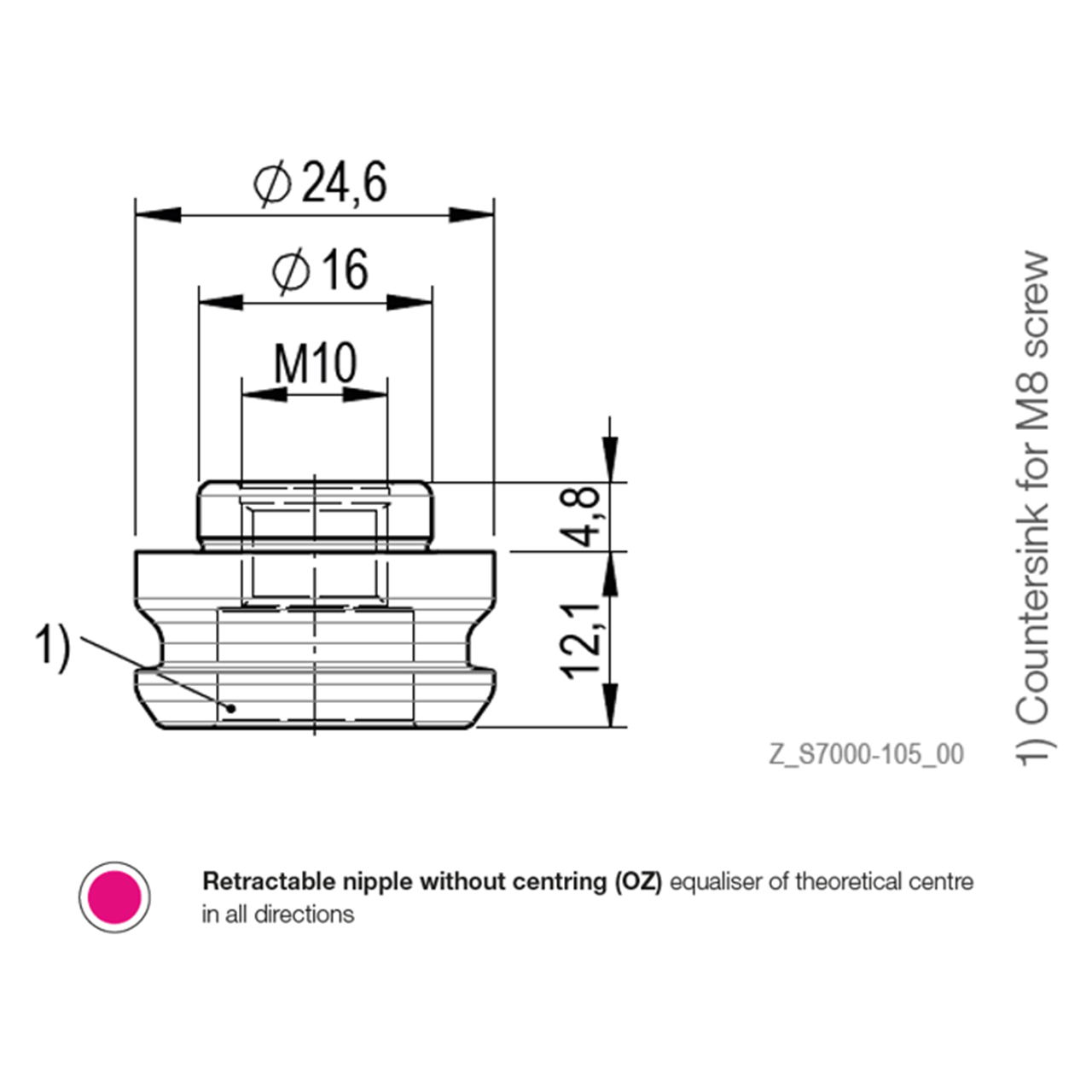

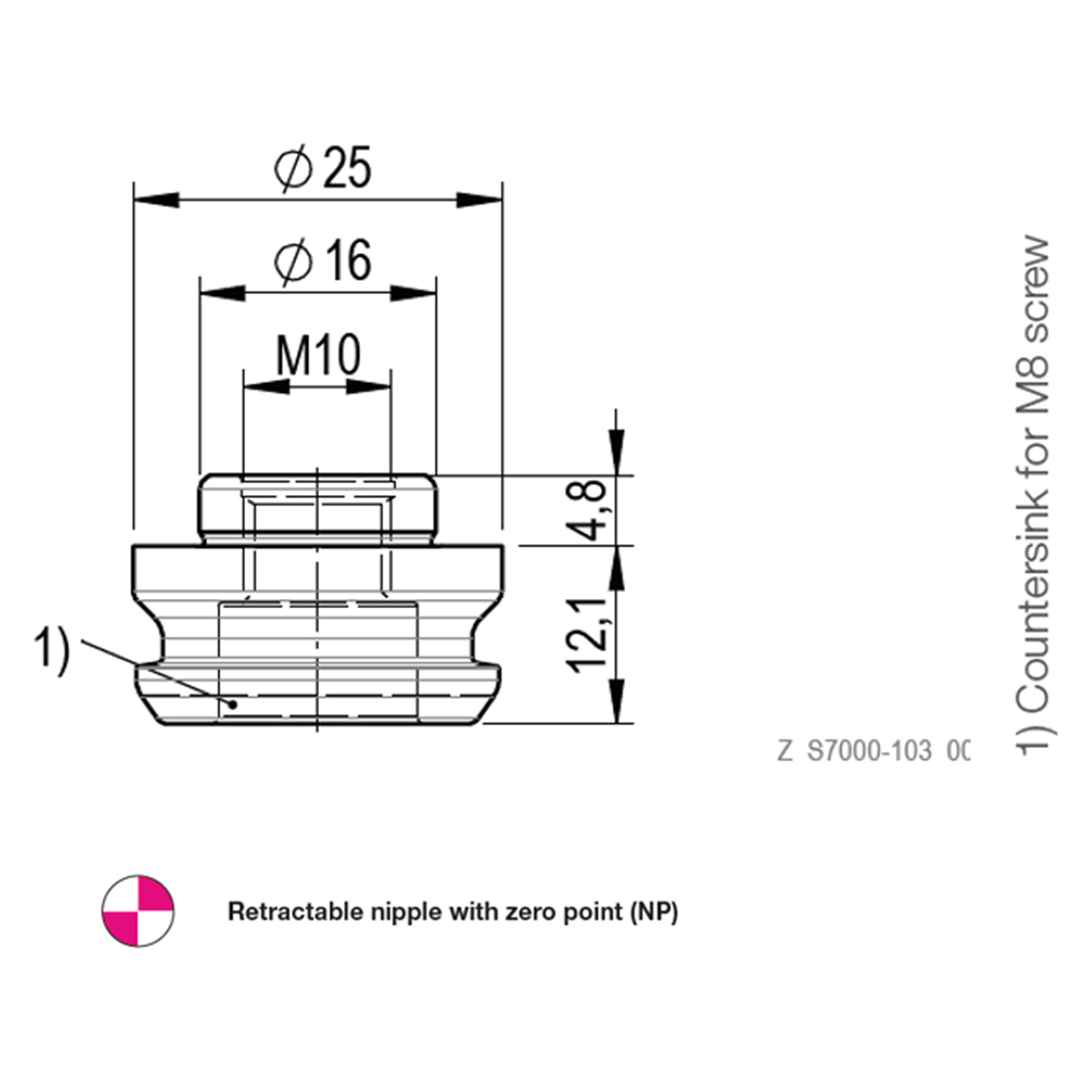

table {border: 1px solid black; border-collapse: collapse; width: 100%;}th, td {border: 1px solid black; padding: 8px;font-family: arial; text-align: center;vertical-align: center;}ITEMMATERIALHEAT TREATFINISHClamping elements High Alloy Tool Steel Hardened support surface-Nipples (Pull Studs)High Alloy Tool Steel Hardened-Click here for detailed material and finish specifications. California residents click here for Prop 65 information.
