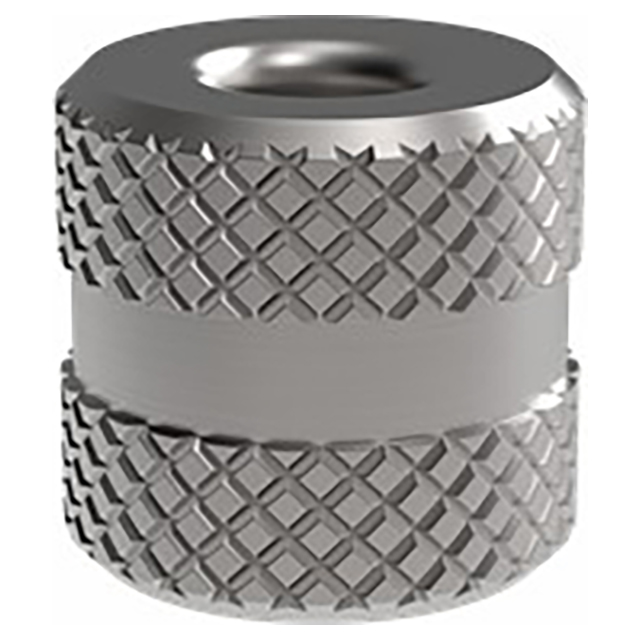

Carr Lane DGM-15-12-10.00 | Diamond-Groove Bushing

$10.51
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
70031581
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Diamond-Groove Bushings-Metric

Metric version of the popular DG bushings, designed for cast-in-place or potted installation. Diamond-knurled OD provides excellent holding strength against both rotational and axial forces. Since the bushing's OD is not ground, the ID must be accurately located during casting or potting to ensure accuracy in the finished tool.

Application Information

DGM Bushings are designed for cast-in-place or potted installation. Diamond-knurled OD provides excellent holding strength against both rotational and axial forces.

ID Tolerance

Standard ID Tolerance (G6):

From .35 to 3mm +0.002/+0.008mm

Over 3 to 6mm +0.004/+0.012mm

Over 6 to 10mm +0.005/+0.014mm

Over 10 to 18mm +0.006/+0.017mm

Over 18 to 30mm +0.007/+0.020mm

Reamer ID Tolerance (F6) (Special):

From 1 to 3mm +0.006/+0.012mm

Over 3 to 6mm +0.010/+0.018mm

Over 6 to 10mm +0.013/+0.022mm

Over 10 to 18mm +0.016/+0.027mm

OD Tolerance

Standard OD Tolerance:

5mm +0.50/+0.25

6 to 22mm +0.65/+0.25

26mm +0.90/+0.25

Counterbore on Small Drill Sizes

Metric bushings with small drill sizes through .80mm are counterbored 1.00mm diameter with 3mm drill-bearing length, according to ANSI standards, to eliminate binding and heat buildup.

Material

Material Heat Treat Finish DFARS RoHS
1144 Stressproof Steel Heat treated to achieve Rc 62-64 ID hardness -

Parts Specification

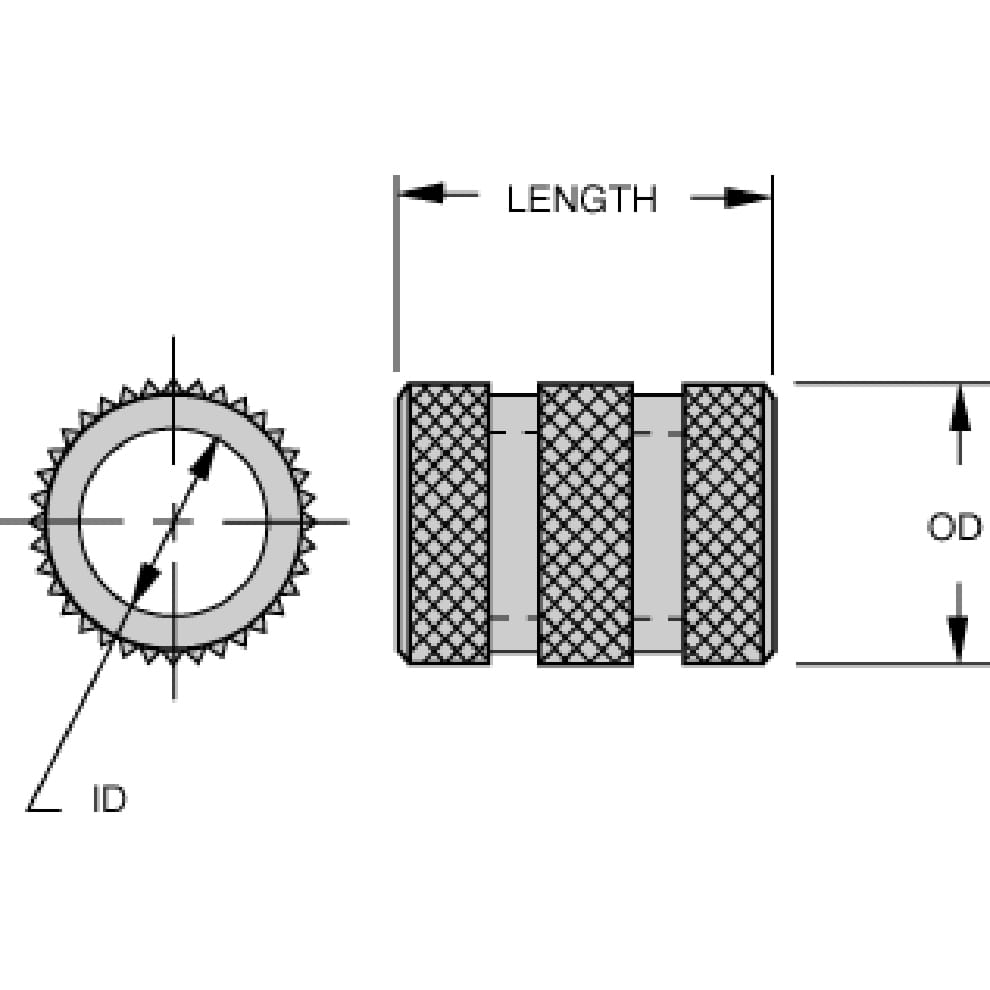

ID (mm)OD (mm)Length (mm)
10.00mm15mm12mm
