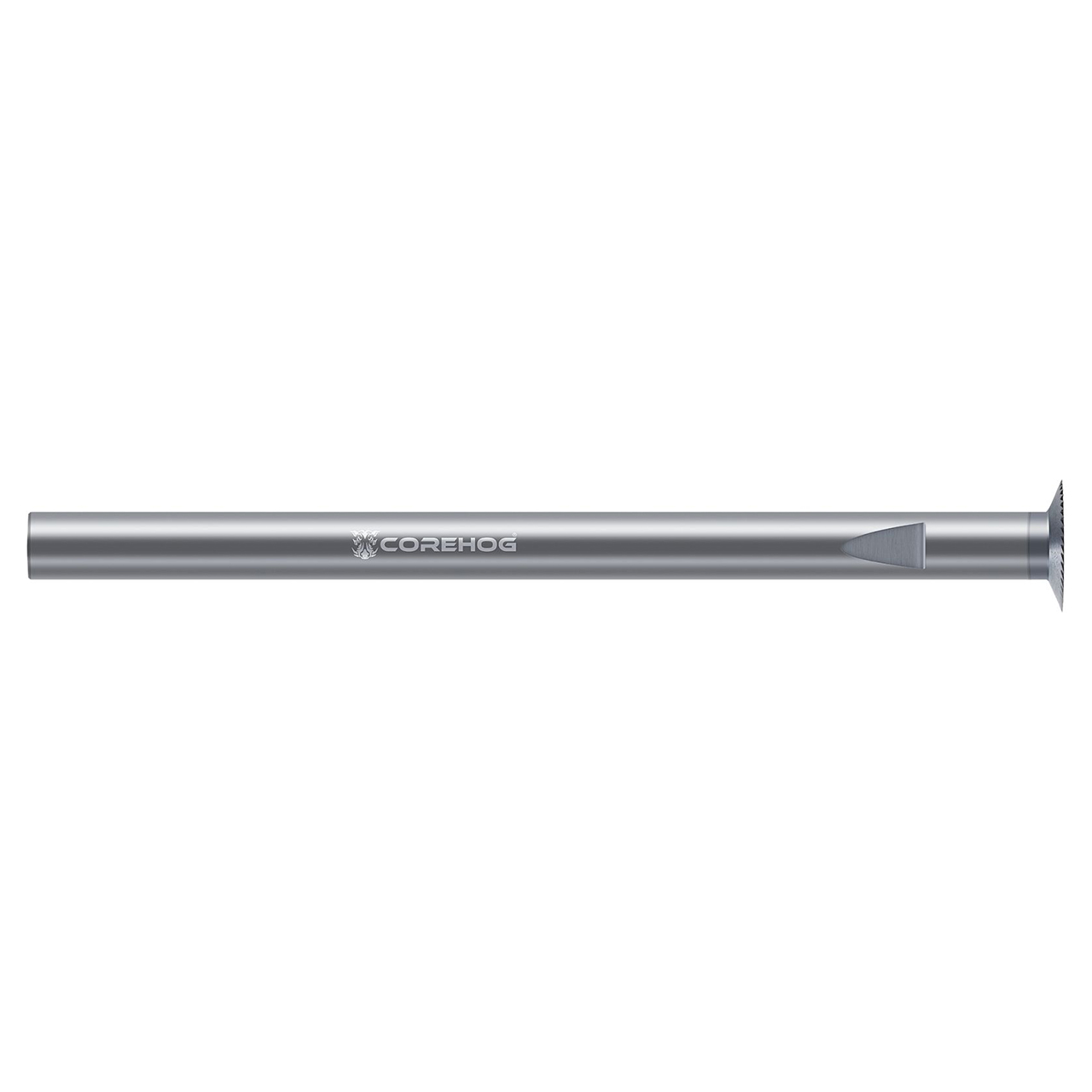

Paired with CoreHoggers, CoreHog's Finishing core tools-small coreslicers provide increased performance during the finishing of honeycomb core materials, and include TiCN coating for extended tool life and improved wear resistance.
Features:
- Optimized for reaching into small, closed features such as pockets, joggles, and closed walls
- Pair with a small CoreHogger for increased performance
- Whistle notch for small CoreHogger assembly set screw
- TiCN coating for extended tool life and improved wear resistance
- Solid carbide
- Precision manufactured in the USA
- Complete assembly consists of small CoreHogger and small coreslicer
Product Specifications
| Manufacturer Part Number | C16343 |
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 4.000" (4) |
| Size | .500 |
| Assembly Size Pairing | .500 |
| Metric | N |
| Coating | TiCN |
| type | Staggered Tooth |
| Substrate | Solid Carbide |
| Number of Flutes | 20 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
CoreHog
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Number of Flutes:
20
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Finish/Coating:
TiCN
Material:
Solid Carbide
