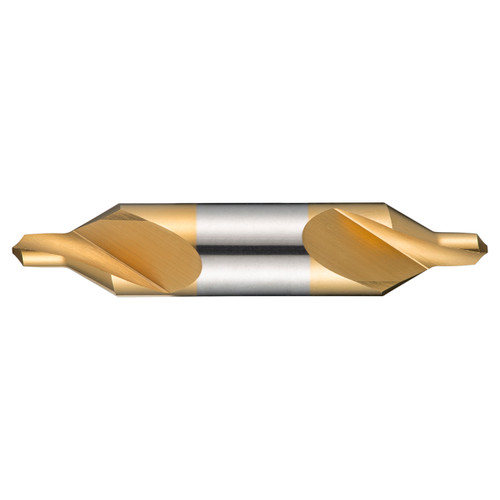

Centre drill (combined drill and countersink) with 60 Degree straight conical form, double ended and cylindrical body, 2.00mm drill diameter, a body diameter of 5.00mm and an overall length of 40mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and TiN coating for machining free machining, plain carbon and alloy steel and grey cast-iron.
Product Specifications
| EDP Number | 0030998 |
| Usable Length | 1 |
| Connection Diameter (Inch) | 0.1969" |
| Cutting Diameter (Inch) | 0.0787" |
| Overall Length (Inch) | 1.5748" |
| Point Angle | 118 |
| Material Code | HSS |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Surface Color | Gold |
| Country of origin | France |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Drill Point Diameter (Inch):
5/64"
Drill Point Diameter (Decimal Inch):
0.0787"
Drill Point Diameter (mm):
2mm
Included Angle:
118 Degree
Material:
HSS
Finish/Coating:
TiN
Cutting Direction:
Right Hand
Overall Length (Inch):
1-37/64"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40mm
interval quantity:
1
