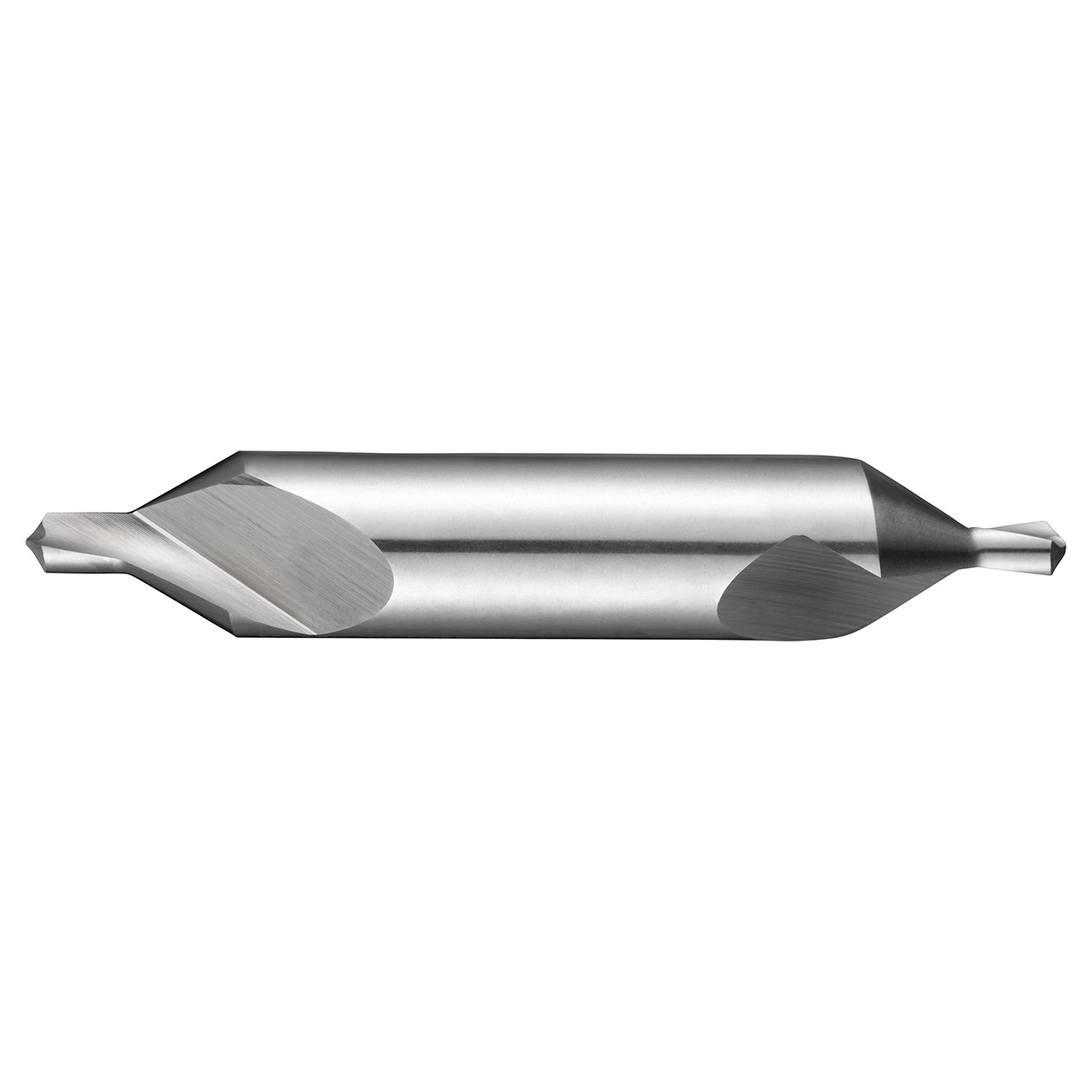

Dormer A2011.5X5.0 | 0.0591" Diameter x 1.5748" OAL Bright Coated Combination Drill & Countersink

$8.10
Brand:
Dormer
Drill Point Diameter (Inch):
1/16"
Drill Point Diameter (Decimal Inch):
0.0591"
Drill Point Diameter (mm):
1.5mm
Included Angle:
122°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
1-37/64"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40mm
SKU:
10110413
UPC:
7320760138885
Weight:
0.25 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.50mm drill diameter, a body diameter of 5.00mm and an overall length of 40mm, according to Dormer standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.


Product Specifications
EDP Number0138885
Usable Length1
Connection Diameter (Inch)0.1969"
Cutting Diameter (Inch)0.0591"
Overall Length (Inch)1.5748"
Point Angle122
Material CodeHSS
Drill LengthShort
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Dormer
Drill Point Diameter (Inch):
1/16"
Drill Point Diameter (Decimal Inch):
0.0591"
Drill Point Diameter (mm):
1.5mm
Included Angle:
122°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
1-37/64"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40mm
