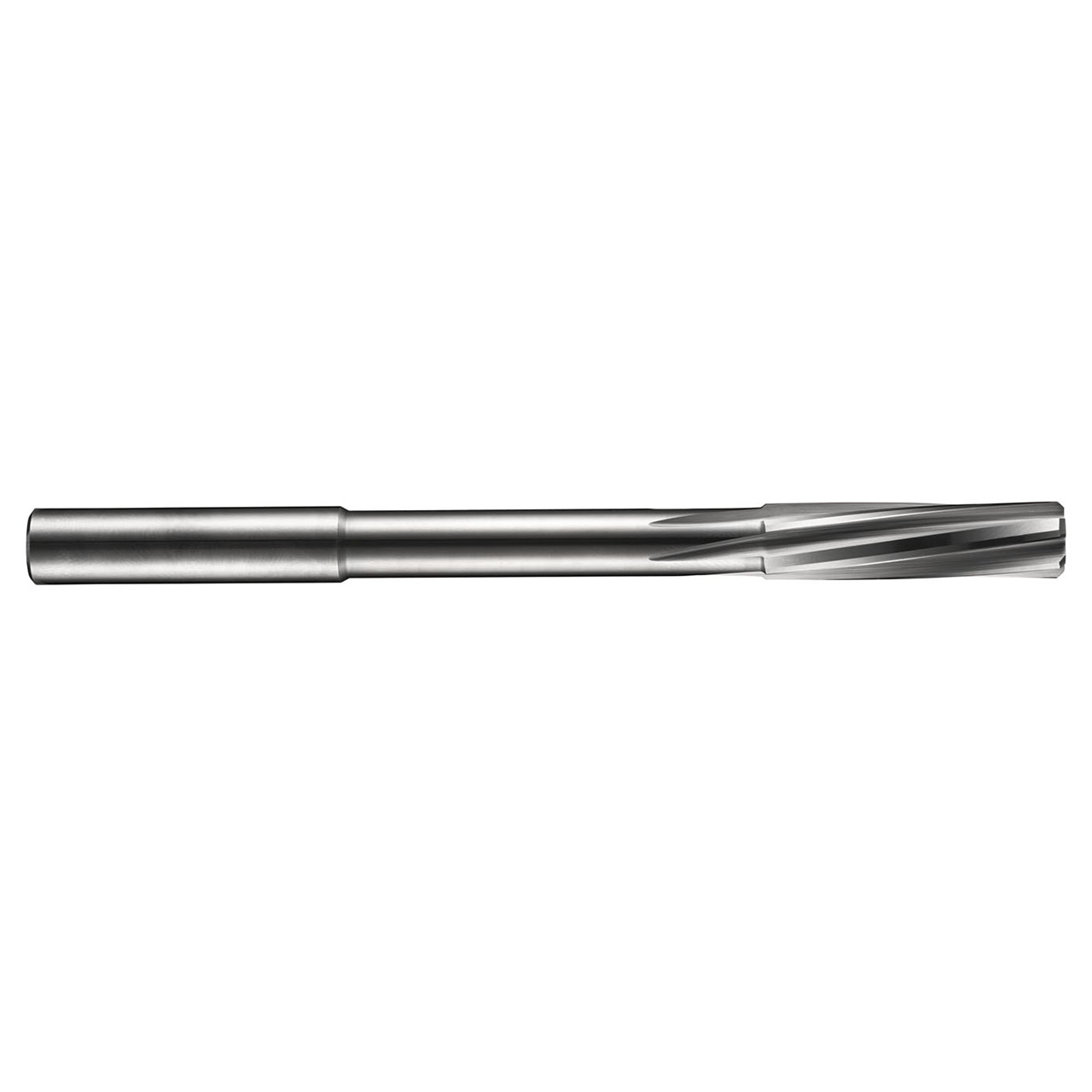

Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 12.03mm with an overall length of 151mm, a flute length of 44mm and 106mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 12F8 or 12H9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
| EDP Number | 0421826 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.4736" |
| Body Length (mm) | 45mm |
| Overall Length (Inch) | 5.9449" |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
