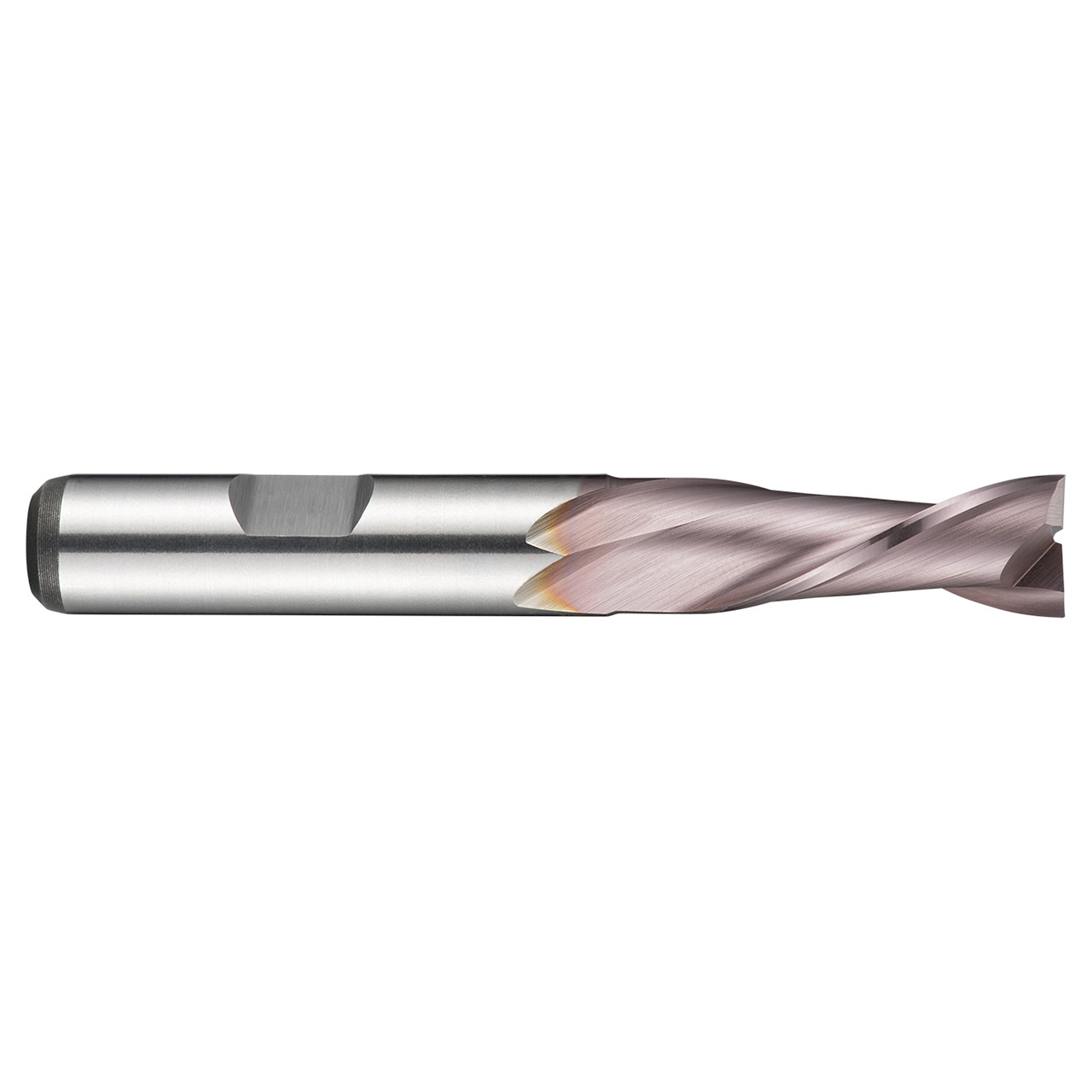

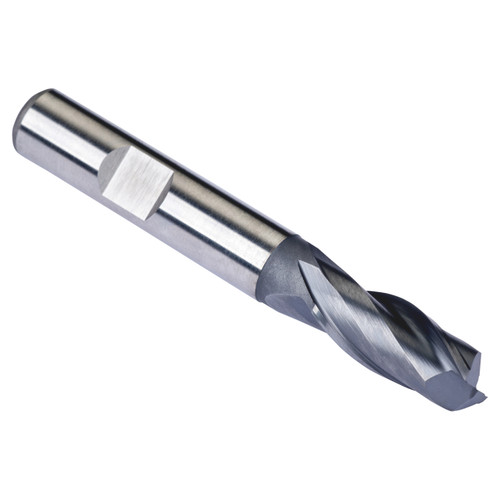

Dormer C13914.0 | 0.5512" Diameter x 3.2677" OAL 2 Flute TiCN Coated Slot Drill

$68.97
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114214
Weight:
2.49 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Dormer's C139 milling cutters have a medium flute length for high rigidity when milling standard slots and an accurate diameter which means standard keyway slots can be milled to a P9 tolerance. They are manufactured from powder metal high speed cobalt which means longer tool life and better performance. Couple this with the titanium carbo nitride coating which further improves tool life and gives great performance when threading hard and abrasive materials and you have a very versatile tool, capable of ramping, plunging and profile milling in steels, stainless steels and cast iron.


Product Specifications
Usable Length (mm)37.5mm
Max Depth of Cut (mm)26mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.5512"
Overall Length (Inch)3.2677"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingTiCN
Surface ColorPurple
