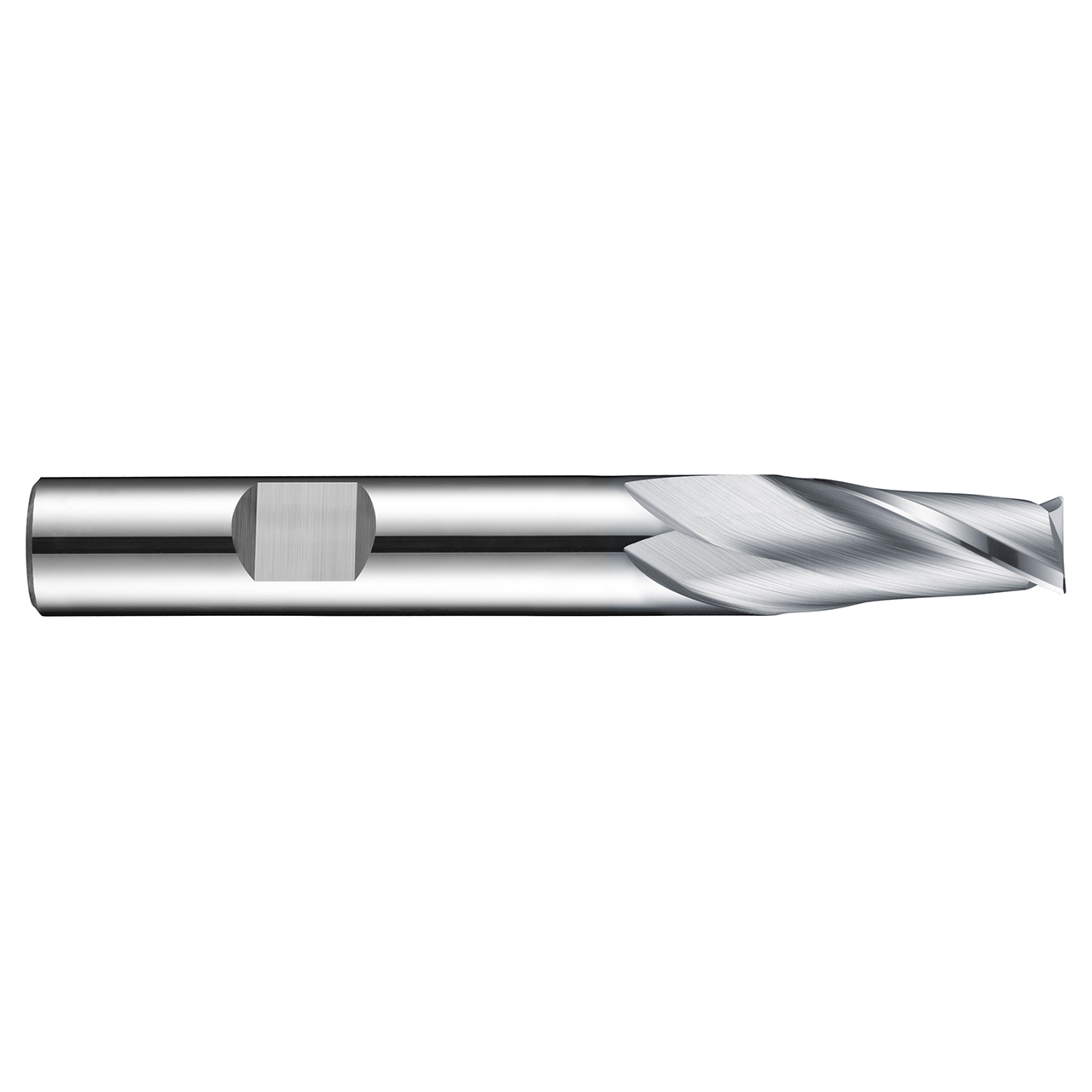

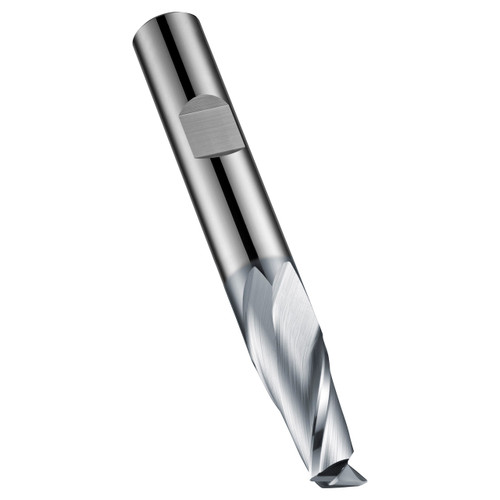

Dormer 5983553 | 14.00mm Drill Size x 14.00mm Shank x 22.00mm Maximum Depth of Cut x 83.00mm OAL x 28 Degree Helix Angle 2 Flute AlCrN Coated HM S812HB Slot Drill

SKU: 10114510 Weight: 0.36 LBS Minimum Purchase: 1 unit
UPC: 7320760642122
$283.00 $169.80
(You save $113.20)
Shipping: Calculated at Checkout

About This Item

S812HB 2-flute milling cutters are manufactured from premium carbide for superior performance and extended tool life. The high rigidity of the medium length flute means they are great for milling standard keyway slots and are capable of achieving P9 tolerance, thanks to the accurate diameter. The special Alcrona coating makes the tools perfect for milling materials which are difficult to machine and further improves the tool life. The versatility of S812HB 2-flute slot drills means they can be used for plunging, ramping and profile milling, and are suitable for milling steels, cast iron, non-ferrous materials and stainless steels.


Product Specifications
Max Depth of Cut (mm)22mm
Connection Diameter (Inch)0.5512"
Cutting Diameter (Inch)0.5512"
Overall Length (Inch)3.2677"
Material CodeHM
Radial Rake Angle9
No of Flute2
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
Country of originItaly
