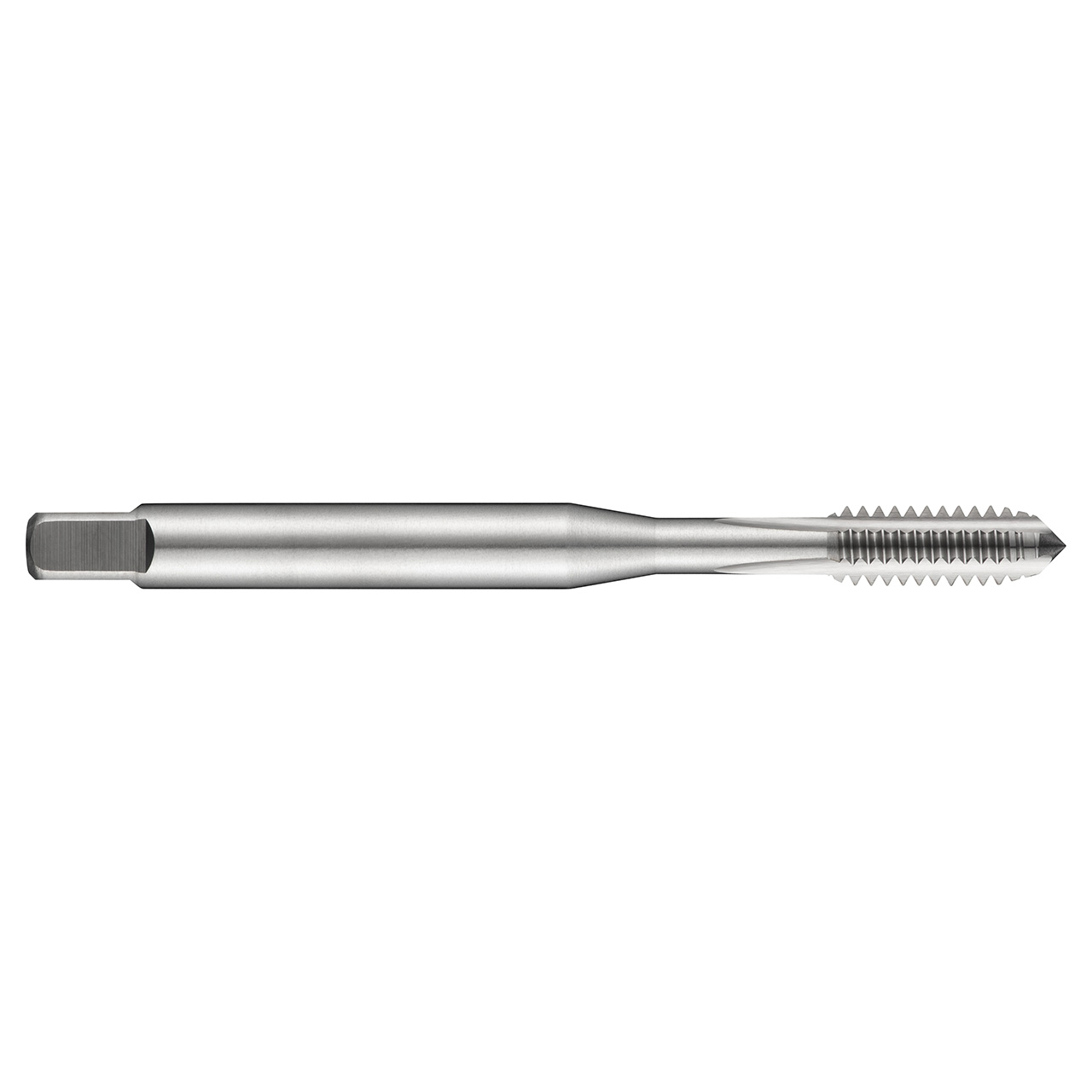

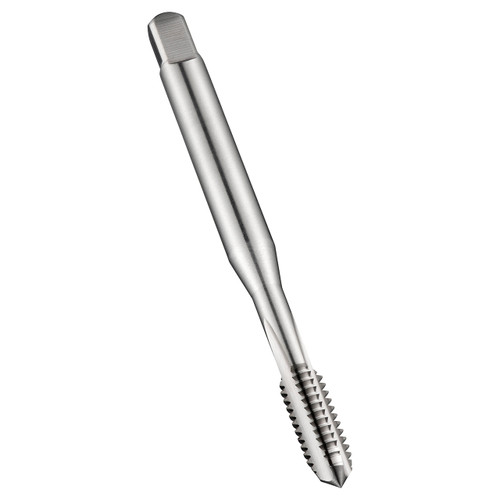

Dormer E2258-32 | 0.1772" Diameter x 2.4803" OAL 3 Flute Bright Coated Straight Flute Tap

$27.81
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022383
UPC:
7320760086209
Weight:
0.32 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 8 with 32 TPI and 2B class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.1772"
Overall Length (Inch)2.4803"
Clamping Width (mm)3.4mm
Thread Diameter (mm)4.166mm
No of Flutes3
Usable Length (mm)21mm
Clamping Length8
Thread Diameter Size8
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormUNC-Unified Coarse
