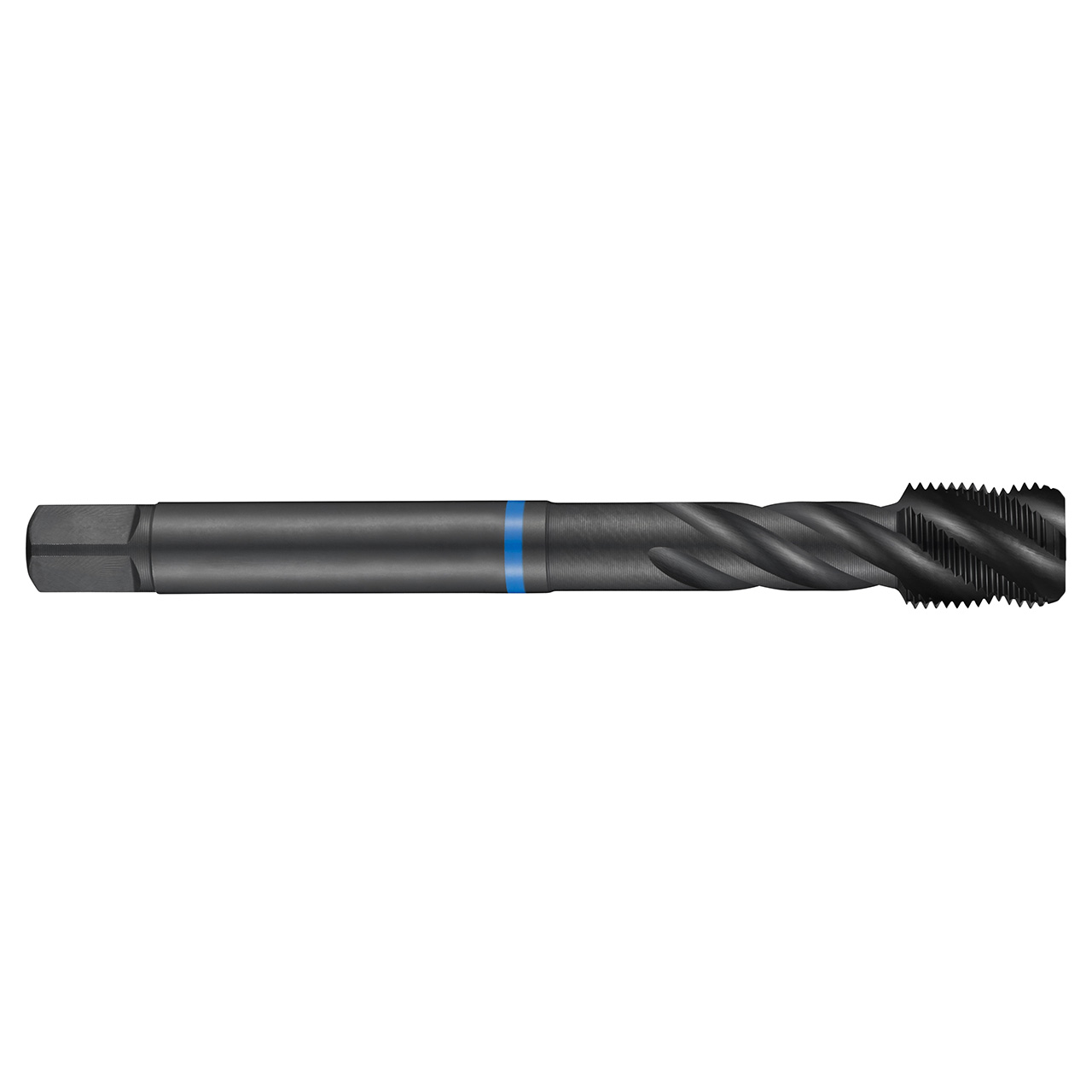

Dormer E383M16X1.5 | 0.4724" Diameter x 3.937" OAL 5 Flute Steam Tempered Coated Spiral Flute Tap

$182.00 $81.90
(You save $100.10)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026662
UPC:
7320760664650
Weight:
3.00 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M16 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel.


Product Specifications
Connection Diameter (Inch)0.4724"
Overall Length (Inch)3.937"
Clamping Width (mm)9mm
No of Flutes5
Flute Helix Angle40
Thread Pitch (mm)1.5mm
Clamping Length12
Thread Diameter Size16
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormMF-Metric fine
