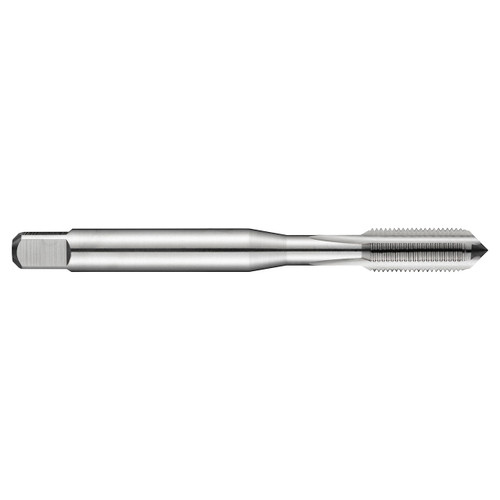

Dormer E501M10NO1 | 0.3937" Diameter x 3.1496" OAL 3 Flute Bright Coated Straight Flute Tap

$32.10
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023720
UPC:
7320760159873
Weight:
1.45 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute hand tap NO1 with a 6-8xP taper lead, for left hand ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0mm shank and 8.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.3937"
Overall Length (Inch)3.1496"
Clamping Width (mm)8mm
No of Flutes3
Usable Length (mm)34mm
Thread Pitch (mm)1.5mm
Clamping Length11
Thread Diameter Size10
Threading Length (mm)18mm
Material CodeHSS
Thread Tolerance Class6H
Cutting DirectionLeft Hand
CoatingBright
Surface ColorBright Silver
Thread FormM-Metric coarse
