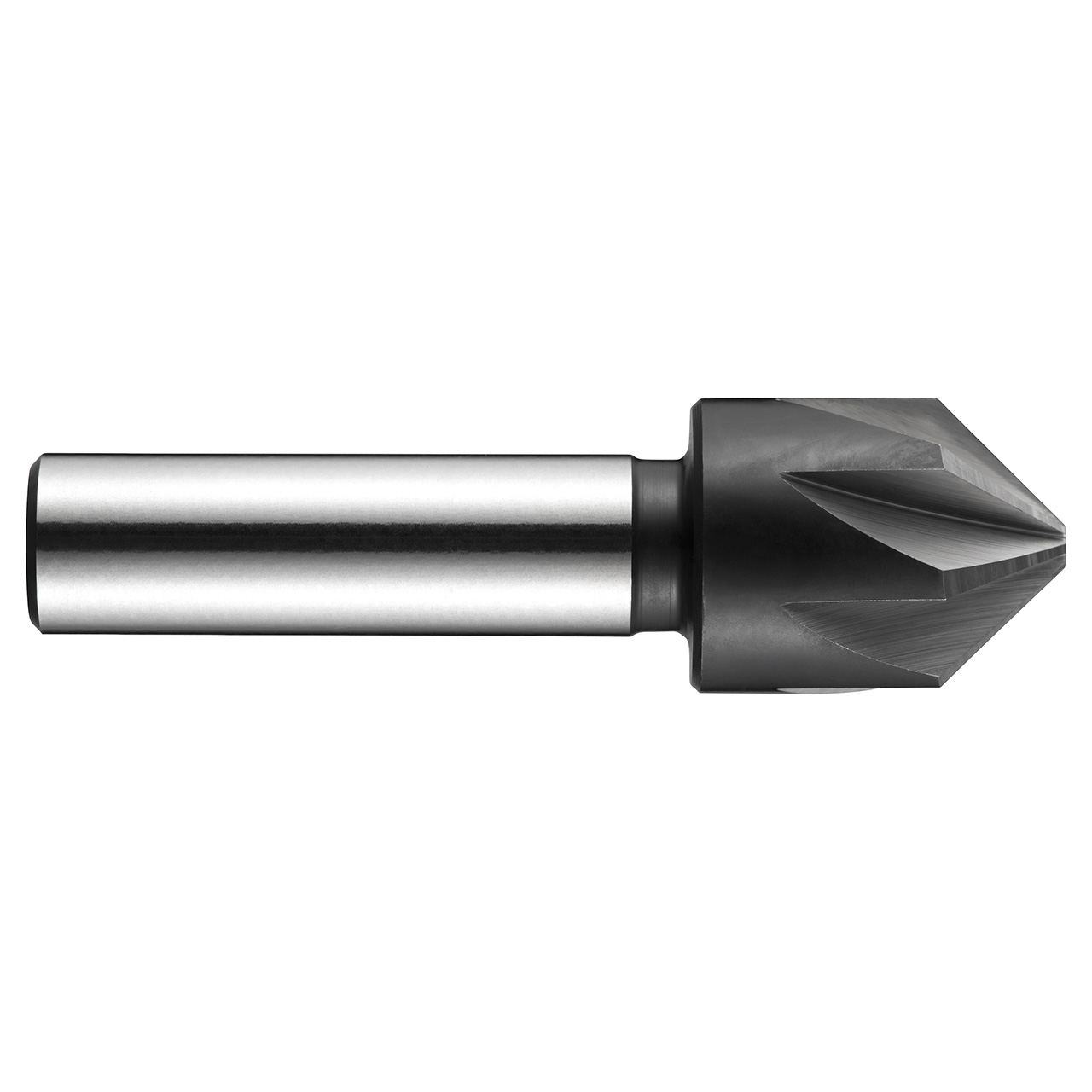

Rose pattern countersink with 7-flutes, 90° chamfering angle, maximum diameter 16.00mm with an overall length of 56mm and a head length of 19.5mm and 10mm straight shank, according to DIN 335 A standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard bright finish for machining tool steel, grey cast-iron, cast aluminium.
Product Specifications
| EDP Number | 0108277 |
| Flute Count | 7 |
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.2047" |
| Point Angle | 90 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Material:
HSS
Finish/Coating:
Bright
Number of Flutes:
7
