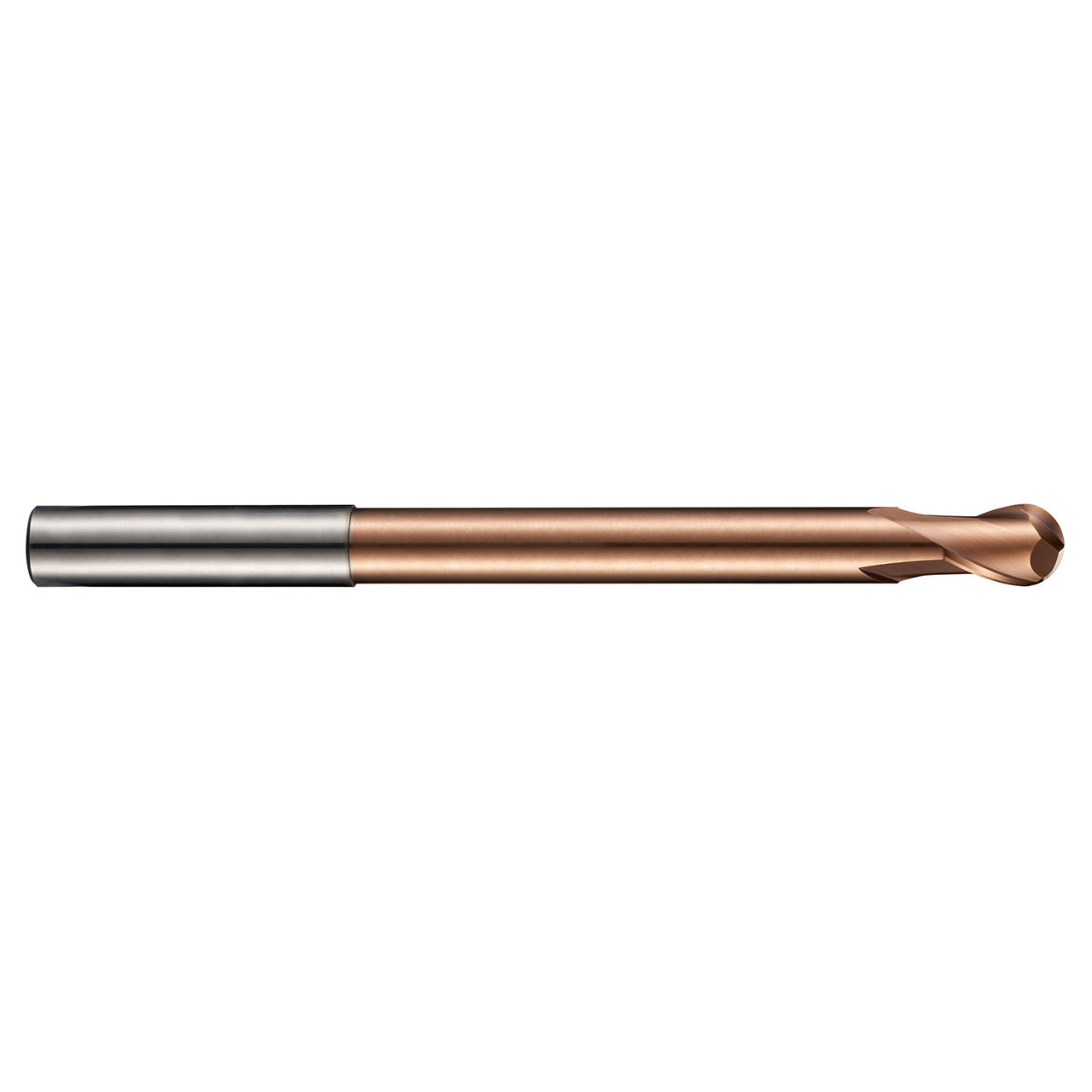

Dormer S5335.0XD5 | 0.1969" Diameter x 3.937" OAL 2 Flute TiSiN Coated Ball End Mill

$88.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140887
Weight:
1.09 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S533 2-flute slot drills from Dormer are just what you need for high speed machining in hardened tool steel up to 63HRC. They have extra long reach in a 2-flute design for good rigidity, increasing strength and reducing vibration in areas difficult to reach, whilst the ball nose geometry makes them great for high performance contouring of complex surfaces. S533 slot drills are manufactured from premium carbide for superior performance and longer tool life, further enhanced by the titanium silicon nitride coating, which also improves performance when milling difficult to machine materials.


Product Specifications
Usable Length (mm)50mm
Max Depth of Cut (mm)9mm
Connection Diameter (Inch)0.1969"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle-10
No of Flute2
Flute Helix Angle30
Corner Radius (mm)2.5mm
CoatingTiSiN
Surface ColorRose Gold
