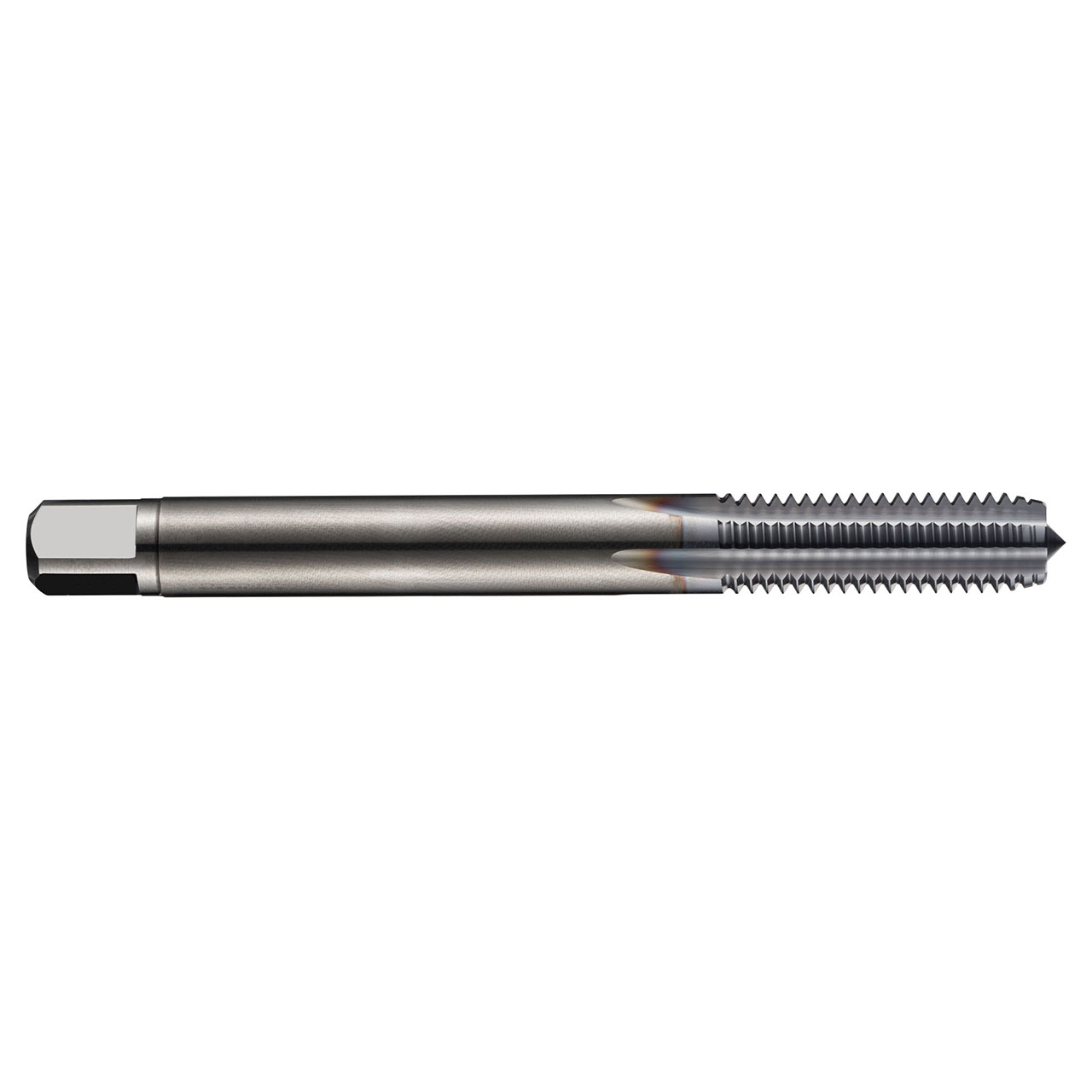

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, solid carbide with TiCN coating for 2xD through or blind hole threading in hardened steel >55HRC.
Product Specifications
| Connection Diameter (Inch) | 0.1772" |
| Overall Length (Inch) | 2.4803" |
| Clamping Width (mm) | 3.4mm |
| No of Flutes | 5 |
| Thread Pitch (mm) | 0.7mm |
| Clamping Length | 6 |
| Thread Diameter Size | 4 |
| Threading Length (mm) | 11mm |
| Material Code | HM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiCN |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Purple |
| Thread Form | M-Metric coarse |
