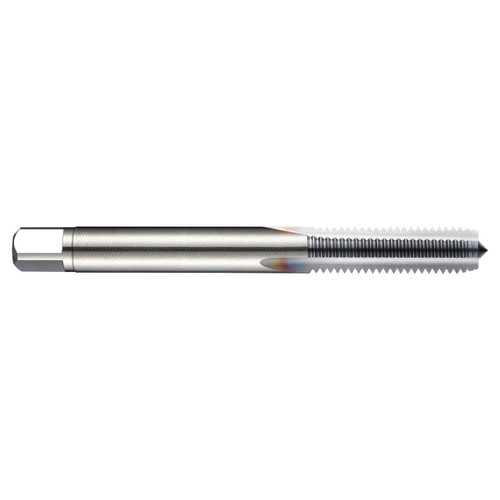

Thread forming tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 4.5mm shank and 3.4mm square drive, solid carbide with TiCN coating for 3xD through or blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 0.1772" |
| Overall Length (Inch) | 2.4803" |
| Clamping Width (mm) | 3.4mm |
| No of Flutes | 5 |
| Thread Pitch (mm) | 0.7mm |
| Clamping Length | 6 |
| Thread Diameter Size | 4 |
| Threading Length (mm) | 13mm |
| Material Code | HM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiCN |
| Tap Chamfer Style | C 2-3.5 |
| Surface Color | Purple |
| Thread Form | M-Metric coarse |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Pitch (mm):
0.70mm
Thread Limit:
6HX
Number of Flutes:
5
Finish/Coating:
TiCN
Material:
HM
Thread Standard:
DIN 2174
