Product Specifications
| EDP Number | 99721 |
| Tool Holder Size | 9/11-25 |
| Centering Plate | CP-1 |
| Mounting Screw | MS-1 |
| Cutting Width (mm) | 30mm |
| Overall Length (mm) | 129mm |
| Insert Width (mm) | 9mm |
| Insert Thickness (mm) | 90mm |
| Shank Diameter 1 (mm) | 25mm |
| Shank Diameter 2 (mm) | 8mm |
| Body Diameter (mm) | 30mm |
| Torx Driver | T08 |
| Minimum Hole (mm) | 9mm |

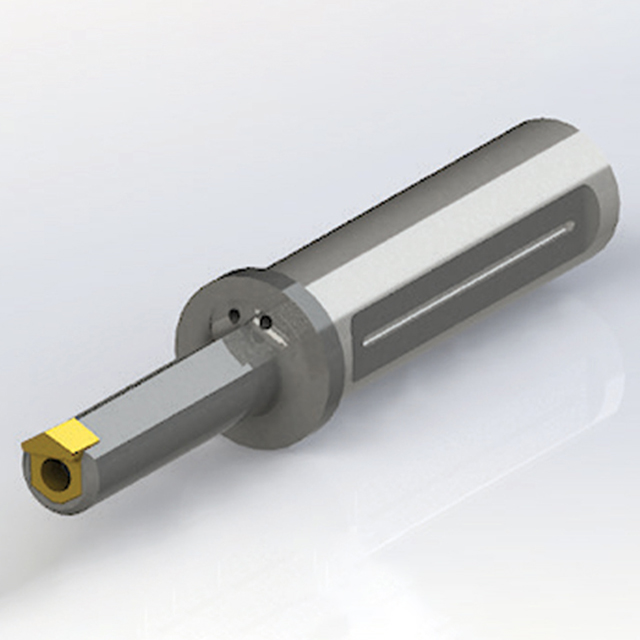

| Product Type | Indexable Broaching Toolholder |
