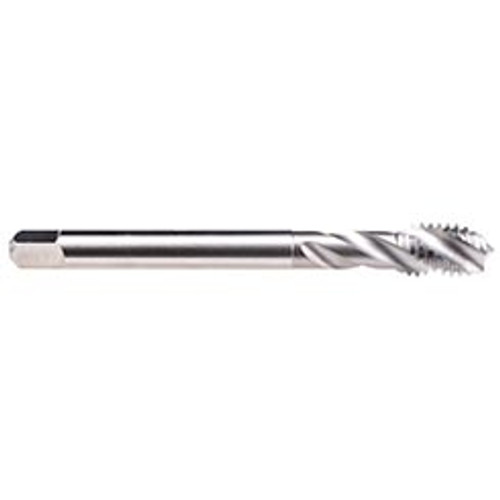

Features:
- The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
- The fast spiral flute (35 Degree) provides good chip removal from blind holes
Product Specifications
| Chamfer | 2-3 P |
| Chamfer Form | C |
| Pitch | 56 |
| Size | 2 |
| Thread Limit | 2B |
| Thread Standard | UNC |
| Application | Steel, Copper Alloys |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 35 Degree |
| Shank Diameter (mm) | 0.141" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 1.772" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
