Features:

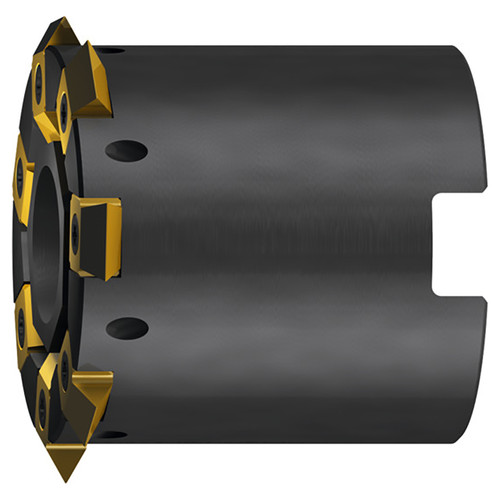

- Gigant- Modular indexable insert body that is interchangeable for large diameter threading
- Circular thread milling bodies for 4-tooth indexable inserts Gr15
- Radial coolant channels
- Interchangeable body design with high insert count for smoother cutting action
Product Specifications
| Manufacturer Part Number | GZ352005 |
| Cutting Diameter (mm) | 94.00mm |
| Nose Diameter (mm) | 78.00mm |
| Thread Diameter Size | #15 |
| Overall Length (mm) | 60.00mm |
| Projection Length (mm) | 55.00mm |
| Shank Standard | DIN 138 |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | Steel |
| Coating | Bright |
| Tool Type | Gigant Modular Body |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
94.00mm
Nose Diameter (mm):
78.00mm
Shank Diameter (mm):
32.00mm
Cutting Edge Material:
Steel
Finish/Coating:
Bright
Tool Type:
Gigant Modular Body
Overall Length (mm):
60.00mm
interval quantity:
1
