Features
- DIN Coolant option - standard
- All Ground Body
- BT50 Premium balanced to 25,000 RPM
- BT30/BT40 Premium balanced to 30,000 RPM
- Threaded through holes for a back-up screw (tool stop) or coolant through when removed

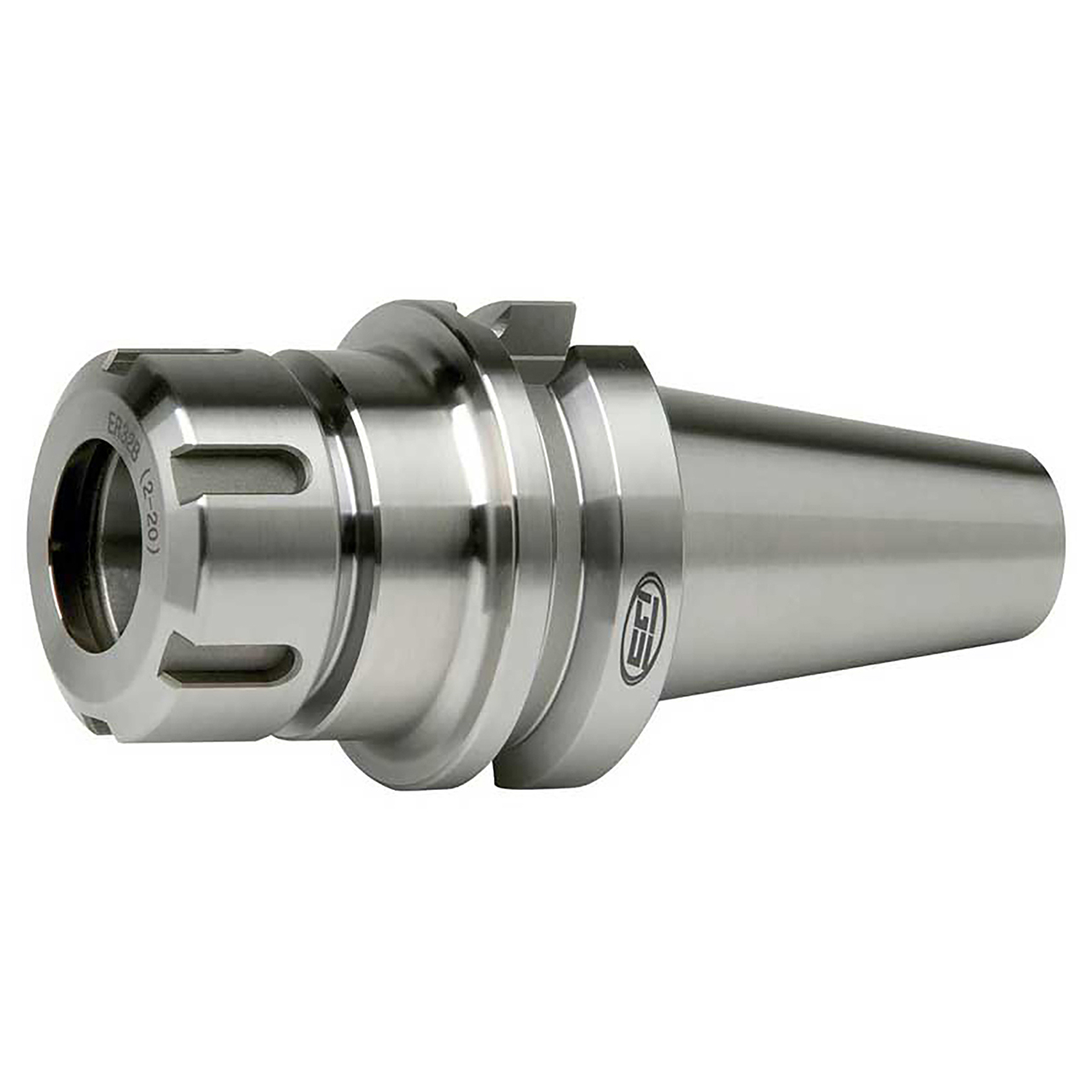

Product Specifications
| Manufacturer Part Number | 532202 |
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (Decimal Inch) | 5" |
| Minimum Collet Capacity (Decimal Inch) | 0.118" |
| Maximum Collet Capacity (Decimal Inch) | 1.023" |
| Balanced to (RPM) | 30000 RPM |
| Collet Nut Diameter (Decimal Inch) | 2.5" |
| Seat Depth (Decimal Inch) | 1.5" |
| Tightening Torque (Nm) | 219.6 |
| Product Type | Collet Chuck |
