Features
- Straight shank tooling may be used to extend tooling reach for extended length operations
- This option is less costly than extended length integral shank tooling
- They may be used with any size machining center or lathe
- When loaded into larger holders, their reduced O.D. permits tapping applications within large holes or whenever tight clearances are encountered

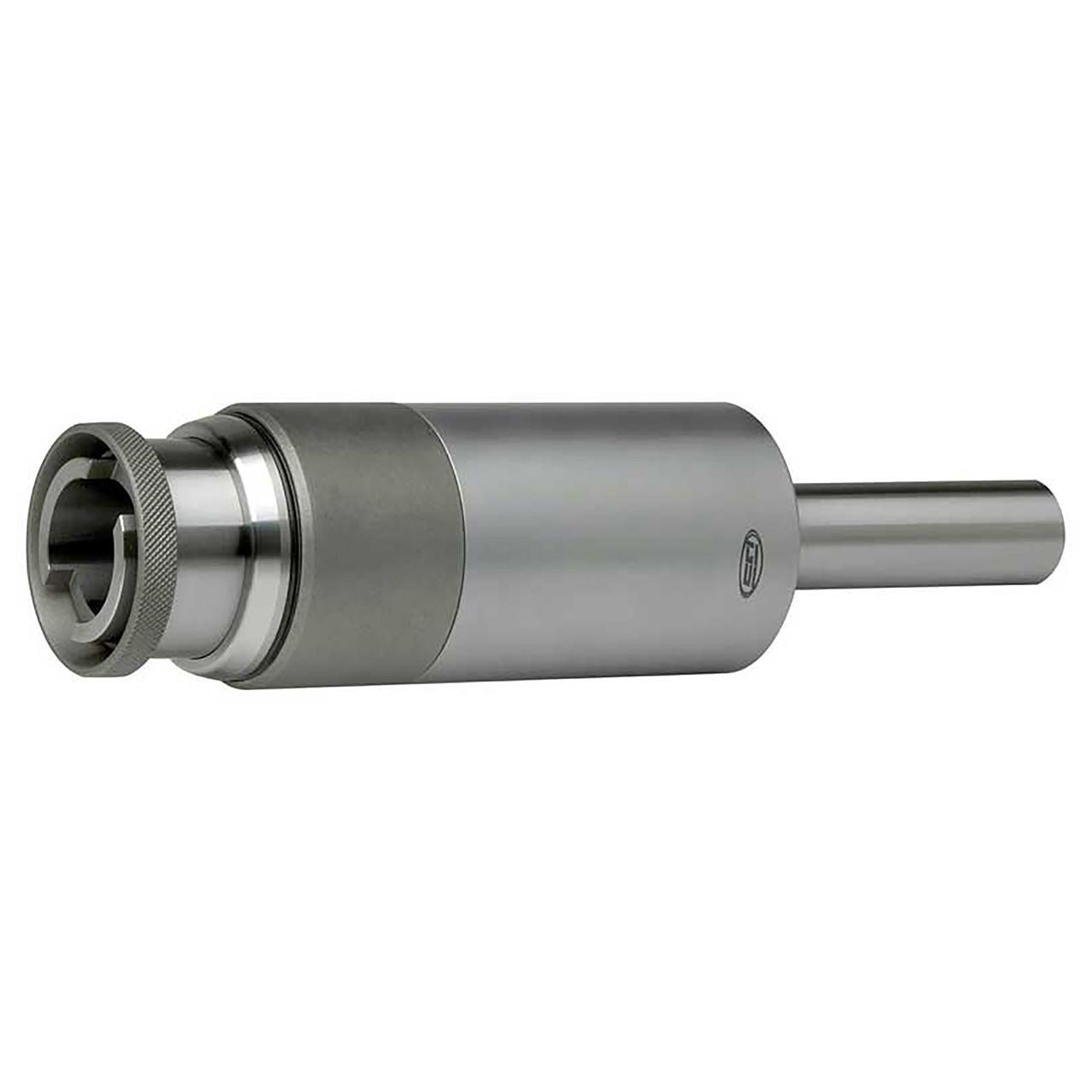

Product Specifications
| Manufacturer Part Number | 534512 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1" |
| Projection (Decimal Inch) | 5.55" |
| Tapping Style | Tension/Compression |
| Nose Diameter (Decimal Inch) | 2" |
| ANSI Tap (Inch) | #0-9/16" |
| System | #2 |
| Shank Length (Decimal Inch) | 3.5" |
| Tension/Compression (Inch) | 0.85/0.49" |
| NPT (Inch) | 1/4-1/2" |
| Product Type | Tapping Chuck |
