Product Specifications
| Manufacturer Part Number | 714430-C6 |
| Cutter Diameter (Decimal Inch) | 0.030" |
| Length of Cut (Decimal Inch) | 0.300" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Corner Radius (Decimal Inch) | 0.005" |
| Angle per Side (Degree) | 10 Degree |
| Included Angle (Degree) | 2 Degree |
| Number of Flute | 3 |
| LOC Multiple | (10x) |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | C6 |

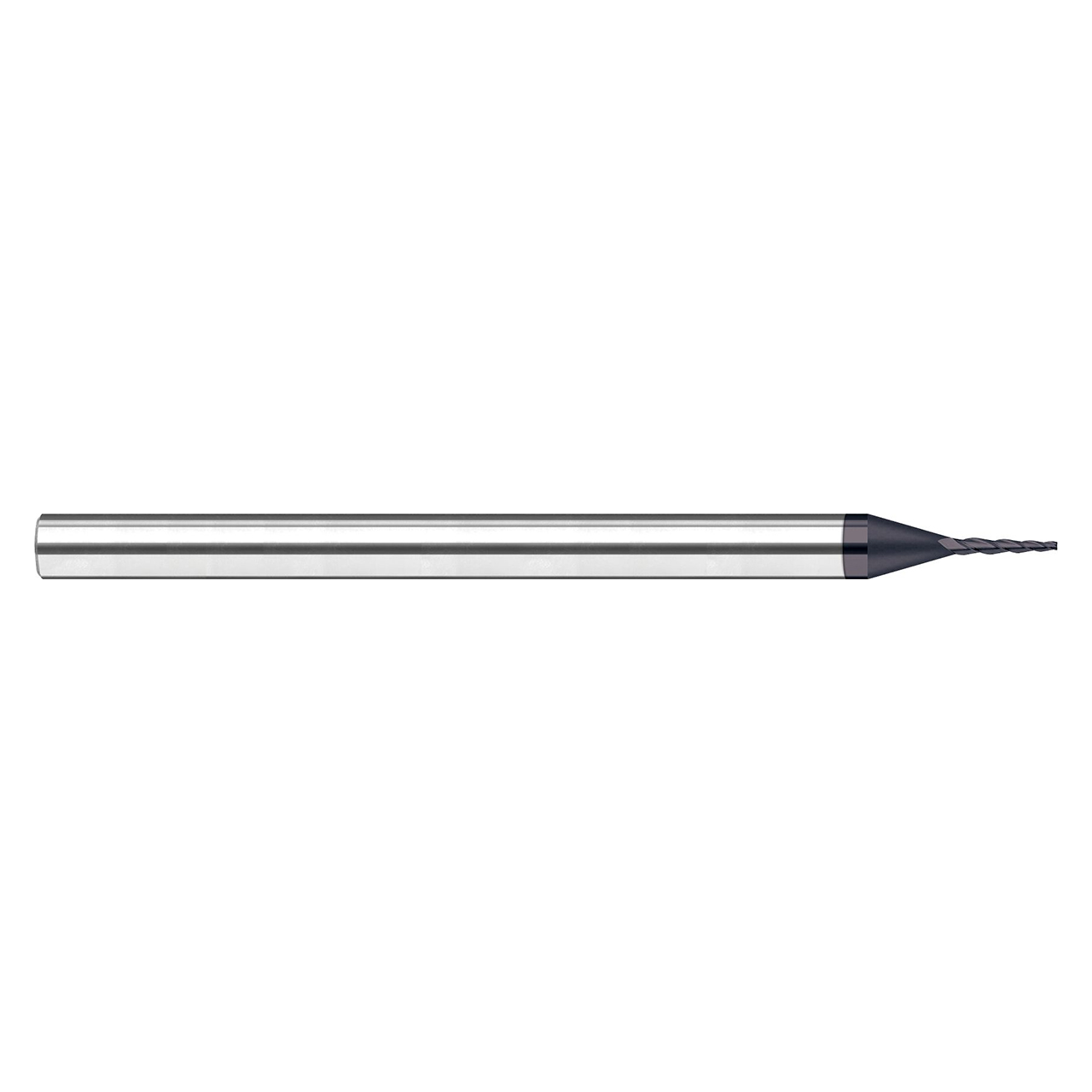

| Product Type | Tapered Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0300"
Mill Diameter (mm):
0.76mm
Number of Flutes:
3
Corner Radius (Decimal Inch):
0.0050"
Corner Radius (mm):
0.13mm
Length of Cut (Inch):
19/64"
Length of Cut (Decimal Inch):
0.3000"
Length of Cut (mm):
7.62mm
Finish/Coating:
C6
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1870"
Shank Diameter (mm):
4.75mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Interval quantity:
1
