- Oversized, common shanks to maintain strength, stiffness, and accuracy
- Straight flutes for through and blind hole applications
- h6 shank tolerance for high precision tool holders
- CNC ground in the USA
- Solid carbide
Product Specifications

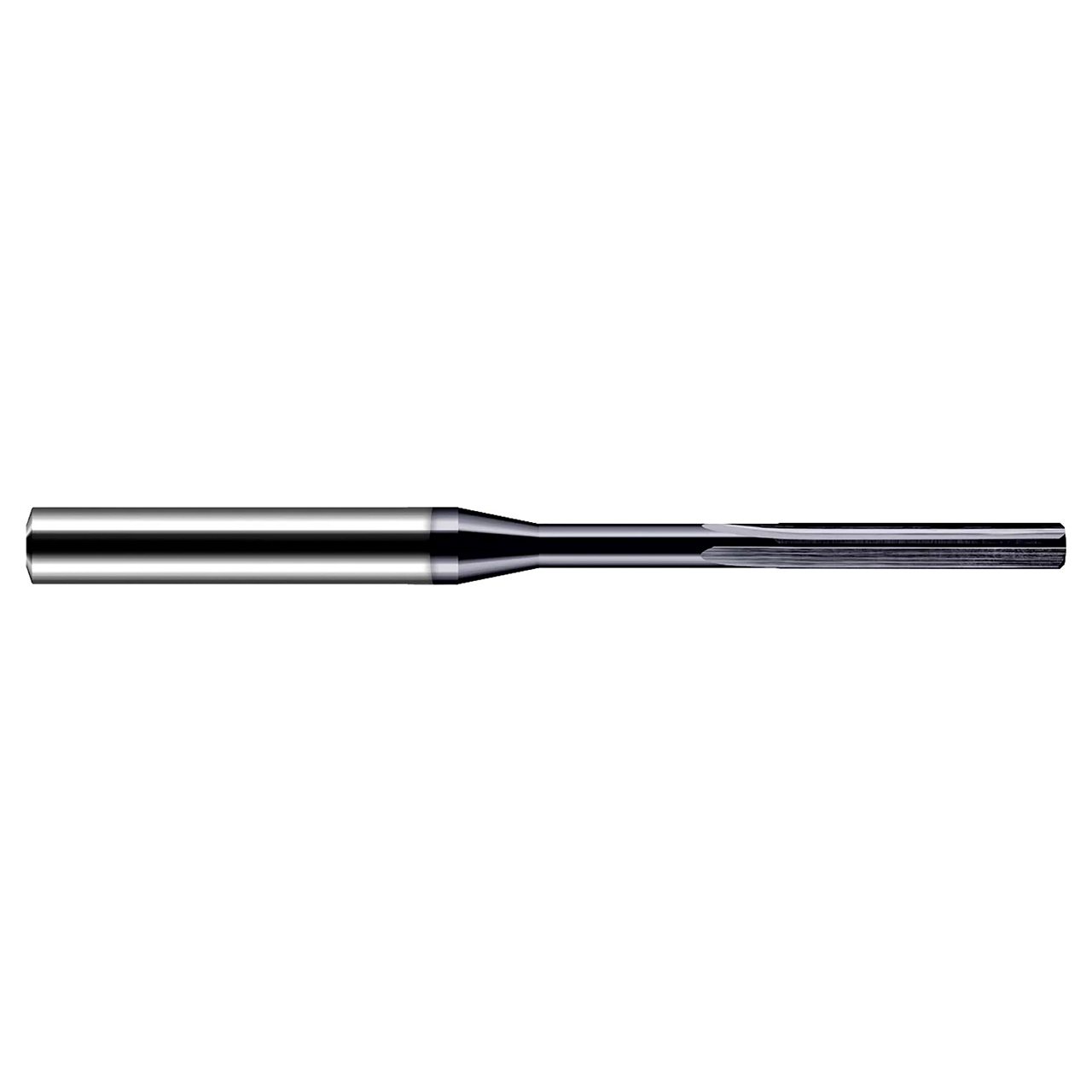

| Tool Number | RSB1270-C3 |
| Reamer Diameter (Inch) | 0.1270" |
| Neck Diameter (Inch) | 0.1230" |
| Overall Reach (Inch) | 1.5000" (1-1/2) |
| Overall Length (Inch) | 3.0000" (3) |
| Chamfer Length (Inch) | 0.0114" |
| Angle per Side | 45 |
| Included Angle | 90 |
| Flutes | 4 |
| LOC Multiple | 6x |
| Reach Multiple | 12x |
| Margin Length (Inch) | 0.7500" (3/4) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Harvey Tool
Reamer Diameter (Decimal Inch):
0.1270"
Neck Diameter (Decimal Inch):
0.1230"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Chamfer Length (Decimal Inch):
0.0114"
Overall Reach (Inch):
1-1/2"
Overall Reach (Decimal Inch):
1.5000"
Included Angle:
90 Degree
Finish/Coating:
C3
Number of Flutes:
4
