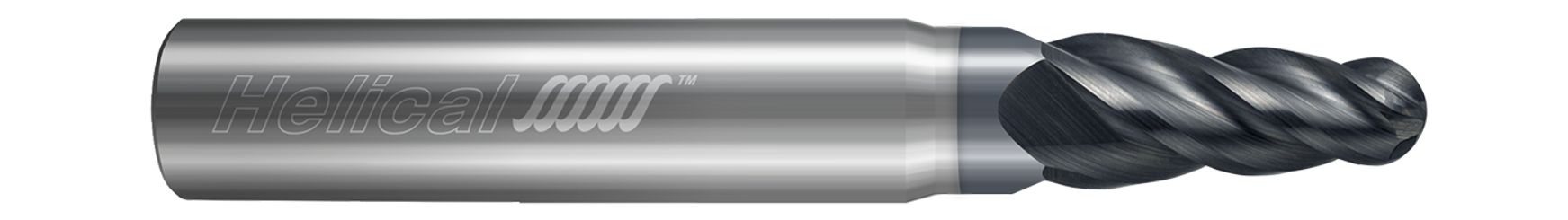

This 4 Flute Ball End Mill features a tapered profile, designed for light profiling and finishing applications in mold and die pockets and other tapered wall applications, and a variable pitch design for increased feed rates and reduced harmonics.
- Tapered profile designed for use in mold and die pockets and other tapered wall applications
- Engineered for excellent performance in light profiling and finishing applications
- 4 flute variable pitch design for reduced harmonics and increased feed rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Corner Radius (Inch) | 0.1250" (1/8) |
| Included Angle | 10 |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Finish/Coating | APLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Decimal Inch):
0.3623"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Included Angle:
10 Degree
Number of Flutes:
4
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Length (Inch):
1-1/2"
Shank Length (Decimal Inch):
1.5000"
Finish/Coating:
Aplus
Center Cutting:
Yes
Through Coolant:
No
