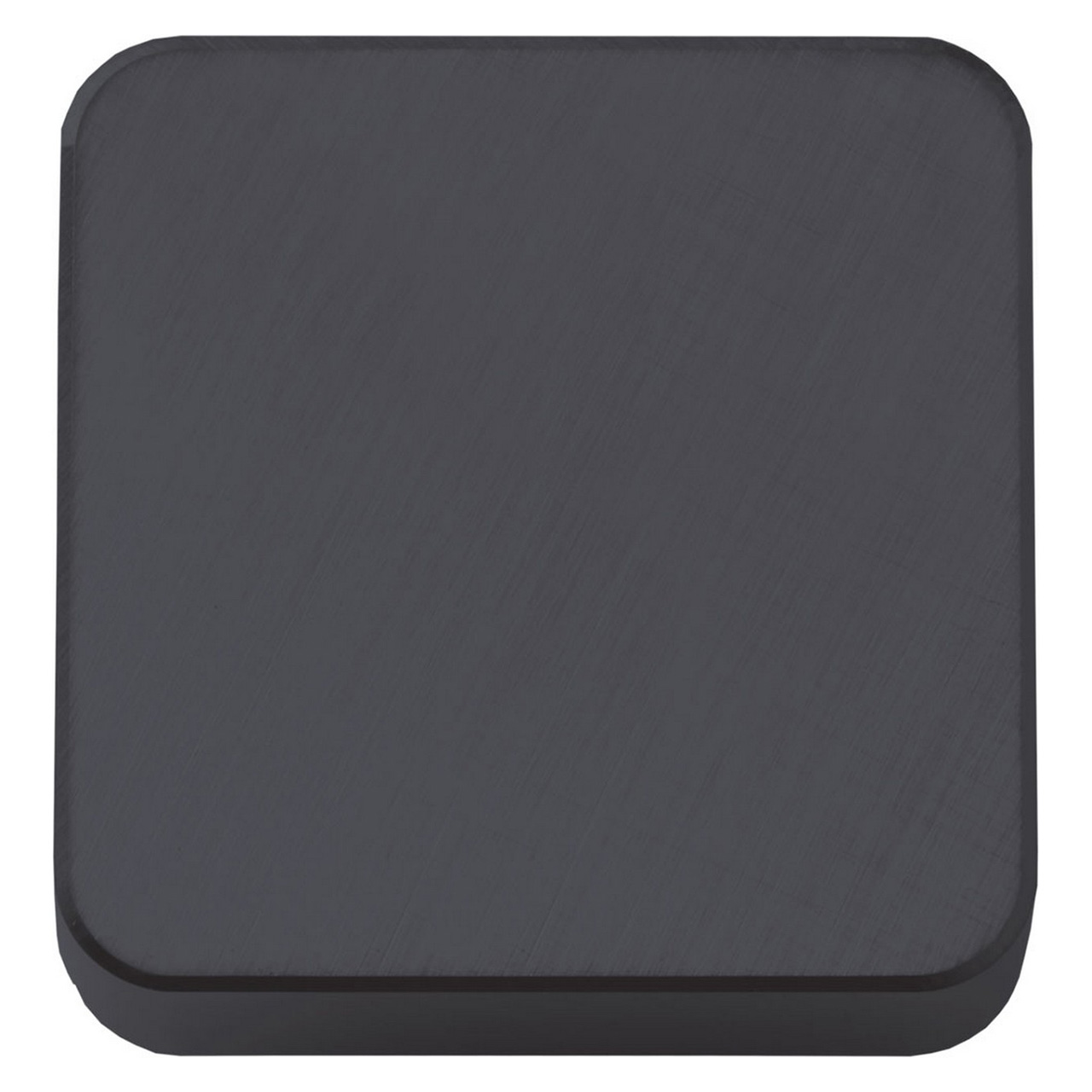

Features:
- Insert for external turning, facing, chamfering, boring
- 8 Cutting edges
- Silicon nitride ceramic (Si3N4)
- Application: Roughing and interrupted machining of cast iron
- Great for stability (with or without coolant)
Product Specifications
| EDP Number | TCX60535 |
| Inscribed Circle (Inch) | 5/8" |
| Inscribed Circle (mm) | 15.875mm |
| Corner Radius (Inch) | 1/16" |
| Corner Radius (mm) | 1.60mm |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.94mm |
| Application | Boring | Chamfering | External Turning | Facing |
| Coating Process | Uncoated |
| Cutting Range | Medium Roughing |
| Hand | Neutral |
| Insert Grade | KS6050 |
| Insert Holding Method | Clamp |
| Insert Shape | 90 Degree Square |
| Insert Included Angle ( Degree) | 90 Degree |
| Insert Size | 554 |
| Material | Ceramic |
| Number of Cutting Edges | 8 |
| Primary Workpiece Material | Gray Cast Iron (K) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
SNG
Insert Size:
554
Material:
Ceramic;Inscribed Circle (Inch)=5/8"""
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3126"
Thickness (mm):
7.94mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.60mm
Manufacturer's Grade:
KS6050
