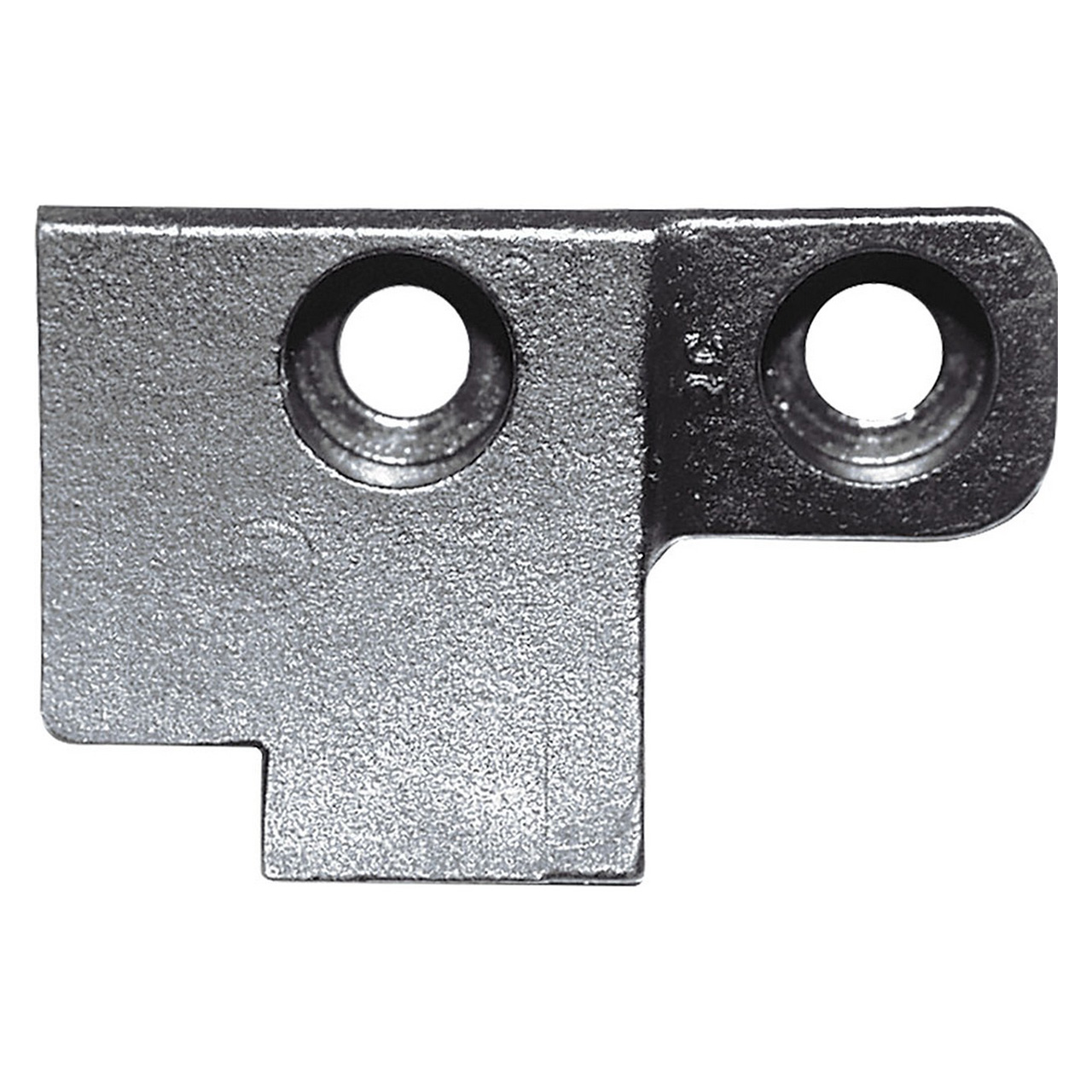

Kyocera Precision Tools THC05071 | SFL501C 0.0102" Max Depth of Cut Steel Face Grooving Blade

$52.44
Brand:
Kyocera Precision Tools
Minimum Groove Width (Decimal Inch):
1.9685"
Minimum Groove Width (mm):
50.00mm
Maximum Depth of Cut (Decimal Inch):
0.0102"
Maximum Depth of Cut (mm):
0.26mm
Blade Style:
SF
Series:
GFV
SKU:
23228827
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Left-Hand face grooving blade
  • 2.7559 inch Maximum face groove diameter
  • Compatible with GVFL 350~450-040C inserts

Product Specifications
EDP NumberTHC05071
Max Depth of Cut (Decimal Inch)0.0102"
Max Depth of Cut (mm)0.26mm
Minimum Face Groove Diameter (Decimal Inch)1.9685''
Minimum Face Groove Diameter (mm)50.00mm
[DAXX] Maximum Face Groove Diameter (Decimal Inch)2.7559"
Maximum Face Groove Diameter (mm)70.00mm
ApplicationFace Grooving
Grooving TypeFace Grooving
HandLeft Hand
Insert Holding MethodTop Clamp
MaterialSteel
