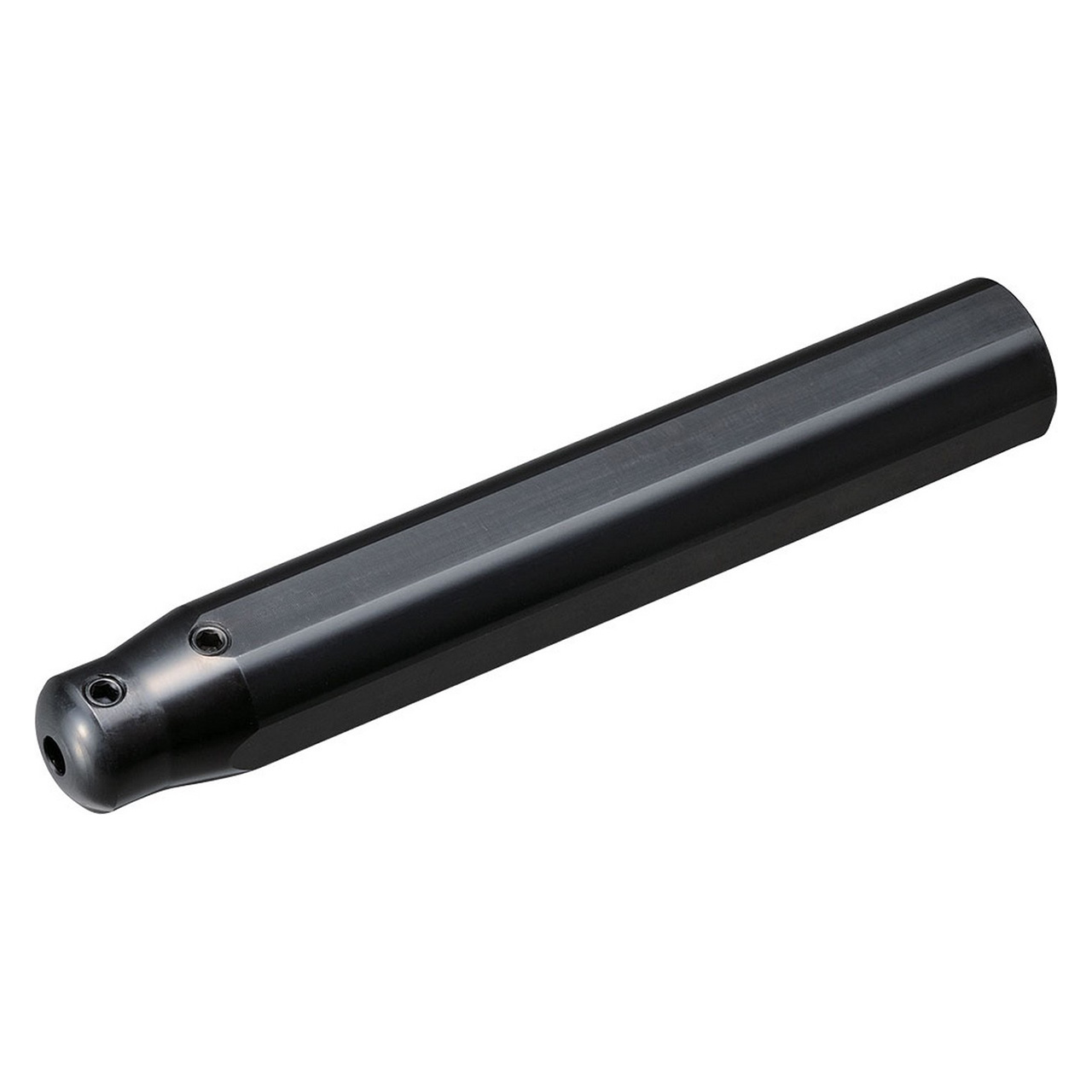

Kyocera Precision Tools THC14454 | EZH07019ST120 0.2756" Diameter x 0.7480" Shank Height Steel Boring Bar Sleeve

$198.58 $164.82
(You save $33.76)
Brand:
Kyocera Precision Tools
Shank Diameter (mm):
19.05mm
Shank Diameter (Decimal Inch):
0.7500"
Bore Diameter (mm):
7.00mm
Bore Diameter (Decimal Inch):
0.2756"
Material:
Steel"
interval quantity:
1
SKU:
23230320
UPC:
Weight:
0.49 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • The EZ Bar system prevents deviation with high-rigidity clamping
  • Non-adjustable cost-effective type for a variety of micro boring applications
  • Compatible with EZB..070- style micro bars

Product Specifications
EDP NumberTHC14454
Cutting Diameter Maximum (mm)0.2756"
Connection Bore Diameter (mm)7.00mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
ApplicationMicro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading
Insert Holding MethodScrew
MaterialSteel
Shank TypeStraight / Cylindrical
