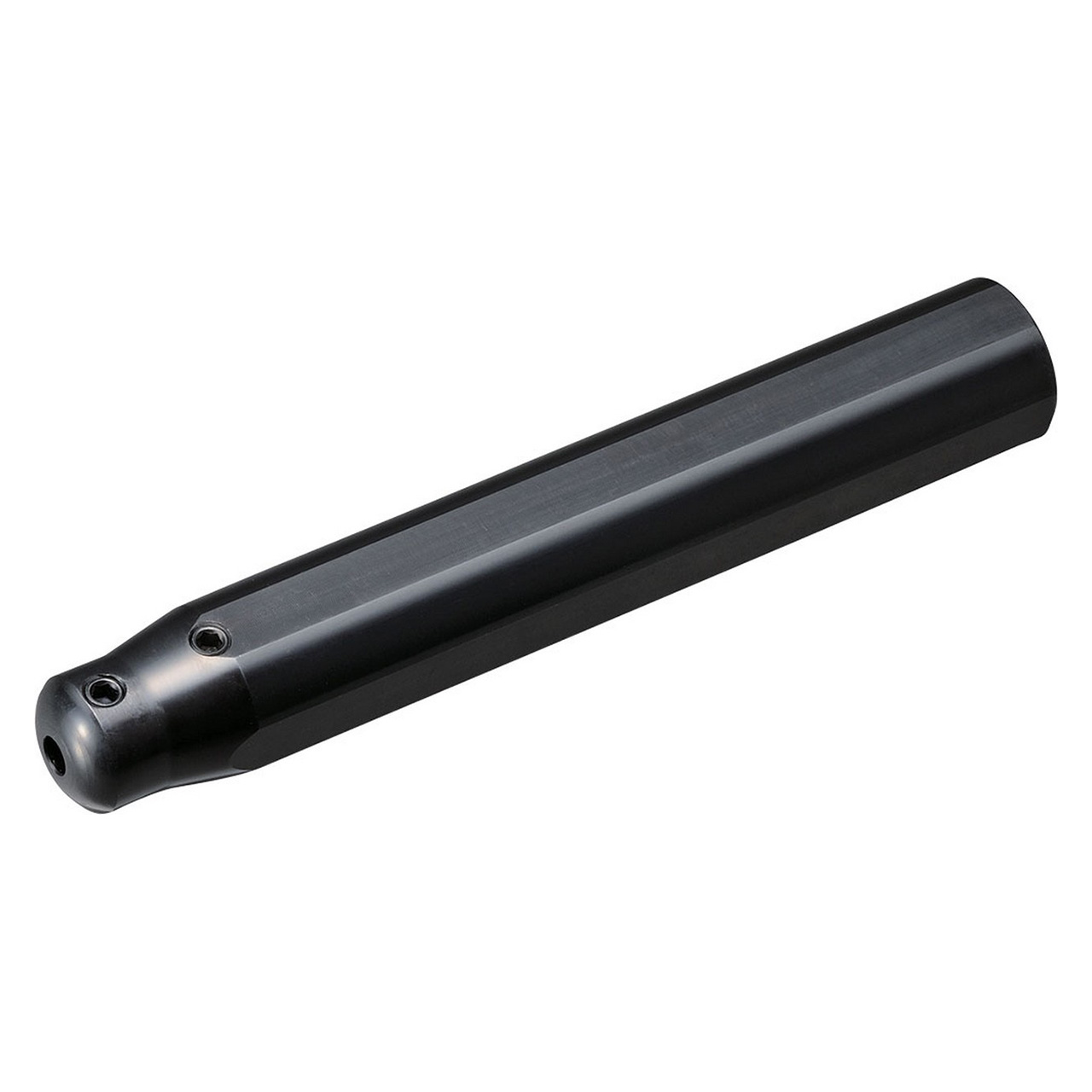

Kyocera Precision Tools THC14437 | EZH05020ST120 0.197" Diameter x 0.748" Shank Height Steel Boring Bar Sleeve

SKU: 23230308 Weight: 0.65 LBS Minimum Purchase: 1 unit
UPC:
$214.36 $177.92
(You save $36.44)
Shipping: Calculated at Checkout

About This Item

Features:

  • The EZ Bar system prevents deviation with high-rigidity clamping
  • Easy adjustment and high precision for a wide range of applications
  • Non-adjustable cost-effective option
  • Compatible with EZBR050, EZVBR050-, EZGR050-, EZFGR050-, EZTR050-, 050X--060EZP style micro bars

Product Specifications
EDP NumberTHC14437
Cutting Diameter Maximum (mm)0.1969"
Connection Bore Diameter (mm)5.00mm
Connection Diameter (Decimal Inch)0.7874"
Connection Diameter (mm)20.00mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
ApplicationMicro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading
Insert Holding MethodScrew
MaterialSteel
Shank TypeStraight / Cylindrical
