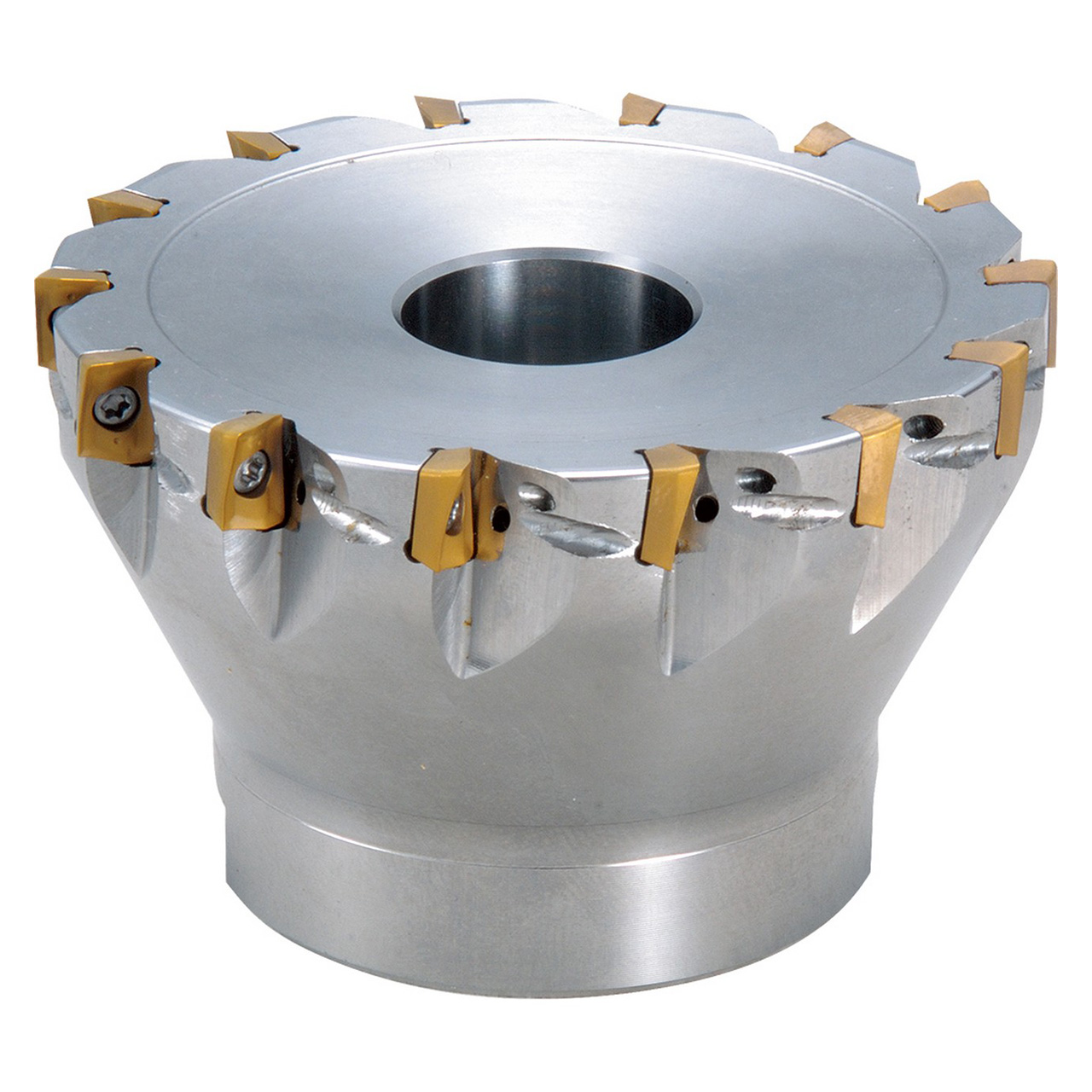

Kyocera Precision Tools THN03704 | MECX040R0710TM 1.5748" Diameter x 90 Degree Angle 10 Flute Steel Indexable Face Mill

$746.91 $619.94
(You save $126.97)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-37/64"
Cutting Diameter (Decimal Inch):
1.5748"
Cutting Diameter (mm):
40.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
55/64"
Arbor Hole Diameter (Decimal Inch):
0.8661"
Arbor Hole Diameter (mm):
22.00mm
Series:
MECX;Cutter Style=MECX"
Number of Cutter Inserts:
10
interval quantity:
1
SKU:
23233185
UPC:
Weight:
0.85 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Lead angle face mill
  • Application: shouldering, facing, slotting, helical milling
  • Extra-fine pitch increases machining efficiency with low cutting forces which make the MECX ideal for lower horsepower machines
  • Compatible with (10) BDMT0703ER-JT, BDMT0703ER-JS style inserts

Product Specifications
EDP NumberTHN03704
Maximum Depth of Cut (Decimal Inch)0.2362"
Cutting Diameter (Decimal Inch)1.5748"
Cutting Diameter (mm)40.00mm
Cutting Diameter Minimum (Decimal Inch)1.5748"
Cutting Diameter Minimum (mm)40.00mm
Cutting Diameter Maximum (Decimal Inch)1.5748"
Cutting Diameter Maximum (mm)40.00mm
Cutting Diameter Maximum (mm)0.8661"
Connection Bore Diameter (mm)22.00mm
Contact Surface Diameter Machine Side (Decimal Inch)1.4961"
Contact Surface Diameter Machine Side (mm)38.00mm
Tool Entering Angle ( Degree)1.0350 Degree
ApplicationFacing, Helical Milling, Shouldering, Slotting
Coolant Through (Yes/No)Yes
Cutter PitchStandard Pitch
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes10
Number of Inserts10
