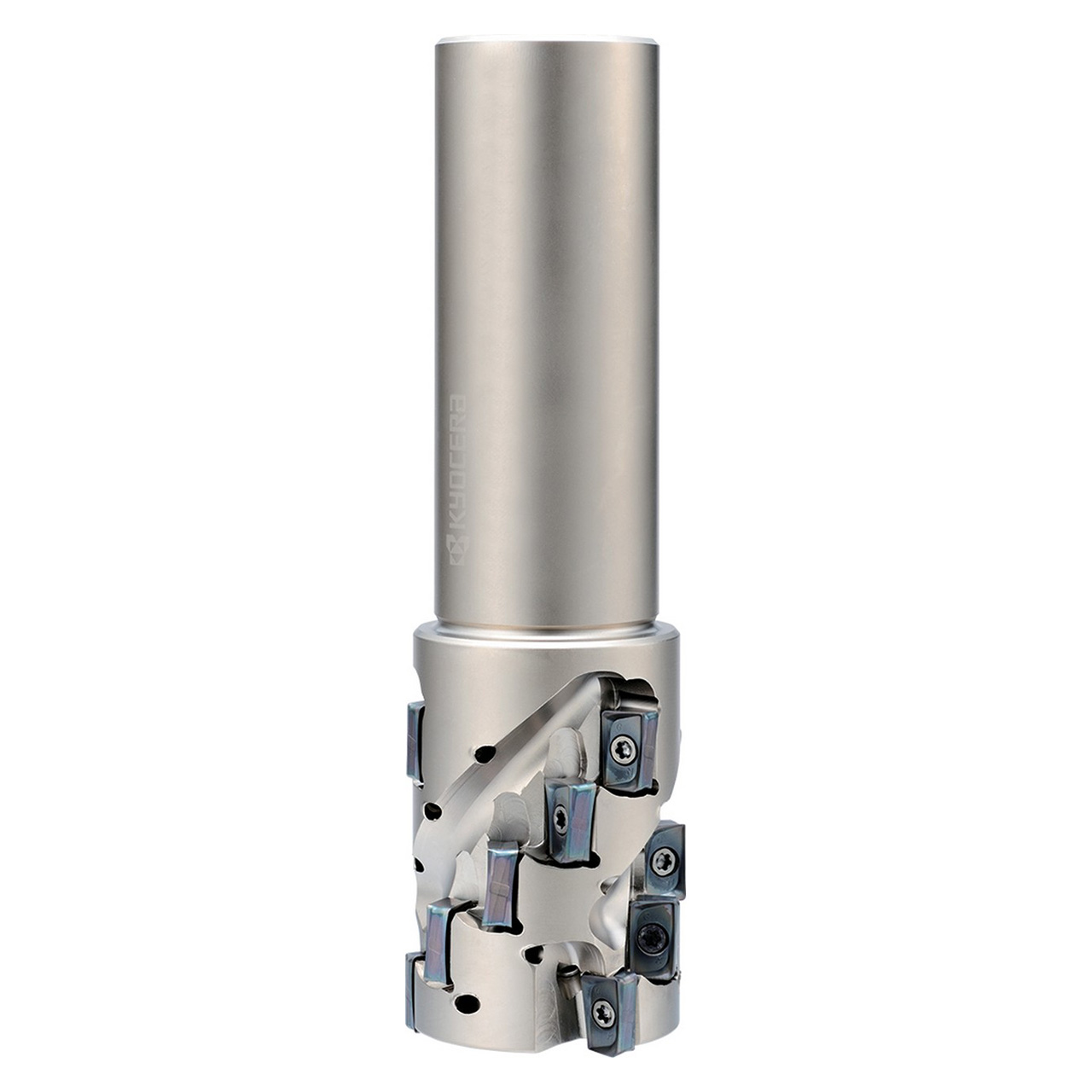

Kyocera Precision Tools THN04091 | MEWH1250W1251042T 1.2500" Diameter x 1.4567" Max Depth of Cut 2 Flute Steel Helical End Mill

$537.37
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (Decimal Inch):
31.75mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Lead Angle:
90°
Series:
MEW;Through Coolant=Yes"
SKU:
23233225
Weight:
1.87 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • 90 Degree Milling with double-sided 4-edge inserts
  • Low cutting forces with chatter resistance for excellent surface finish
  • Excellent surface finish and stable machining due to innovative toolholder design
  • Excellent chip evacuation
  • Compatible with: LOMU1004 style inserts

Product Specifications
EDP NumberTHN04091
Maximum Depth of Cut (Decimal Inch)1.4567"
Cutting Diameter (Decimal Inch)1.2500"
Cutting Diameter (mm)31.75mm
Cutting Diameter Minimum (Decimal Inch)1.2500"
Cutting Diameter Minimum (mm)31.75mm
Cutting Diameter Maximum (Decimal Inch)1.2500"
Cutting Diameter Maximum (mm)31.75mm
Connection Diameter (Decimal Inch)1.2500"
Connection Diameter (mm)31.75mm
Tool Entering Angle ( Degree)7.5591 Degree
ApplicationFacing | Shouldering | Slotting
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts8
Shank TypeStandard Length
Weldon FlatYes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
