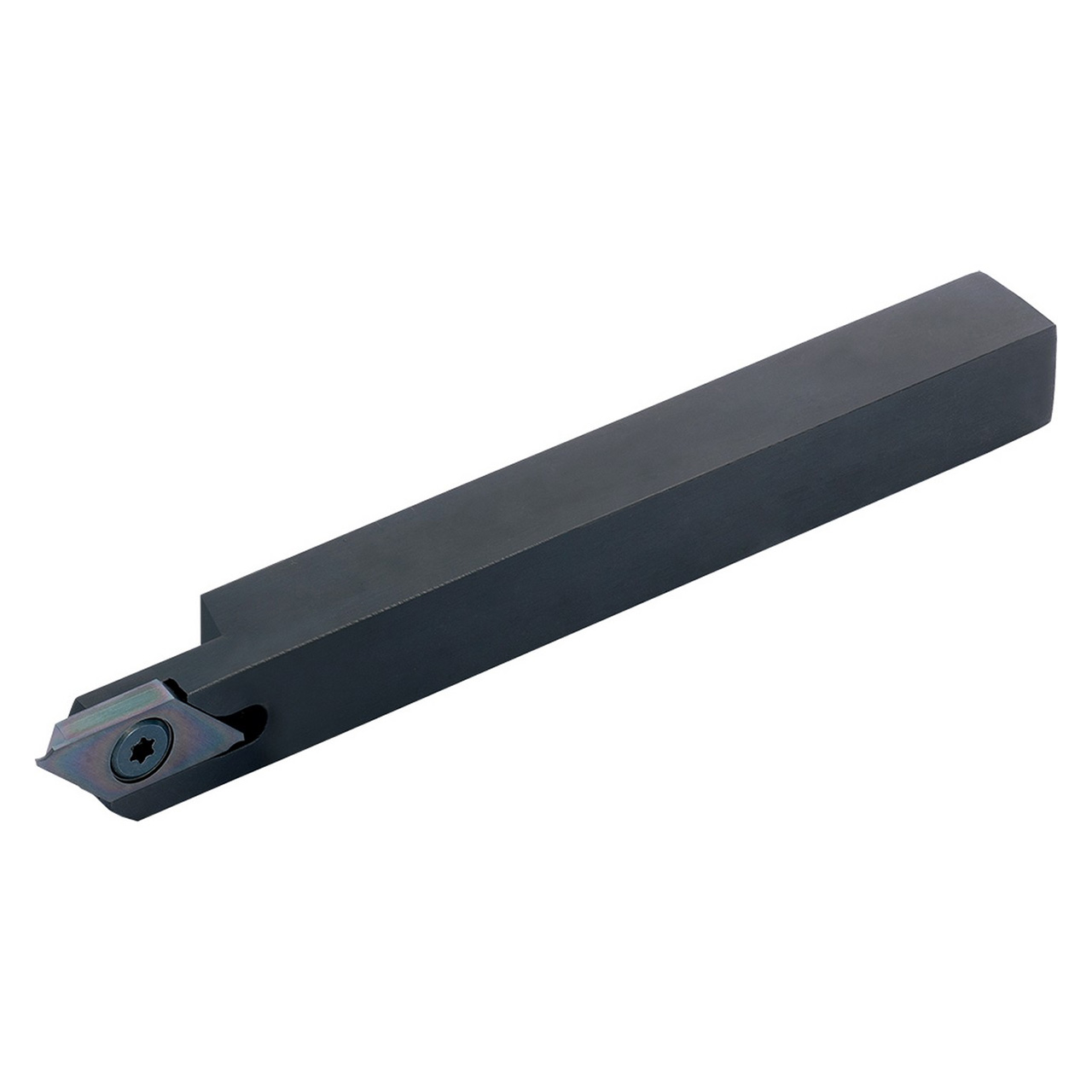

Kyocera Precision Tools THP06780 | KTKFR1212JX12SB 0.1969"-0.4724" Diameter x 0.2362" Max Depth of Cut x 0.4724" Shank Width Steel Cut-Off Toolholder

$138.63
Brand:
Kyocera Precision Tools
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6.00mm
Maximum Workpiece Diameter (Decimal Inch):
0.1969-0.4724"
Maximum Workpiece Diameter (mm):
5.00-12.00mm
Series:
KTKF;Toolholder Style=KTKF-S"
Shank Width/Diameter (Decimal Inch):
0.4724"
Shank Width/Diameter (mm):
12.00mm
Shank Height (Decimal Inch):
0.4724"
Shank Height (mm):
12.00mm
SKU:
23234272
Weight:
0.30 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand KTKF-S toolholder
  • Application : cut-off
  • Clamp screw insert holding design
  • Compatible with Right-Hand TKF12R inserts

Product Specifications
EDP NumberTHP06780
Maximum Depth of Cut (mm)8.00mm
Shank Width (mm)12.00mm
Max Depth of Cut (Decimal Inch)0.2362"
Max Depth of Cut (mm)6.00mm
Maximum Cut-Off Diameter (Decimal Inch)0.1969-0.4724"
Maximum Cut-Off Diameter (mm)5.00-12.00mm
Cutting Width (Decimal Inch)0.0197 - 0.0787"
Cutting Width (mm)0.50 - 2.00mm
Cutting Width Minimum (Decimal Inch)0.0197"
Cutting Width Minimum (mm)0.50mm
Cutting Width Maximum (Decimal Inch)0.0787"
Cutting Width Maximum (mm)2.00mm
Shank Height (Decimal Inch)0.4724"
Shank Height (mm)12.00mm
ApplicationCut-Off | Small Parts Machining
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
