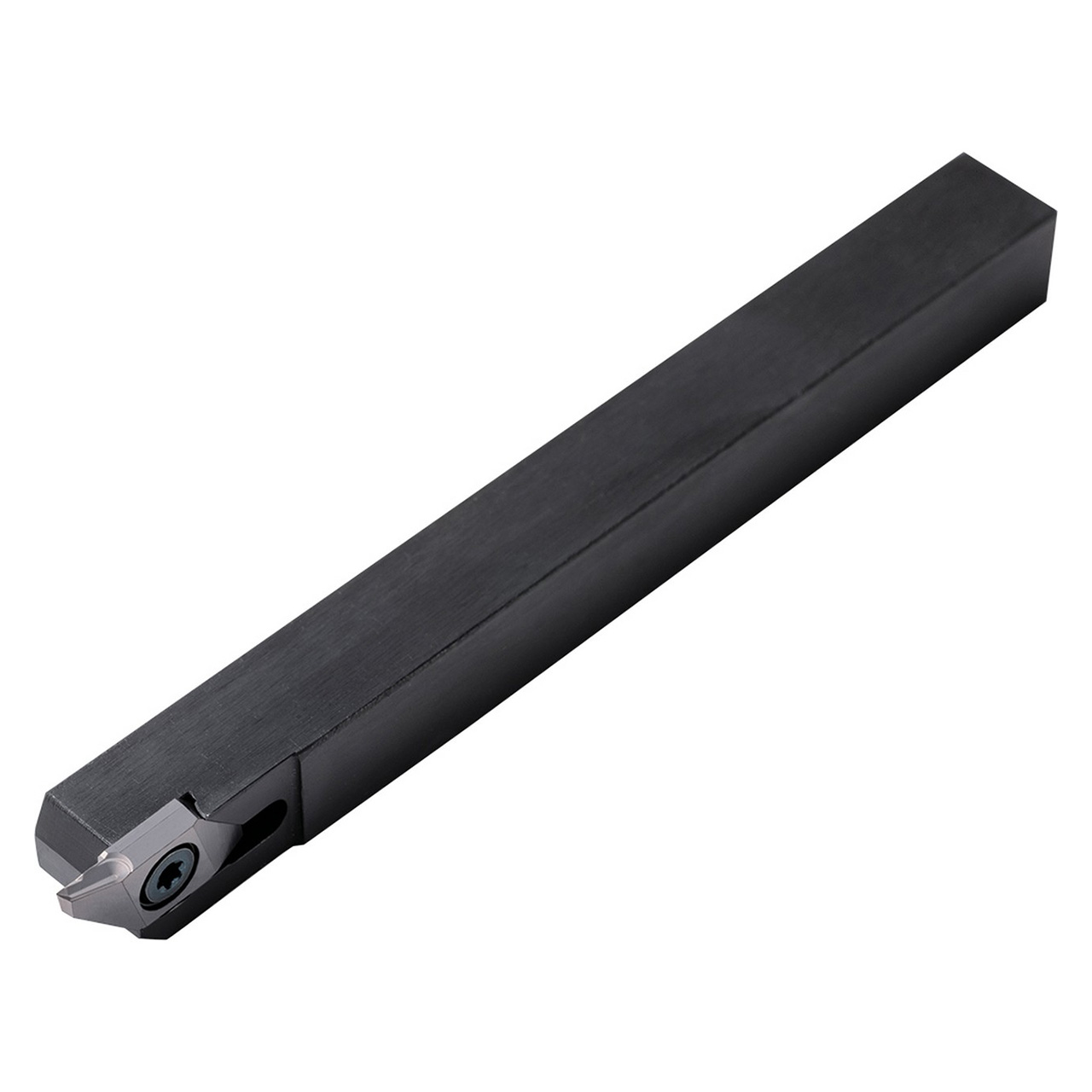

Kyocera Precision Tools THP01826 | KTKFR1212JX16 0.197"-0.472" Diameter x 0.315" Max Depth of Cut x 0.472" Shank Width Steel Cut-Off Toolholder

SKU: 23234201 Weight: 0.32 LBS Minimum Purchase: 1 unit
UPC:
$211.51 $175.55
(You save $35.96)
Shipping: Calculated at Checkout

About This Item

Features:

  • Right-Hand KTKF-JX toolholder
  • Application : cut-off, turning
  • Clamp screw insert holding design
  • Compatible with Right-Hand TKF16R inserts

Product Specifications
EDP NumberTHP01826
Maximum Depth of Cut (mm)10.00mm
Shank Width (mm)12.00mm
Max Depth of Cut (Decimal Inch)0.3150"
Max Depth of Cut (mm)8.00mm
Maximum Cut-Off Diameter (Decimal Inch)0.1969-0.4724"
Maximum Cut-Off Diameter (mm)5.00-12.00mm
Cutting Width (Decimal Inch)0.0197 - 0.0787"
Cutting Width (mm)0.50 - 2.00mm
Cutting Width Minimum (Decimal Inch)0.0197"
Cutting Width Minimum (mm)0.50mm
Cutting Width Maximum (Decimal Inch)0.0787"
Cutting Width Maximum (mm)2.00mm
Shank Height (Decimal Inch)0.4724"
Shank Height (mm)12.00mm
ApplicationBack Turning | Cut-Off | Small Parts Machining
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
