Features:

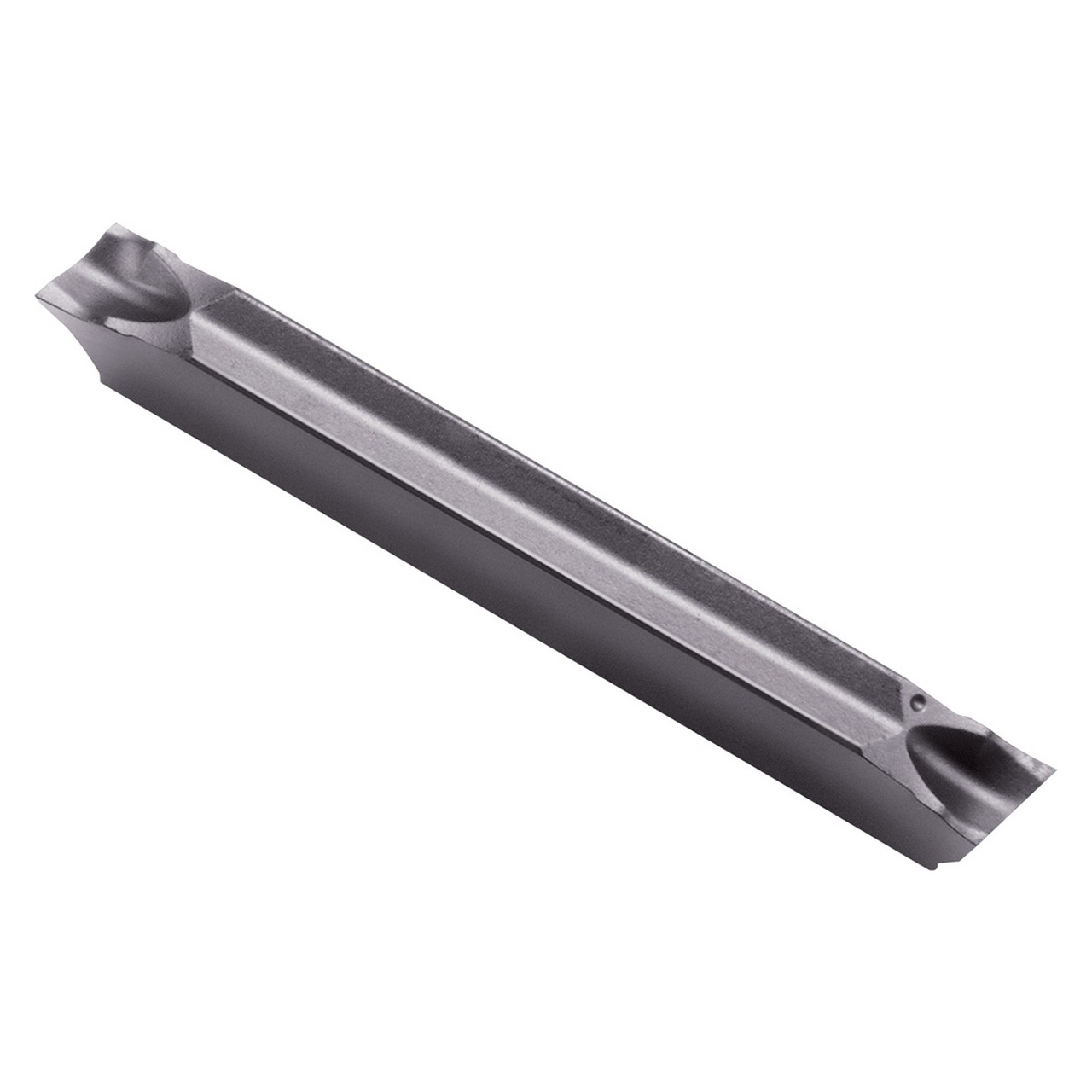

- Insert for Cut-Off for Small parts machining
- 15 Degree lead angle / Low feed / 2-edge
- 2 Cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate

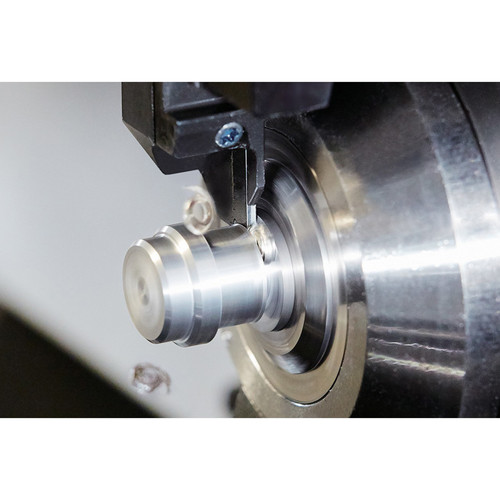

- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| Tool Number | TKE10413 |
| Cutting Width (Decimal Inch) | 0.0512" |
| Cutting Width (mm) | 1.30mm |
| Cutting Width Minimum (Decimal Inch) | 0.0512" |
| Cutting Width Minimum (mm) | 1.30mm |
| Cutting Width Maximum (Decimal Inch) | 0.0512" |
| Cutting Width Maximum (mm) | 1.30mm |
| Insert Length (Decimal Inch) | 0.6299" |
| Insert Length (mm) | 16.00mm |
| Corner Radius (Inch) | 0.001" |
| Corner Radius (mm) | 0.03mm |
| Thickness (Inch) | 0.146" |
| Thickness (mm) | 3.70mm |
| Application | Cut-Off | Small Parts Machining |
| Chipbreaker | PF |
| Coating Process | PVD |
| Cutting Range | Medium Roughing |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR1225 |
| Insert Size | 1316 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDM"
Insert Size:
1316
Lead Angle Direction:
Left-Hand
Cutting Width (Decimal Inch):
0.0512"
Cutting Width (mm):
1.30mm
Manufacturer's Grade:
PR1225
Series:
KGD
