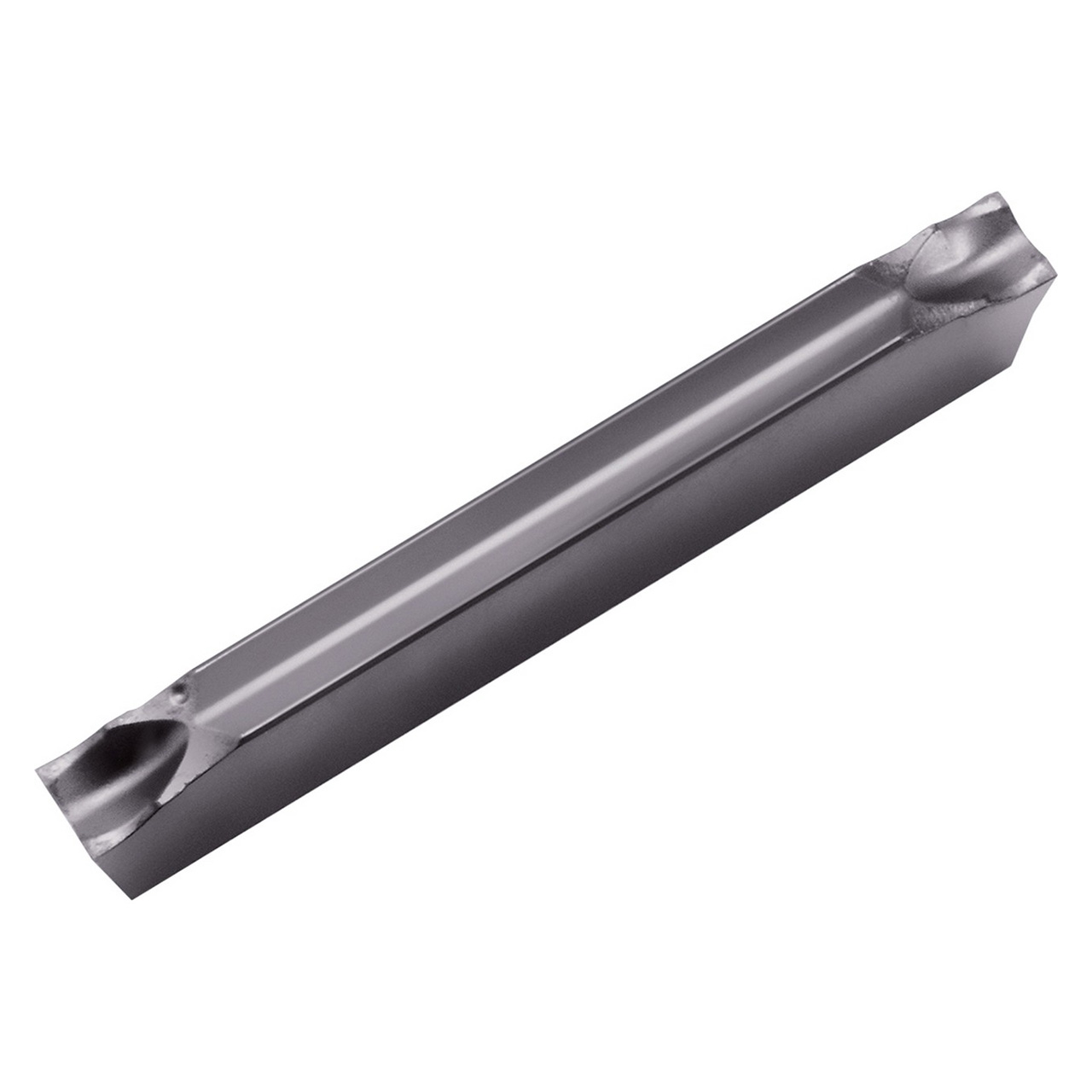

Kyocera Precision Tools TKE10415 | GDM1316N015PF PR1225 0.051" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert

Kyocera Precision Tools TKE10415 | GDM1316N015PF PR1225 0.051" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert

Name: Kyocera Precision Tools TKE10415 | GDM1316N015PF PR1225 0.051" Cutting Width x 0.146" Thickness PVD Coated Carbide Cut-Off Insert
Brand: Kyocera Precision Tools
SKU: 23238138
Availability: InStock

SKU: 23238138 Weight: 0.05 LBS Minimum Purchase: 10 unit

UPC:

$37.02 $21.47

(You save $15.55)

Total Price: $21.47

Quantity:

Shipping: Calculated at Checkout

About This Item

Features:

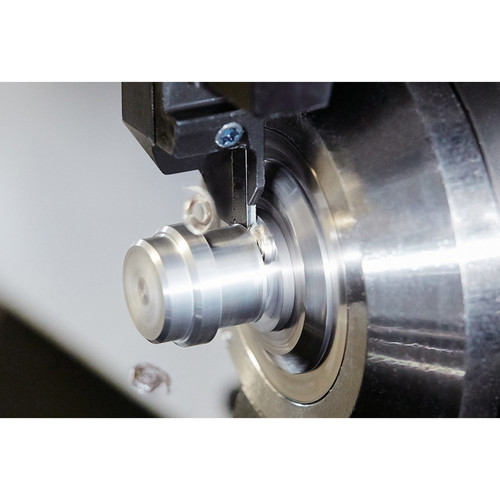

Insert for Cut-Off for Small parts machining
Low feed / 2-edge
2 Cutting edges
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications

Tool Number	TKE10415
Cutting Width (Decimal Inch)	0.0512"
Cutting Width (mm)	1.30mm
Cutting Width Minimum (Decimal Inch)	0.0512"
Cutting Width Minimum (mm)	1.30mm
Cutting Width Maximum (Decimal Inch)	0.0512"
Cutting Width Maximum (mm)	1.30mm
Insert Length (Decimal Inch)	0.6299"
Insert Length (mm)	16.00mm
Corner Radius (Inch)	0.006"
Corner Radius (mm)	0.15mm
Thickness (Inch)	0.146"
Thickness (mm)	3.70mm
Application	Cut-Off \| Small Parts Machining
Chipbreaker	PF
Coating Process	PVD
Cutting Range	Medium Roughing
Hand	Neutral
Insert Holding Method	Clamp
Insert Grade	PR1225
Insert Size	1316
Material	Carbide
Number of Cutting Edges	2
Primary Workpiece Material	Steel (P)
Usage Classification	Light Interruption
