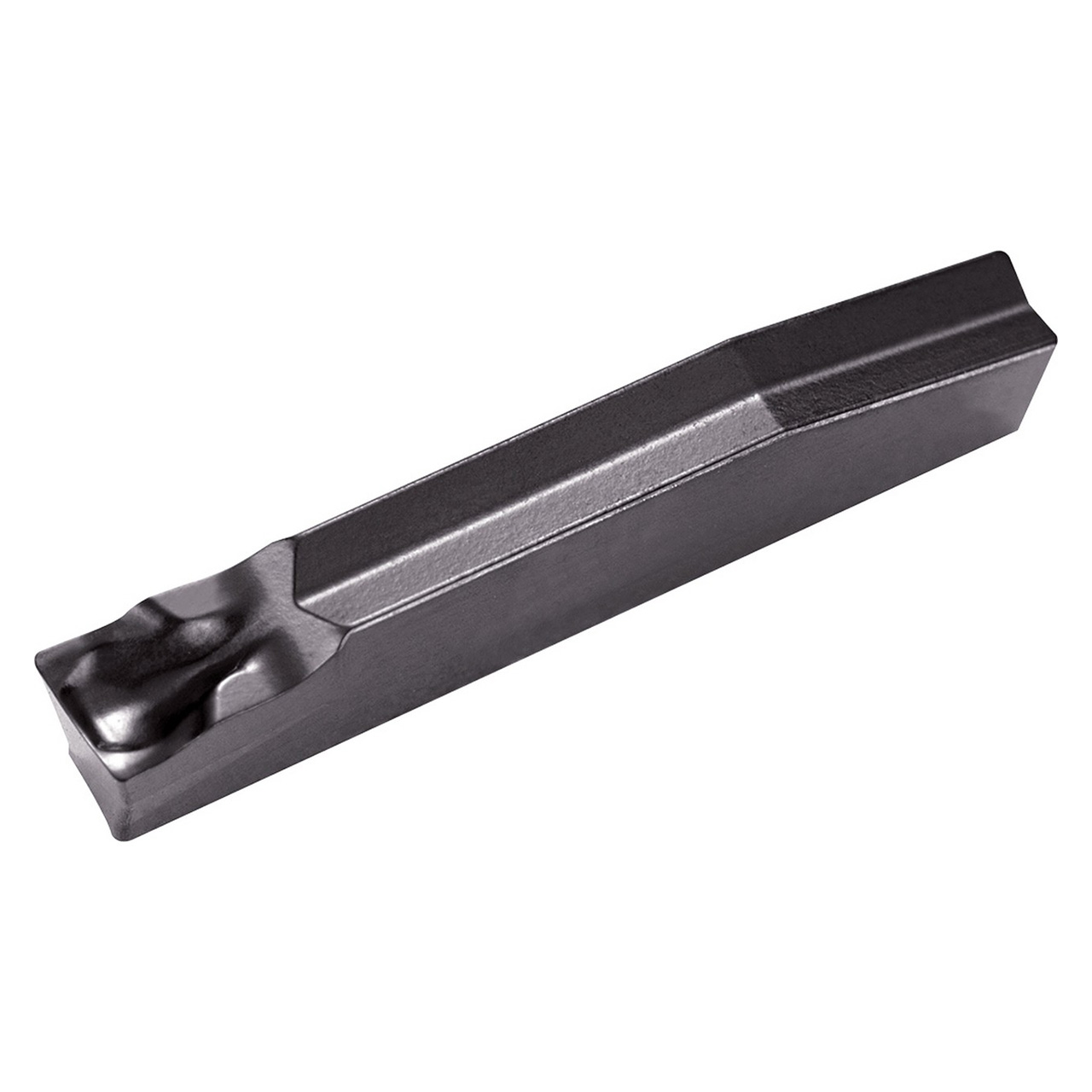

Kyocera Precision Tools TKH10587 | GDMS3020R025PM6D PR1215 0.1181" Cutting Width x 0.169" Thickness PVD Coated Carbide Cut-Off Insert

$12.61
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=GDMS"
Insert Size:
3020
Lead Angle Direction:
Right-Hand
Cutting Width (Decimal Inch):
0.1181"
Cutting Width (mm):
3.00mm
Manufacturer's Grade:
PR1215
Series:
KGD
SKU:
23238672
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off
  • 6 Degree lead angle / 1-edge
  • 1 Cutting edge
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Application: Superior adhesion resistance and longer tool life for steel and stainless steel machining

Product Specifications
Tool NumberTKH10587
Cutting Width (Decimal Inch)0.1181"
Cutting Width (mm)3.00mm
Cutting Width Minimum (Decimal Inch)0.1181"
Cutting Width Minimum (mm)3.00mm
Cutting Width Maximum (Decimal Inch)0.1181"
Cutting Width Maximum (mm)3.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.010"
Corner Radius (mm)0.25mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationCut-Off
ChipbreakerPM
Coating ProcessPVD
Cutting RangeMedium
HandRight Hand
Insert Holding MethodClamp
Insert GradePR1215
Insert Size3020
MaterialCarbide
Number of Cutting Edges1
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
