Features:
| Tool Number | TKH10912 |
| Cutting Width (Decimal Inch) | 0.1181" |
| Cutting Width (mm) | 3.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1181" |
| Cutting Width Minimum (mm) | 3.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1181" |
| Cutting Width Maximum (mm) | 3.00mm |
| Insert Length (Decimal Inch) | 0.7874" |
| Insert Length (mm) | 20.00mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 0.169" |
| Thickness (mm) | 4.30mm |

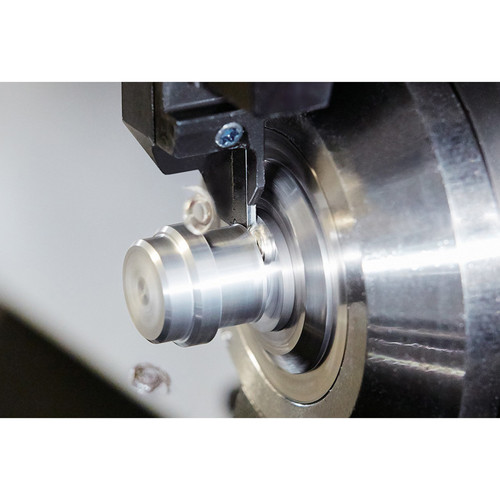

| Application | Cut-Off | Small Parts Machining |
| Chipbreaker | PQ |
| Coating Process | PVD |
| Cutting Range | Medium |
| Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Grade | PR1215 |
| Insert Size | 3020 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
